Pgm German Quality Tct Universal Drill Bit Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 600mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.：3075
- Carbide Tip Type：Ceratizit Bc05
- Steel Shaft Type：40cr
- Flute Type：H
- Cutting Head：Diamond Ground 4face Edges
- Marking：Laser Marking
- Surface Treatment：Copper Coated Flute & Polished Surface
- Shank Type：DIN6.35e(1,4 Quick Change Hex Shank)
- Welding Type：AVS.(Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：3mm to 16mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3075 Carbide Tip Type Ceratizit Bc05 Steel Shaft Type 40cr Flute Type H Cutting Head Diamond Ground 4face Edges Marking Laser Marking Surface Treatment Copper Coated Flute & Polished Surface Shank Type DIN6.35e(1/4 Quick Change Hex Shank) Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

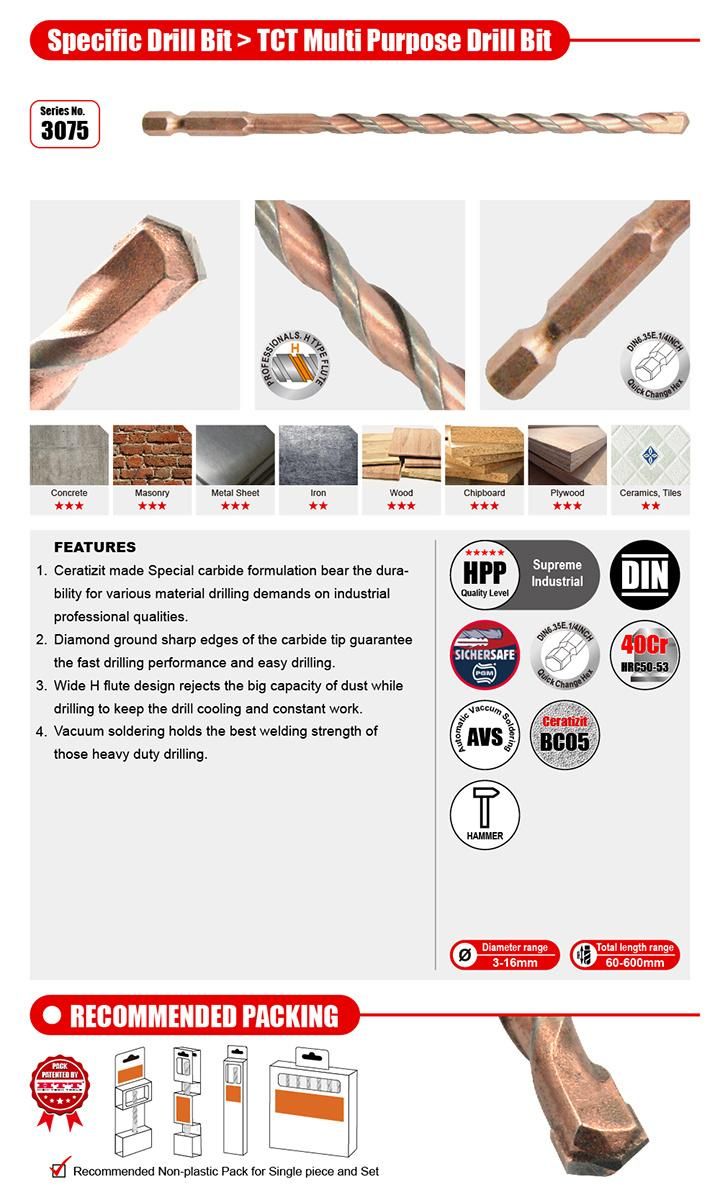

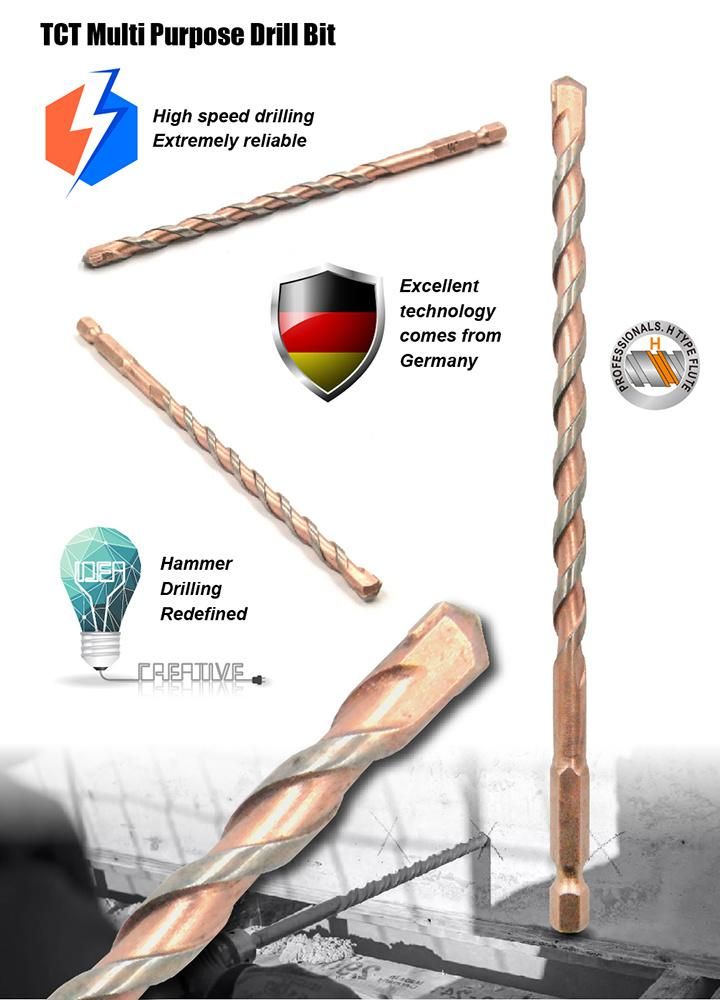

*TCT All purpose Drill Bit with DIN6.35E quick-change hex shank, color fluted, and polished roundness for multipurpose drilling symbol, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.
*Carbide tips are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.
*H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
*1PC structure of quick-change drill bit, not attached hex shank to guarantee the Lower vibration for an easy longer-time drilling job and max. torque strength.
*DIN6.35E (1/4 quick-change hex) shank design avoids the chuck slipping on the drill shank and guarantees the best torque while drilling stones. It fits all of those DIN6.35E quick-change connectors and chucks of those power drills.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 3075.030060 | 3 | 25 | 60 |
| 3075.030070 | 3 | 30 | 70 |
| 3075.030085 | 3 | 40 | 85 |
| 3075.030090 | 3 | 50 | 90 |
| 3075.030095 | 3 | 50 | 95 |
| 3075.030100 | 3 | 50 | 100 |
| 3075.030152 | 3 | 100 | 152 |
| 3075.035060 | 3.5 | 25 | 60 |
| 3075.035070 | 3.5 | 30 | 70 |
| 3075.035085 | 3.5 | 40 | 85 |
| 3075.040075 | 4 | 30 | 75 |
| 3075.040085 | 4 | 40 | 85 |
| 3075.040090 | 4 | 50 | 90 |
| 3075.040100 | 4 | 60 | 100 |
| 3075.040105 | 4 | 60 | 105 |
| 3075.040150 | 4 | 110 | 150 |
| 3075.040180 | 4 | 130 | 180 |
| 3075.045085 | 4.5 | 40 | 85 |
| 3075.045090 | 4.5 | 45 | 90 |
| 3075.045150 | 4.5 | 110 | 150 |
| 3075.050085 | 5 | 40 | 85 |
| 3075.050090 | 5 | 45 | 90 |
| 3075.050095 | 5 | 50 | 95 |
| 3075.050100 | 5 | 60 | 100 |
| 3075.050105 | 5 | 60 | 105 |
| 3075.050150 | 5 | 110 | 150 |
| 3075.050180 | 5 | 130 | 180 |
| 3075.050250 | 5 | 200 | 250 |
| 3075.050300 | 5 | 250 | 300 |
| 3075.050400 | 5 | 260 | 400 |
| 3075.050500 | 5 | 360 | 500 |
| 3075.055085 | 5.5 | 40 | 85 |
| 3075.055090 | 5.5 | 50 | 90 |
| 3075.055095 | 5.5 | 50 | 95 |
| 3075.055100 | 5.5 | 60 | 100 |
| 3075.055150 | 5.5 | 110 | 150 |
| 3075.060085 | 6 | 40 | 85 |
| 3075.060090 | 6 | 50 | 90 |
| 3075.060100 | 6 | 60 | 100 |
| 3075.060115 | 6 | 65 | 115 |
| 3075.060150 | 6 | 110 | 150 |
| 3075.060200 | 6 | 130 | 200 |
| 3075.060250 | 6 | 180 | 250 |
| 3075.060300 | 6 | 230 | 300 |
| 3075.060400 | 6 | 340 | 400 |
| 3075.060600 | 6 | 460 | 600 |
| 3075.065100 | 6.5 | 60 | 100 |
| 3075.065115 | 6.5 | 65 | 115 |
| 3075.065150 | 6.5 | 110 | 150 |
| 3075.065200 | 6.5 | 130 | 200 |
| 3075.065250 | 6.5 | 180 | 250 |
| 3075.065300 | 6.5 | 230 | 300 |
| 3075.065400 | 6.5 | 340 | 400 |
| 3075.070090 | 7 | 50 | 90 |
| 3075.070100 | 7 | 60 | 100 |
| 3075.070120 | 7 | 80 | 120 |
| 3075.070150 | 7 | 110 | 150 |
| 3075.070300 | 7 | 230 | 300 |
| 3075.070400 | 7 | 340 | 400 |
| 3075.070500 | 7 | 360 | 500 |
| 3075.080100 | 8 | 60 | 100 |
| 3075.080120 | 8 | 80 | 120 |
| 3075.080125 | 8 | 80 | 125 |
| 3075.080150 | 8 | 110 | 150 |
| 3075.080200 | 8 | 130 | 200 |
| 3075.080260 | 8 | 190 | 260 |
| 3075.080300 | 8 | 230 | 300 |
| 3075.080400 | 8 | 340 | 400 |
| 3075.080600 | 8 | 460 | 600 |
| 3075.090120 | 9 | 80 | 120 |
| 3075.090150 | 9 | 110 | 150 |
| 3075.095120 | 9.5 | 80 | 120 |
| 3075.095150 | 9.5 | 110 | 150 |
| 3075.100120 | 10 | 80 | 120 |
| 3075.100150 | 10 | 110 | 150 |
| 3075.100200 | 10 | 135 | 200 |
| 3075.100260 | 10 | 190 | 260 |
| 3075.100300 | 10 | 230 | 300 |
| 3075.100400 | 10 | 340 | 400 |
| 3075.100600 | 10 | 460 | 600 |
| 3075.110120 | 11 | 80 | 120 |
| 3075.110150 | 11 | 110 | 150 |
| 3075.120130 | 12 | 80 | 130 |
| 3075.120150 | 12 | 90 | 150 |
| 3075.120200 | 12 | 150 | 200 |
| 3075.120260 | 12 | 150 | 260 |
| 3075.120300 | 12 | 230 | 300 |
| 3075.120400 | 12 | 340 | 400 |
| 3075.120600 | 12 | 460 | 600 |
| 3075.130130 | 13 | 80 | 130 |
| 3075.130160 | 13 | 90 | 150 |
| 3075.140150 | 14 | 90 | 150 |
| 3075.140200 | 14 | 135 | 200 |
| 3075.140260 | 14 | 200 | 260 |
| 3075.140300 | 14 | 230 | 300 |
| 3075.140400 | 14 | 340 | 400 |
| 3075.140600 | 14 | 460 | 600 |
| 3075.160150 | 16 | 90 | 150 |
| 3075.160200 | 16 | 135 | 200 |
| 3075.160250 | 16 | 200 | 260 |
| 3075.160300 | 16 | 230 | 300 |
| 3075.160400 | 16 | 340 | 400 |
| 3075.160600 | 16 | 460 | 600 |
