HSS Drills Jobber Drill HSS Spot Weld Twist Drill Bit for Metal Drilling (SED-HSW)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HSW
  • Dia Size：1mm-20mm
  • Manufacturing Art：Fully Ground or Forged
  • Min Quantity：1000PCS,Size
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Bright White
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product NameHigh Speed Steel Spot Weld Drill Bits for MetalMaterialHigh Speed Steel (M35 Cobalt,Tungsten Carbide are Available)ProcessFully Ground Flute Type

2 Flute (3 Flute is Available)

Shank Type

Stright Shank(One Flat Shank is Available)

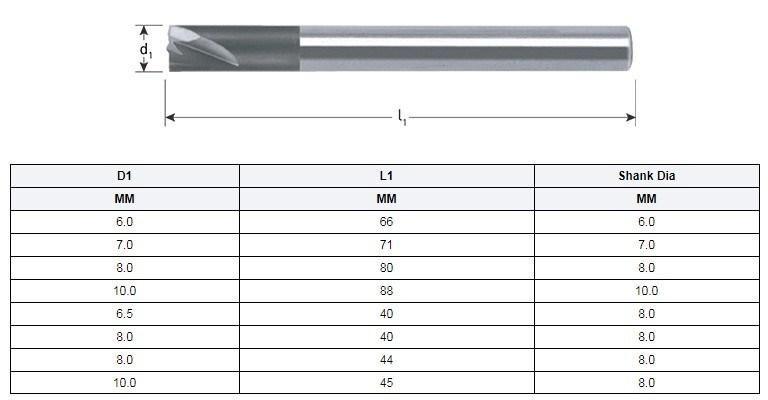

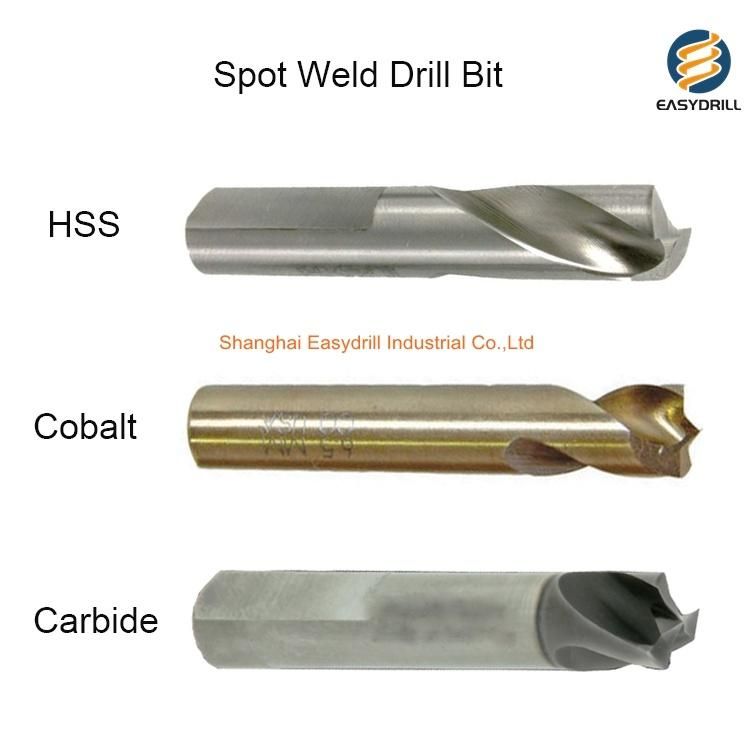

SurfaceWhite(Amber,TiAlN Coated ,Tin-Coated are Available)Size6.0-10.0MMPackagePlastic Tube,Blister Card,Plastic Box are AvailableFeatures1.Spot-weld drills are primarily used for the removal of spot welds. The  Spot-weld drill bit is made from High Speed Steel and Cobalt (HSS-Co), TiN Coated or Carbide. The drills are available with or without flats
2.The flat shaft is made for a sure grip and special centering nib design avoids slipping
3.Precise nibbed pilot tip design increases accuracy and prevents slipping when held down for marking purposes
4.Special grade high speed steel cobalt mix is designed for long service life to withstand quick speed running rate
5.Drill bits are made from a high speed cobalt blend that makes it a great option for drilling into harder steel materials
