Long Shank 82 Degree 3 Flutes Carbide Steel Countersink Drill Tool Bit for Metal (SED-CS3F-LS)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Countersink Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-CS3F-LS
  • Dia Size：1,2 Inch, 5,8 Inch, 3,4 Inch
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS,Size
  • Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Original
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

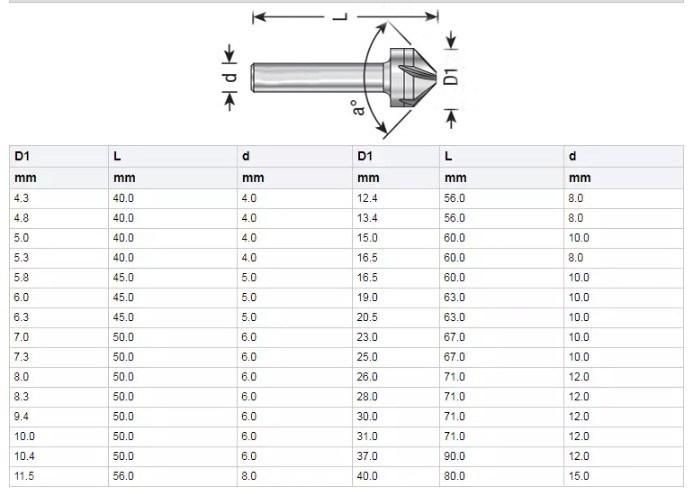

Product NameCylindrical Shank 82 Degree 3 Flute Carbide Steel Countersink  Drill Tool Bit  for  Metal DeburringSize4.3MM-40MMMaterialCarbide Steel      (High Speed Steel , Cobalt5%-M35 , Carbon Steel  are Available)Flute Type

3 Flute      (5 Flute, Single Flute, 0 Flute,  6 Flute, 7 Flute, Multi Flute are Available)

Cutting Angle82°        (90°, 120°, 60 °  are Available)Shank TypeRound Shank       (Hex Shank, Taper Shank,  Tri-Flat Shank, Weldon Shank, Long Shank are Available)Surface FinishWhite        (Black and White, Tin-Coated, Black, Black and Yellow are Available)Package1 Piece in One Plastic Box       (Double Blister Card is Available)Features

1. Three-flute designed to reduce clogging, improve clearance and be chatter free

2.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.

3.Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications.

4.Round shanks allow use with a wide variety of toolholding systems.

5.Made from industrial grade High-Speed Steel for increased durability.

6.Ideal for wooden planks,fiberboard,particle board,plywood,plastic,alumiumn board ,pcb board and more
