Titanium Coated HSS Drills HSS Double Ends Drill Bit for Stainless Steel Metal Aluminium PVC Iron Sheet Drilling (SED-HDET)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HDET
  • Dia Size：3.0mm-12mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：200000PCS,Size
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Flute：Spiral Flutes
  • Angle：135 or 118 Degree
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product Name DIN338 Jobber Length Titanium Coated HSS Double End Drill BitMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polished, Rolled, Milled are Available)Standard

 Double Ended             (DIN338, Stub DIN1897, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank,

                                       Blacksmith Reduced Shank 10mm, 13mm are Available)

                                      (Jobber Length, Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                                      Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

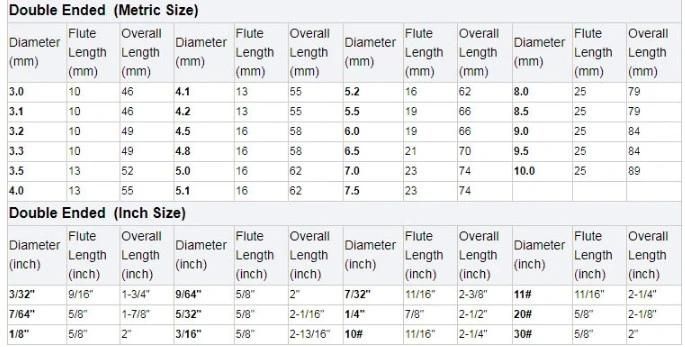

Size 3-5.2mm, 7/64"-1/4", 10#, 20#, 30#Point Type 118 Degree Regular Point    (135 Degree Split Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank     (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N    (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute    (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Titanium    (Bright, Black Oxide, Amber Color, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

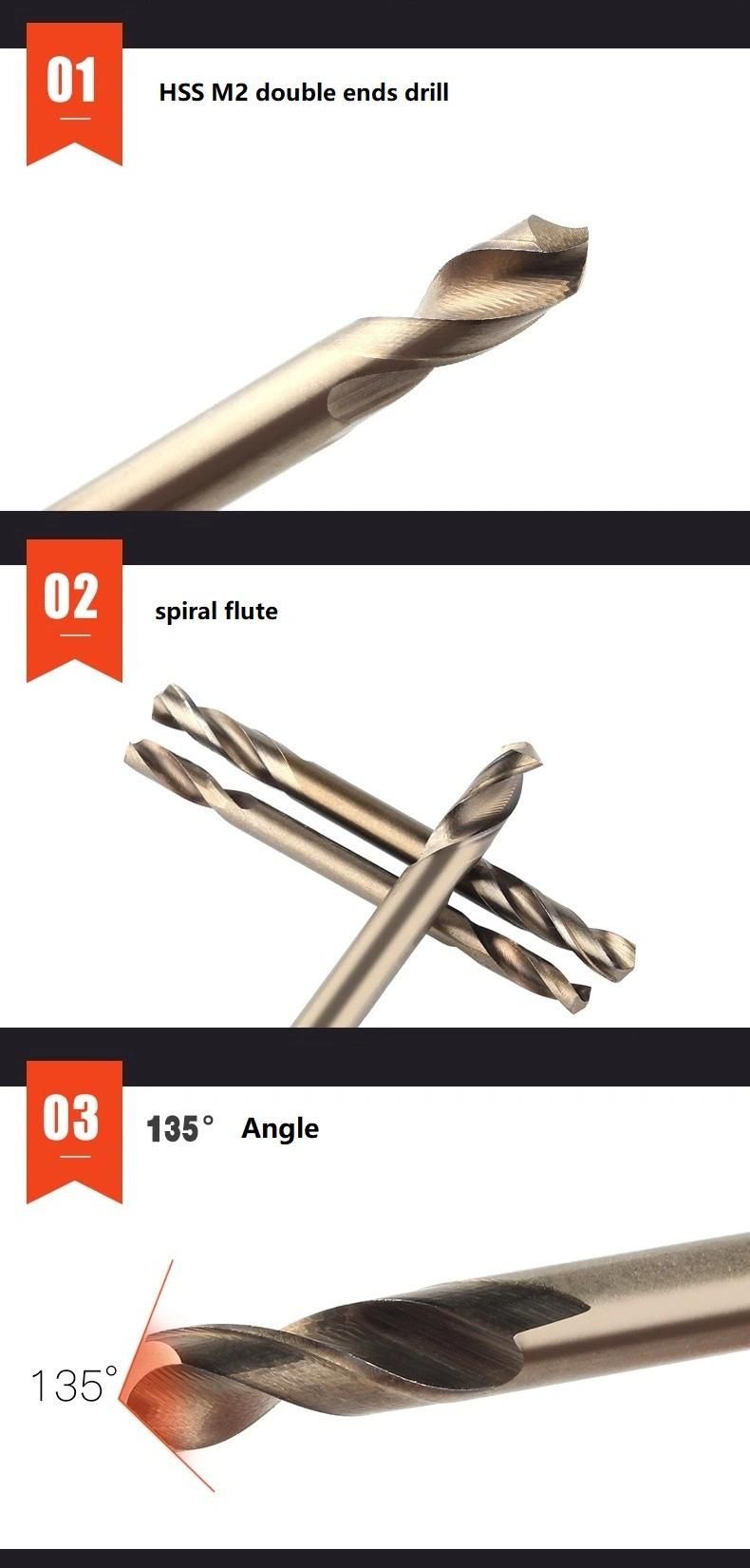

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.
