DIN333 Type a Tin Coated HSS Cobalt Center Drill Bit for Center Drilling (SED-CDA)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-CDA
  • Dia Size：1mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS
  • Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Tin Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

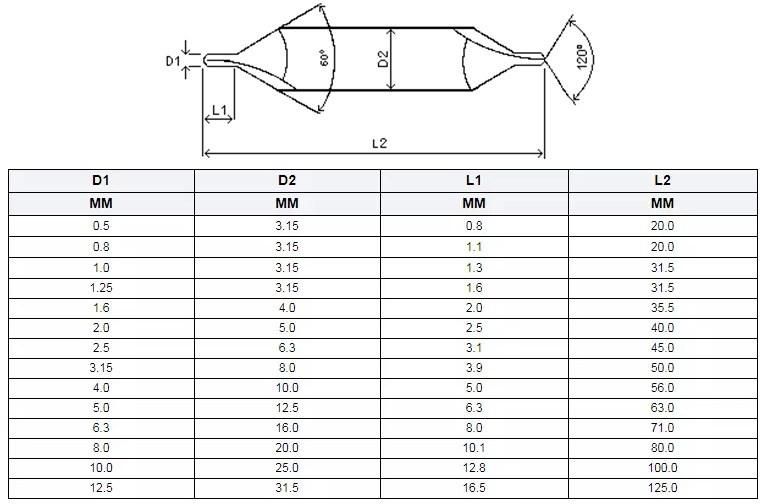

Procuct NameDIN333 Type A HSS Cobalt Center Drill Bit for Centre DrillingMaterialCo5%-M35(HSS4241,4341,6542,Carbide are Available)Process Fully Ground Flute

Straight Flutes(2 Flute is Available)

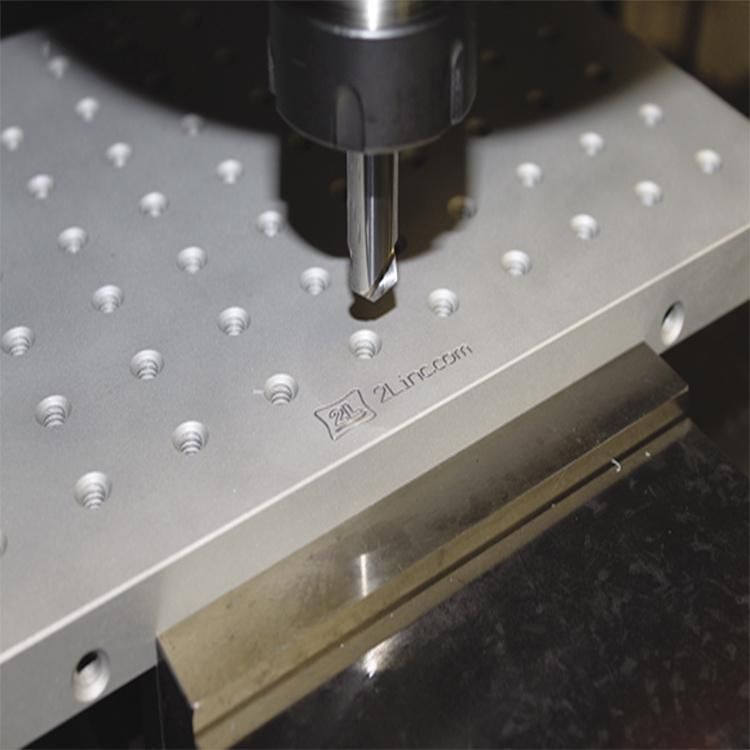

SurfaceAmber(Bright Finishing,Tin-coated,AlTiN coated  are Available)Size0.5MM-12.5MMStandardDIN333A(DIN333B,DIN333R,Extra Long,GOST 14952-75 are Available)Features1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Manufactured from M35 cobalt steel,for much faster cutting and extra longer life span when compared with an average HSS drill bit.
6.60 degree countersink angle fits all standard centers
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
