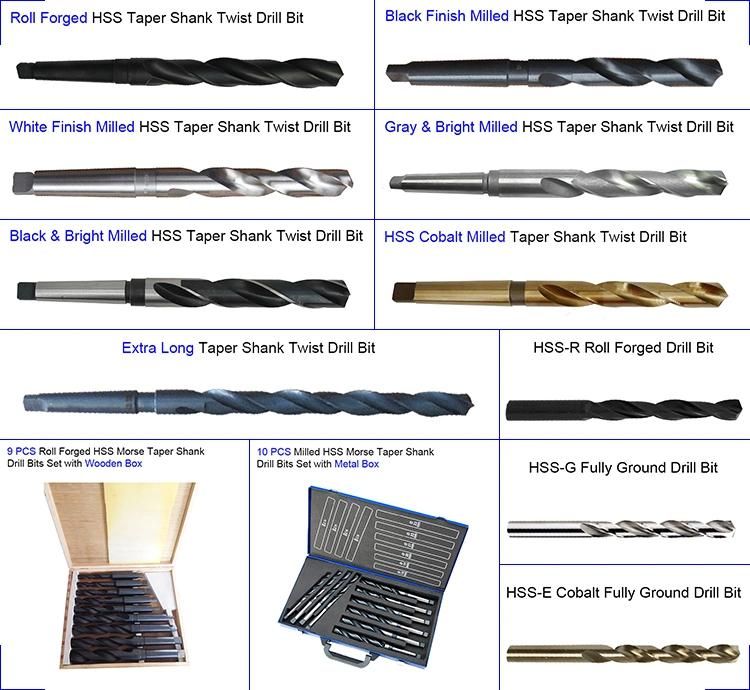

9 PCS DIN345 HSS Drills Roll Forged HSS Morse Taper Shank Drill Bit Set for Metal Drilling (SED-HTS9)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Taper-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTS9
  • Shank：Taper Shank
  • Manufacturing Art：Roll Forged
  • Surface Finish：Black
  • Angle：135 or 118
  • Min Qty：200sets
  • Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
  • Specification：SGS
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000PCS,Month

Description

Procuct Name9 Pcs DIN345 Roll Forged Morse Taper Shank Drill Bits Set for Metal DrillingMaterialHSS 4241 4341 6542-M2  (Cobalt 5% M35 is Available)ProcessRoll Forged (Milled is Available)Standard

DIN345  (ANSI, DIN341, DIN1870 are Also Available)

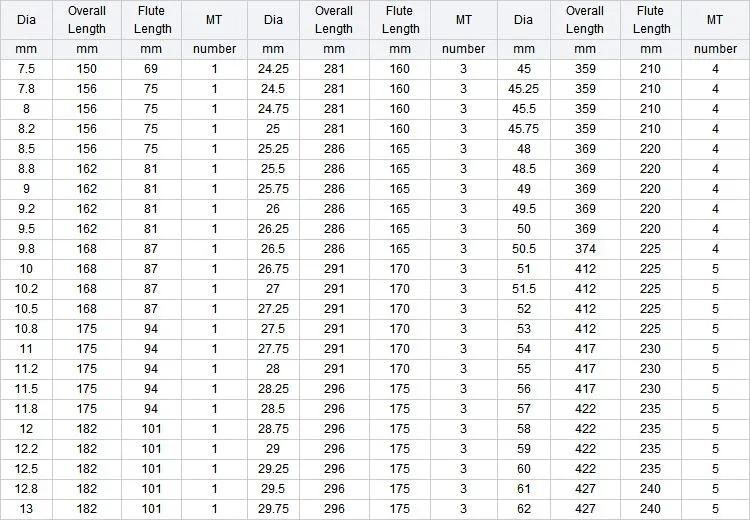

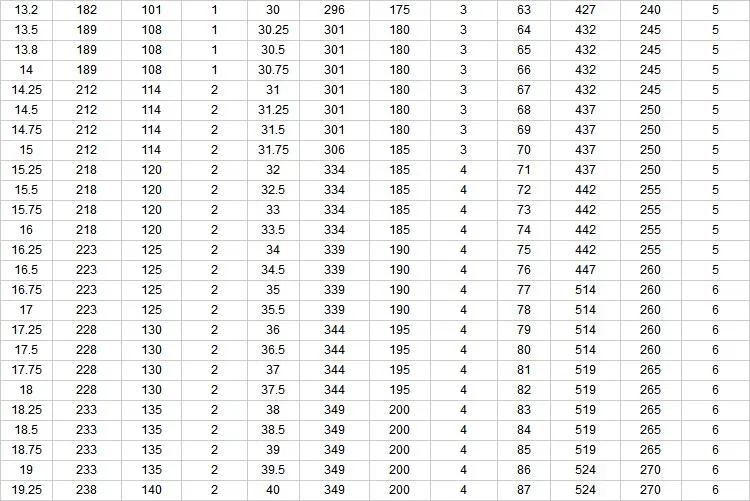

Size14.5, 16, 18, 20, 22, 24, 26, 28, 30mm or as Your RequirementFlute TypeType N, Right Hand CuttingPoint Angle118 Degree (135 Degree Split Point, Thinning Point are Also Available)Surface FinishBlack Oxide (Black & White, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available)Package9 Pieces In One Wood BoxFeatures

1,Precise dimension,long life and high efficiency.

2,High-speed steel (HSS) provides hardness for wear resistance

3,Black oxide finish reduces wear while promoting chip and coolant flow on ferrous materials

4,Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge

5,Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters

6,When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

7,Designed to perform in a broad range of materials in the iron and steel families

8,Spiral flutes are constructed with a higher flute angle to remove chips more easily.

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
