• Model NO.：1308
• Name：PDC for Oil Drilling Industry
• Certificate：ISO9001
• Factory：Hongxiang
• Factory History：26 Years
• Factory Address：Shangqiu, China
• Transport Package：Plastic
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. 1308 Name PDC for Oil Drilling Industry Certificate ISO9001 Factory Hongxiang Factory History 26 Years Factory Address Shangqiu, China Transport Package Plastic Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

Introduction
PDC bits uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC.
It has a long useful life, high-efficiency, and good cost performance.
PDC bit is mainly used for drilling soft and big drainage.

Specifications
1)Size from 75mm to 450mm
2)Super quality and competitive price
3)Meet the needs of the new and old customers
Main products:

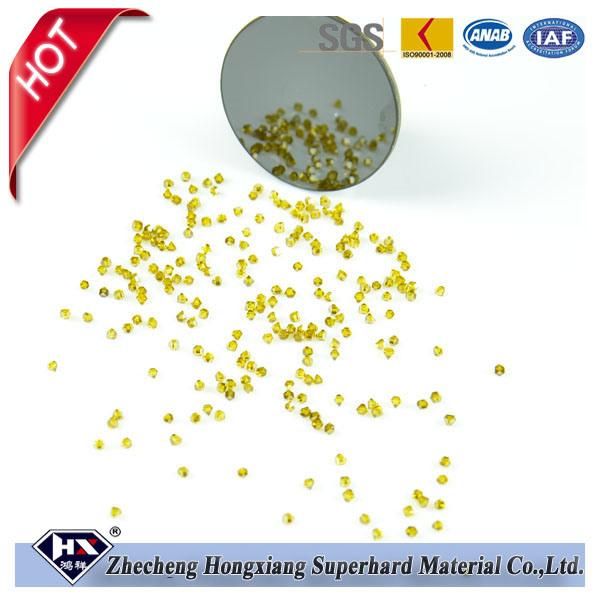

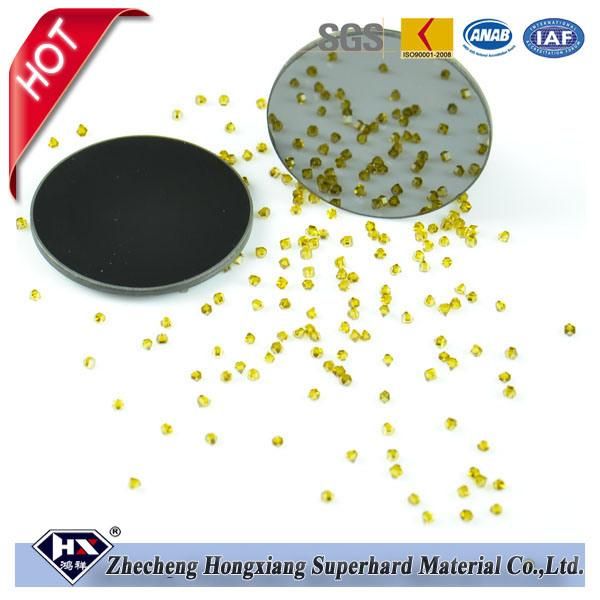

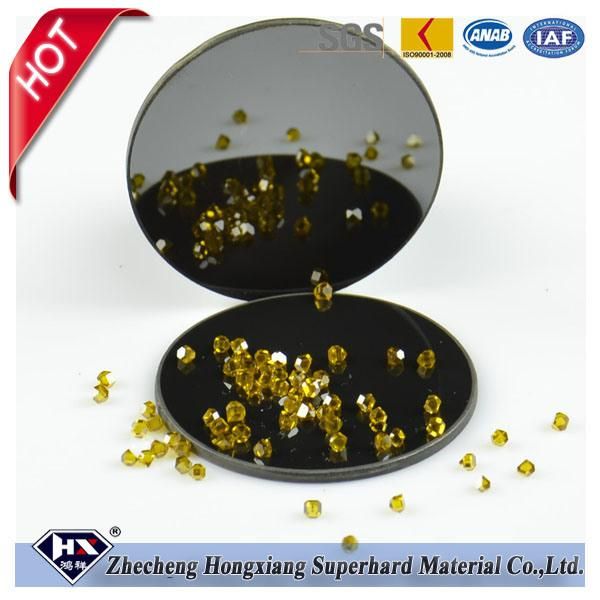

1. Synthetic diamond and diamond powder
2. In 2000, creative product: Diamond drill bit, diamond wheel, diamond finger bit etc glass tools. The product is fit for kinds of glass machine, barristerial machine and numerical control machine etc.
3. In 2008, research and development product, Mainly include diamond saw blade, diamond core bit, diamond abrasive fickert etc stone and ceramices tools.
4. In 2011, self-develop PCD, PDC, etc oil and cutting tools products, which mainly used for oil drilling, coal drilling and geological exploration etc.

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10



Key words	PDC cutter , Polycrystalline diamond compact cutter , Oil drilling bit part PDC
Diameter	6mm - 20mm
Thickenss	3mm - 20mm
Diamond Thickness	2.5mm , 1.0mm , 1.5mm , 2.0mm , 2.3mm
Application	For oil drilling bit ; For coal drilling bit ; For stone cutting ; For mining drilling bit ;
Standard Tolerance	0.001mm
Bond	Cobalt based
Grit	1um  - 3um - 5um - 10um - 25um - 50um
Temperature resistant	650 degree
Quality Guarantee	Quality problem , we will exchange new one for you .
Note	1.Mount at temperautres not exceeding 650 degree .                                                2.Maximu recommend bearing diameter for "soft" nonferrous wire .  " Hard " wire diameter normally should not exceed 65% of this diameter .
Packing	plastic bag & carton ; plastic box .
Shipping ways	TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING
Shipping time	5-7 work days
Payment terms	100% prepayment by T/T , western union , Paypal , Credit
Contact Person	Ms.Belinda
Factoty	ZHECHENG HONGXIANG
Website	hnhongxiang.en.made-in-china.com
Factory address	Shangqiu city , Henan province , China
Factory history	26 years

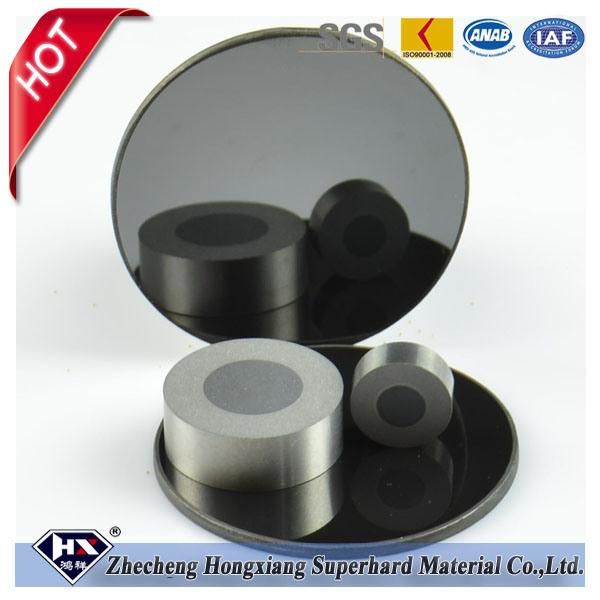

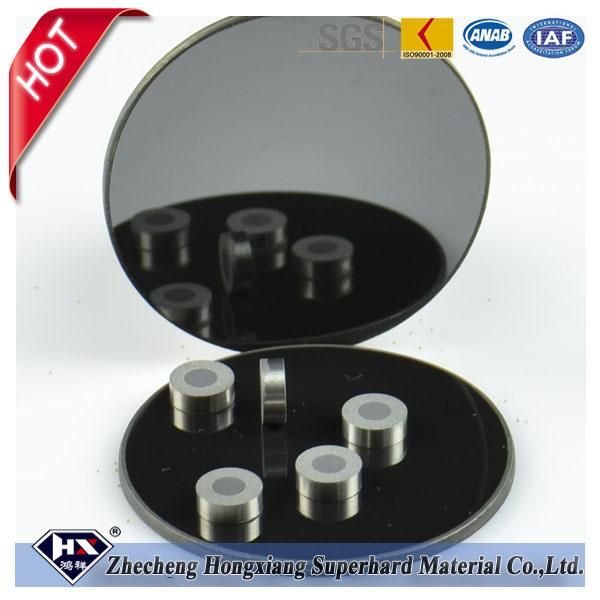

Factory main products	1. PCD die blanks   & PCD die                                                                                                    2. PDC cutter for oil drilling bit                                                                                  3. PCD cutting tools                                                                                                    4. Diamond powder
