• Model NO.：1313
• Color：Black
• Delivery Time：5-7 Workdays
• Size：1618
• Use for：Drill Bit
• Transport Package：Box
• Specification：7040
• Trademark：HX
• Origin：China
• HS Code：7105102000
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. 1313 Color Black Delivery Time 5-7 Workdays Size 1618 Use for Drill Bit Transport Package Box Specification 7040 Trademark HX Origin China HS Code 7105102000 Production Capacity 100000PCS/Month

Product Description

Hardness: 5000-8000HV
Overall sintered
Laser beam cutting
Cobalt-based material
1. Diamond polymer
2. With the high temperature and the ultrahigh pressure sintering
3. Made of Diamond and bonding agent
4. High heat resistance and high thermal stability

Shape: Triangle, square, rectangle, six prismatic, cylindrical,
Circular arc form at both ends

1. PCD for natural diamond: Size 10*0.75mm, 10*1mm
2. PCD for making wire drawing dies: Size D6, D12, D15, D18, D21, D24, D27, D30, D31, D33, etc,
We also can making the size as customer need.

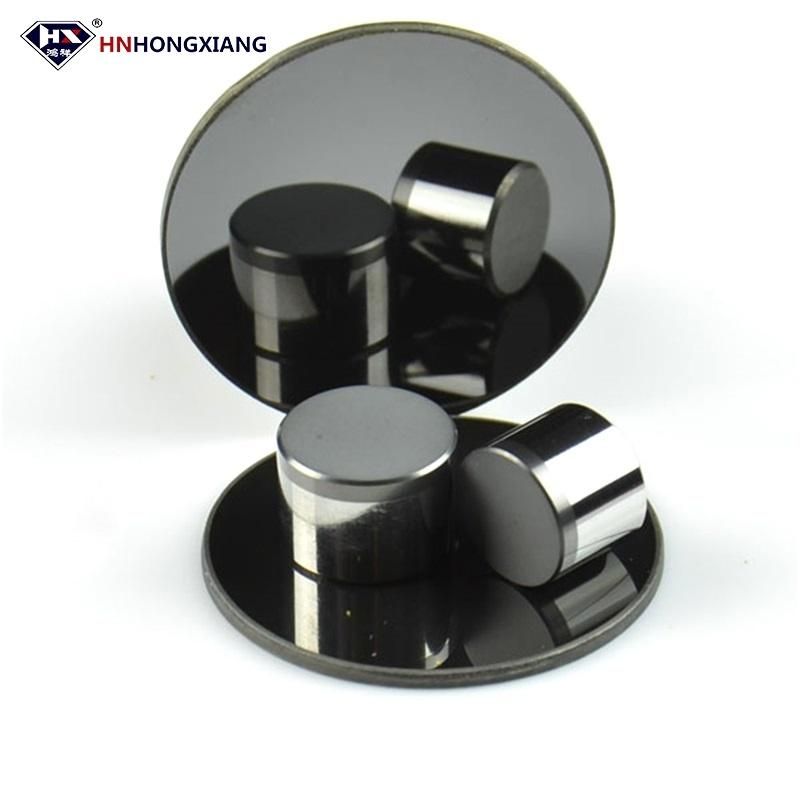

3. Polycrystalline diamond compact PDC: Size 1308, 1313, 1613, 1913, etc.
4. PCD cutting tools: Diameter25mm, 30mm, etc
Our products have experted to United Kingdom, France, Germany, Spain, Italy,
USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey
Etc 52 countries and participated in many domestic and international exhibitions.
Besides, our products have won good satisfaction and recogntion by foreign
Customers.

If you want to know more information, please contract us.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10
