• Model NO.：HX
• Factory：Hongxiang
• History：26 Years
• Address：Shangqiu ,China
• Certificate：ISO 9001
• Transport Package：Plastic
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. HX Factory Hongxiang History 26 Years Address Shangqiu ,China Certificate ISO 9001 Transport Package Plastic Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

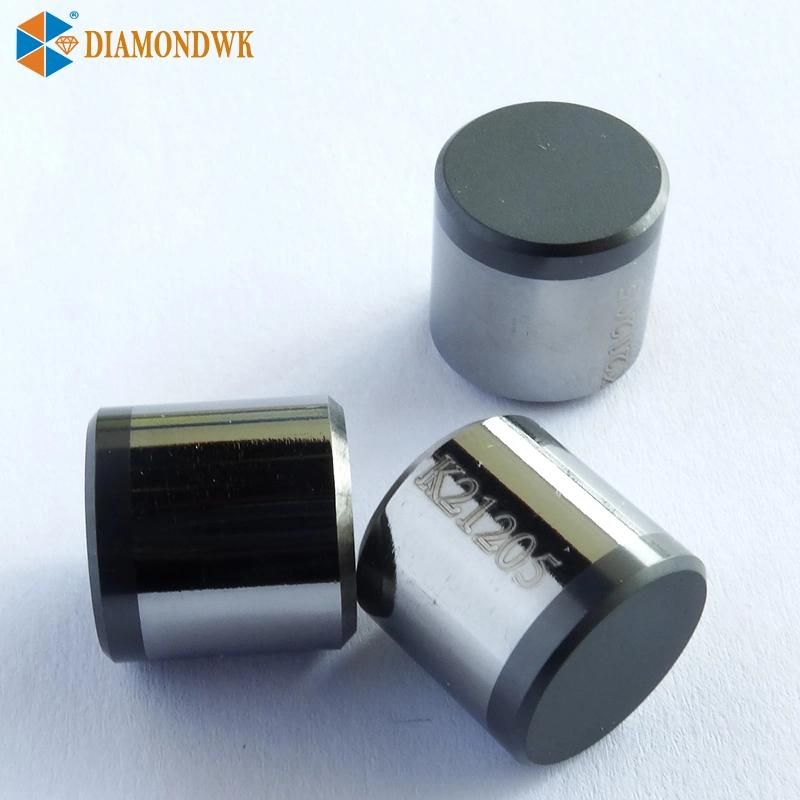

PDC (polycrystalline Diamond Compact) drill bit is a new product after the hot-pressed and electroplated drill bit in recent years. With special high-frequency welding techniques, PDC of high wear resistant is welded to the body as cutting edges. PDC bit is mainly used for geological prospecting coal exploration, water conservancy and power engineering, etc.


Advantage:
1. It has a super long life. The useful life of the PDC
Bit is 4~5 times than the diamond bit, 10 times than
The tungsten carbide bit at least.
2. It has high drilling speed.
3. It can be operated with low pressure and low speed.
4. It has a good package protection.
5. It can be used widely, more suitable for drilling in


All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Factory Introduction

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention.

Constant innovation and good faith are our foothold.



Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many



Domestic and international exhibitions. Besides, our product has won good satisfaction and recognition by domestic and foreign customers.
