Gl380 High Air Pressure DTH Hammers
Glorytek Industry (Beijing) Co., Ltd.- Customized：Customized
- Standard：API
- Length：Stub-length
- Type：DTH Hammer
- Material：High Carbon Steel
- Usage：Wood Drilling, Well Drilling, PCB Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.：GL380
- Item：Gl380
- Drilling Dia. (/mm)：203-350
- Hammer Length(mm)：1551
- Outside Dia. (/mm)：181
- Weight(Kg)：277
- Working Pressure(MPa)：0.8-2.1
- Air Consumption (M3/Min.)：12-31
- Torque(N.M)：1560
- Impact Frequency (Times/Min.)：860-1510
- Connection 1：API 4-1,2
- Transport Package：Standard Export Packing
- Specification：SGS
- Trademark：GLORYTEK
- Origin：China
- Production Capacity：300 Pieces Per Mouth
Description
GL340AGL345 GL350 GL355 GL360 GL380 GL3120 Drilling Dia. (/mm) 82-85 90-93 105-130 105-130 130-152 130-152 152-305 203-350 302-508 Hammer Length(mm) 867 908 1052 1034 1387 1220 1450 1551 1934 Outside Dia. (/mm) 71 81 92 98 114 124 136 181 275 Weight(kg) 19 21.8 38 39 69 74 126 277 642 Working Pressure(Mpa) 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 Air Consumption
(M3/Min.) 3-12 4.3-14.2 3.5-18 3.5-15 5.7-18 6.5-18 8.5-25 12-31 14-45 Torque(N.M) 150 205 304 335 590 700 822 1560 2410 Impact Frequency (Times/Min.) >=800 950-1500 >=800 >=800 810-1470 810-1500 820-1475 860-1510 980-1446 Connection 1 48.8*4.2 API 2-3/8 API 2-3/8 API 2-3/8 API 3-1/2 API 2-3/8 API 3-1/2 API 4-1/2 API 6-5/8 Connection 2 47-6 53-8 64-8 64-8 84-8 84-8 99.5-8 128-10 184-8 High Efficient High Pressure Hammer Item GL345A GL355K GL360K GL380K Drilling Dia. (/mm) 105-130 140-152 165-219 203-350 Hammer Length(mm) 1034 1098 1372 1504 Outside Dia.(/mm) 98 124 152 180 Weight(kg) 39 70 92 230 Working Pressure(Mpa) 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 Air Consumption (M3/Min.) 3.5-15 4.5-18 9- 26 9.6-24.8 Torque(N.M) 335 800 1150 1870 Impact Frequency (Times/Min.) >=800 840-1500 950-1650 1100-1550 Connection 1 API 2-3/8 API 2-3/8 API 3-1/2 API 4 1-2 Connection 2 64-8 84-8 99.5-8 128-10

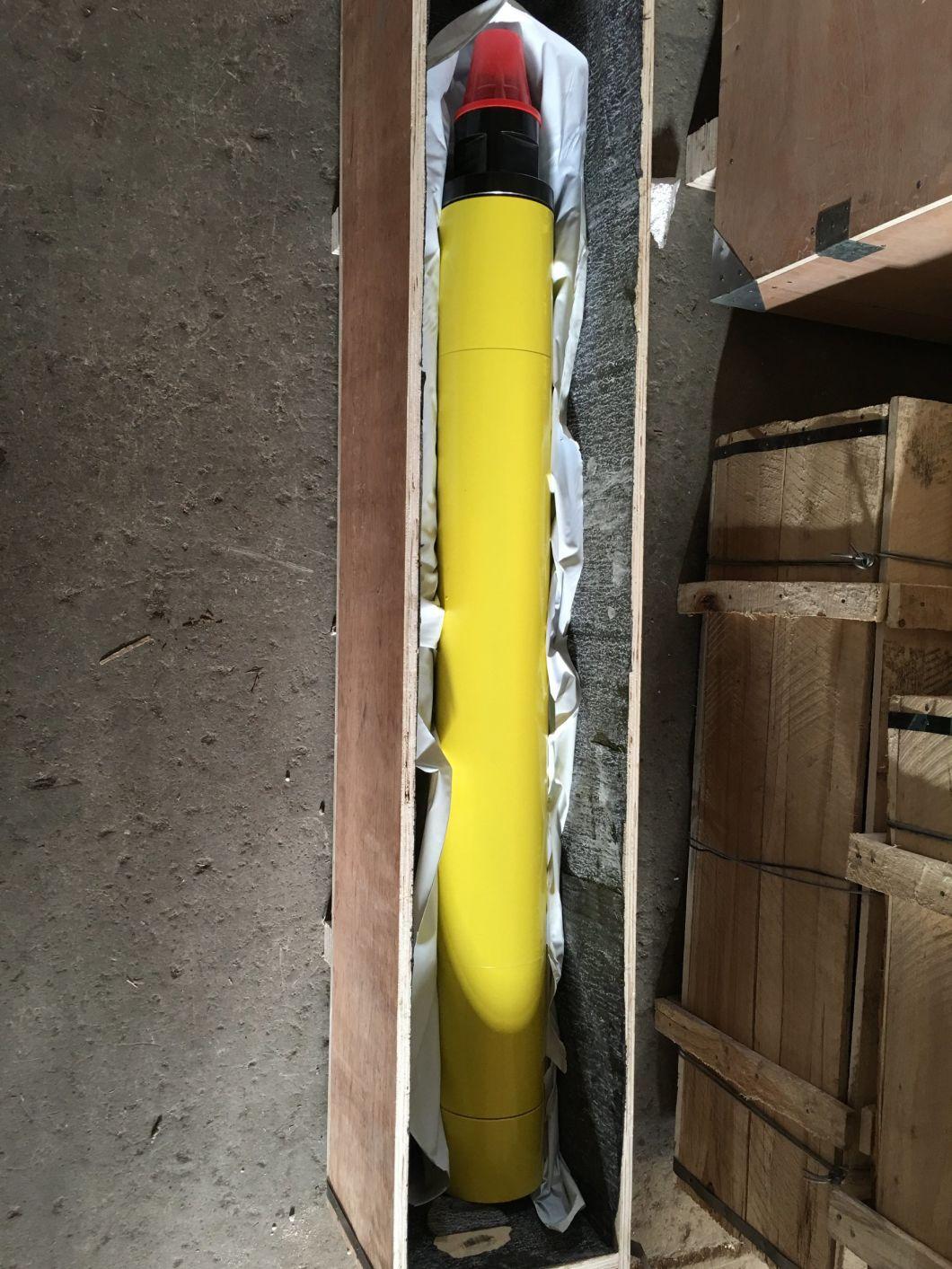

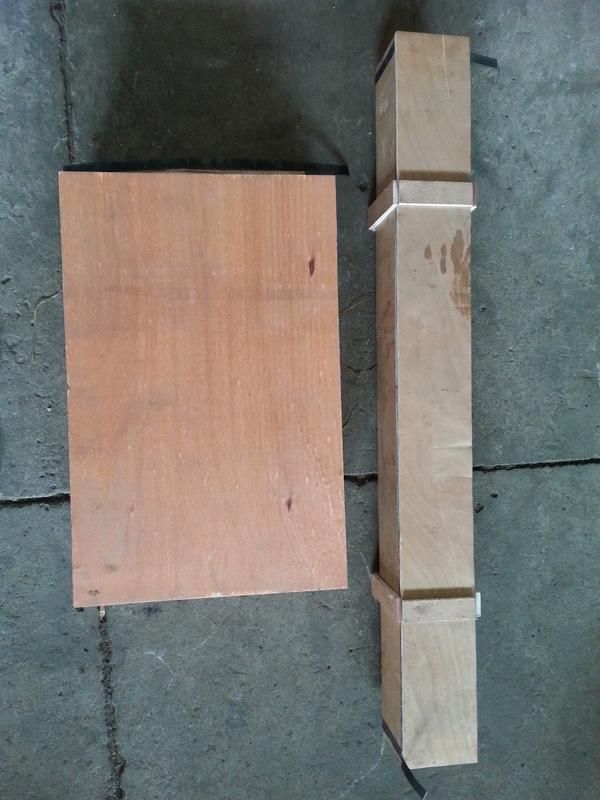

Packing
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
Contact
Sunny Dong(Sales Representative)
Glorytek Industry (Beijing) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Website: glorytek.en.made-in-china.com / glorytek.en.made-in-china.com
(M3/Min.)
Packing

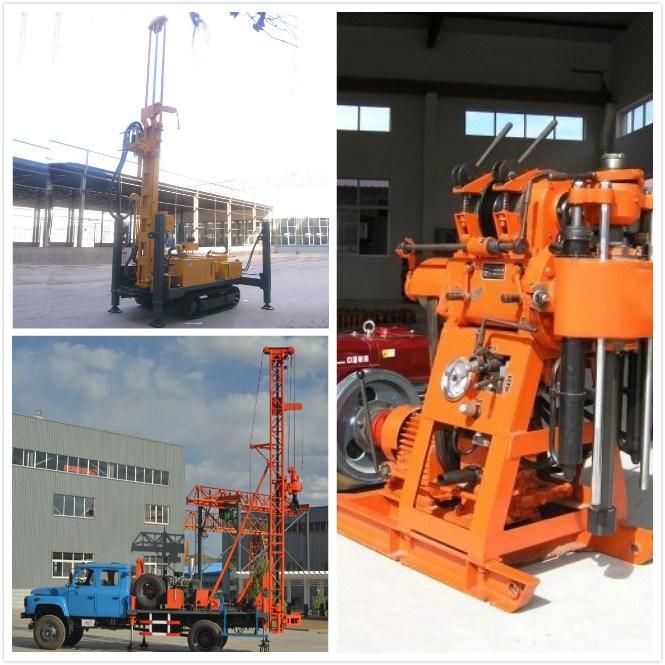

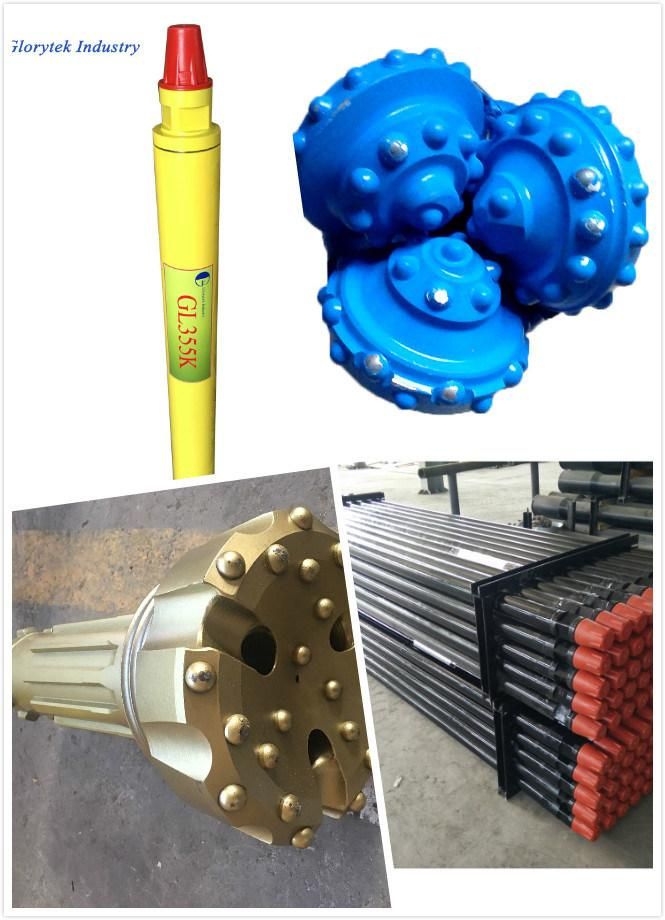

Related Product
Our Company & Service
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Certificate

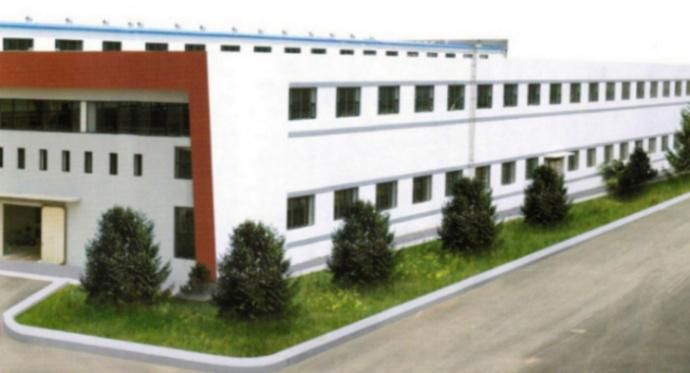

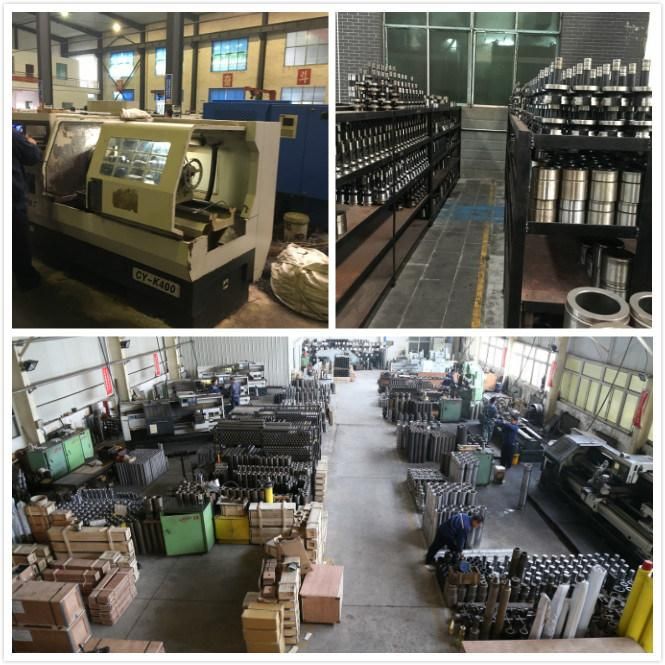

Factory Picture
