Drilling Tools

Gl Series High Pressure DTH Hammers

Glorytek Industry (Beijing) Co., Ltd.
  • Customized:Customized
  • Length:Stub-length
  • Type:DTH Hammer
  • Material:High Carbon Steel
  • Usage:Well Drilling
  • Item:Gl380

Base Info

  • Model NO.:GL380
  • Drilling Dia. (/mm):203-350
  • Hammer Length(mm):1551
  • Outside Dia. (/mm):181
  • Weight(Kg):277
  • Working Pressure(MPa):0.8-2.1
  • Air Consumption (M3/Min.):12-31
  • Torque(N.M):1560
  • Impact Frequency (Times/Min.):860-1510
  • Connection 1:API 4-1,2
  • Transport Package:Standard Export Packing
  • Specification:SGS
  • Trademark:GLORYTEK
  • Origin:China
  • Production Capacity:300 Pieces Per Mouth

Description

GL340AGL345GL350GL355GL360GL380GL3120Drilling Dia. (/mm)82-8590-93105-130105-130130-152130-152152-305203-350302-508Hammer Length(mm)8679081052103413871220145015511934Outside Dia. (/mm)71819298114124136181275Weight(kg)1921.838396974126277642Working Pressure(Mpa)0.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.1Air Consumption
(M3/Min.)3-124.3-14.23.5-183.5-155.7-186.5-188.5-2512-3114-45Torque(N.M)15020530433559070082215602410Impact Frequency (Times/Min.)>=800950-1500>=800>=800810-1470810-1500820-1475860-1510980-1446Connection 148.8*4.2API 2-3/8API 2-3/8API 2-3/8API 3-1/2API 2-3/8API 3-1/2API 4-1/2API 6-5/8Connection 247-653-864-864-884-884-899.5-8128-10184-8High Efficient High Pressure HammerItemGL345AGL355KGL360KGL380KDrilling Dia. (/mm)105-130140-152165-219203-350Hammer Length(mm)1034109813721504Outside Dia.(/mm)98124152180Weight(kg)397092230Working Pressure(Mpa)0.8-2.10.8-2.10.8-2.10.8-2.1Air Consumption (M3/Min.)3.5-154.5-189- 269.6-24.8Torque(N.M)33580011501870Impact Frequency (Times/Min.)>=800840-1500950-16501100-1550Connection 1API 2-3/8API 2-3/8API 3-1/2API 4 1-2Connection 264-884-899.5-8128-10

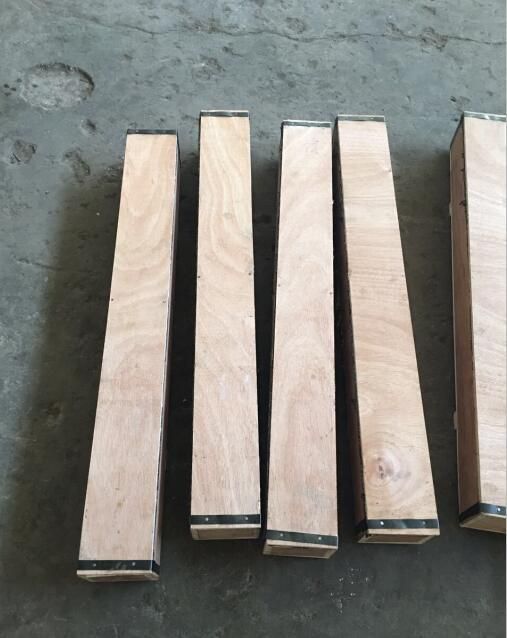

Packing
Gl Series High Pressure DTH Hammers

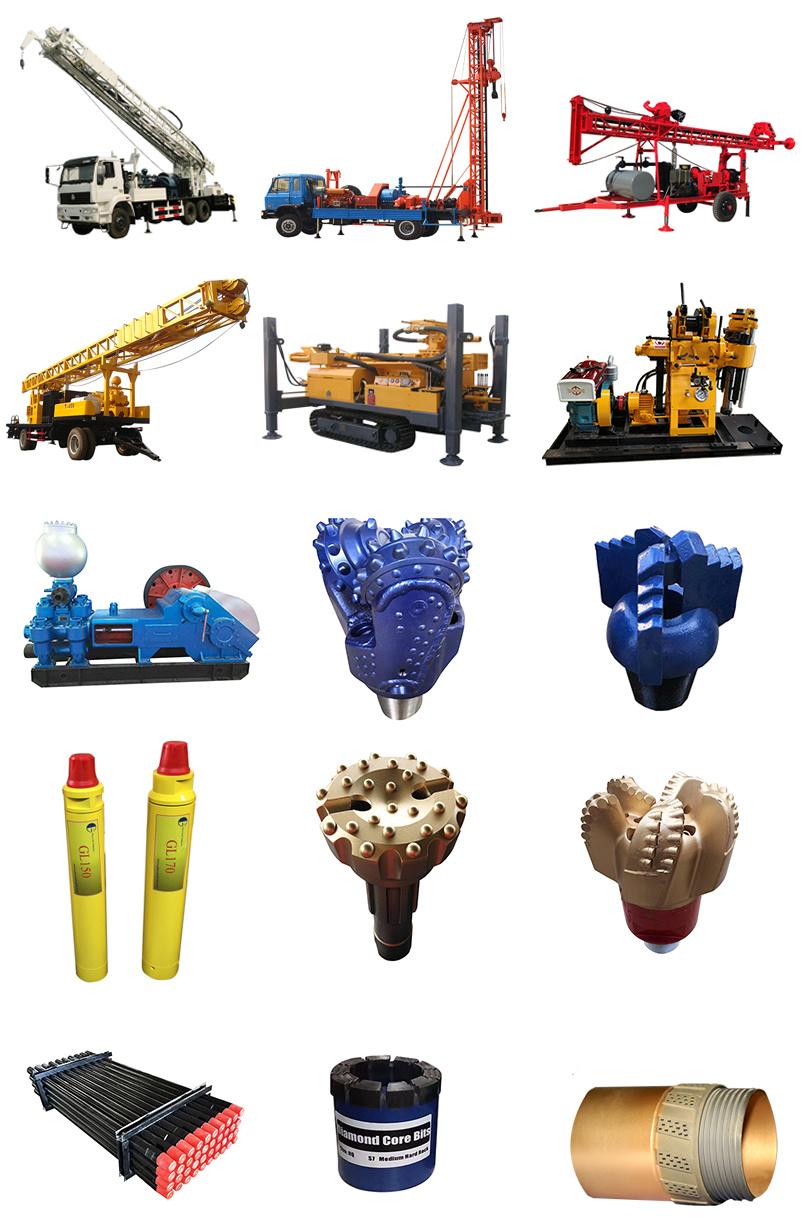

Related Product

Gl Series High Pressure DTH Hammers

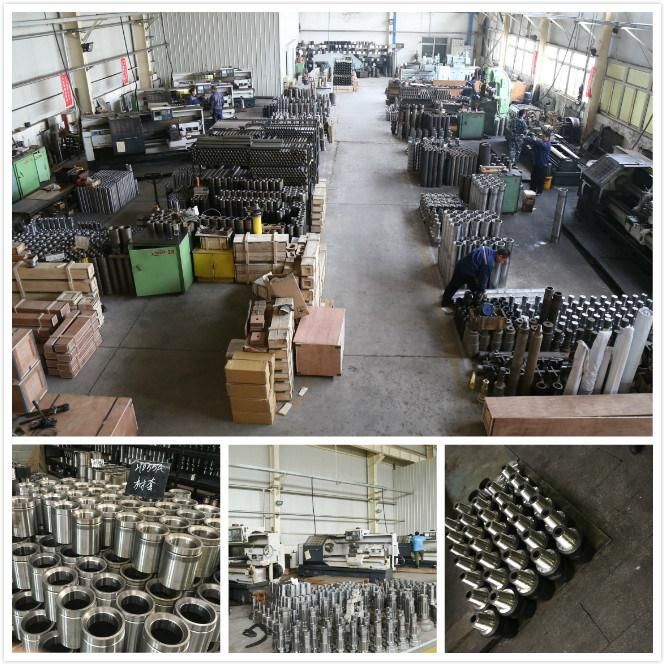

Our Company & Service
Gl Series High Pressure DTH Hammers

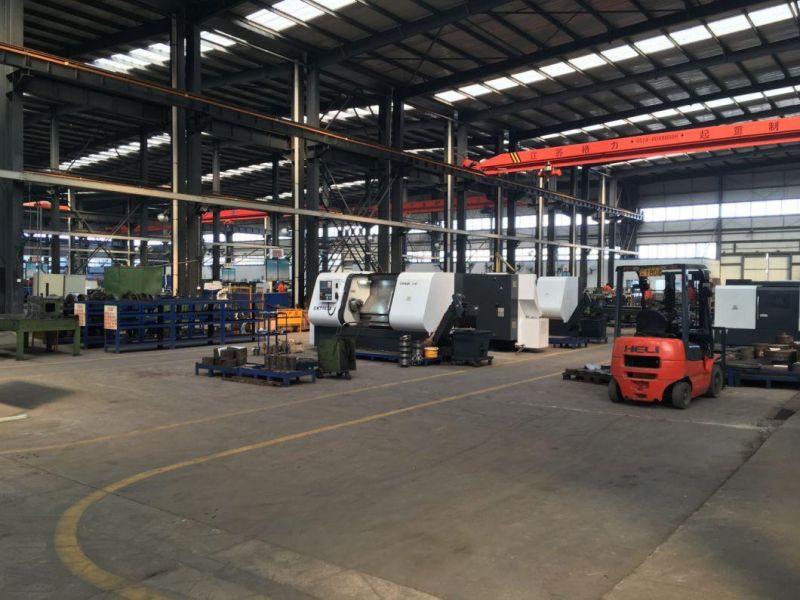

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Gl Series High Pressure DTH Hammers


Gl Series High Pressure DTH Hammers

Gl Series High Pressure DTH Hammers



Gl Series High Pressure DTH Hammers


Gl Series High Pressure DTH Hammers

Gl Series High Pressure DTH Hammers


FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
