HSS Tube and Sheet Drill
Danyang Ergaster Tools Co., Ltd.- Customized：Customized
- Standard：Fat
- Length：76mm,
- Type：Core Drill Bit
- Material：High Speed Steel
- Usage：Wood Drilling, PCB Drilling, Metal Drilling
Base Info
- Model NO.：1500O1030
- Surface：Bright
- Shank：3-Way Clamping
- Transport Package：Stardard Export Carton
- Specification：16-30.5mm
- Trademark：Ergaster
- Origin：China
- HS Code：8207509000
- Production Capacity：500000 Pieces,Year
Description

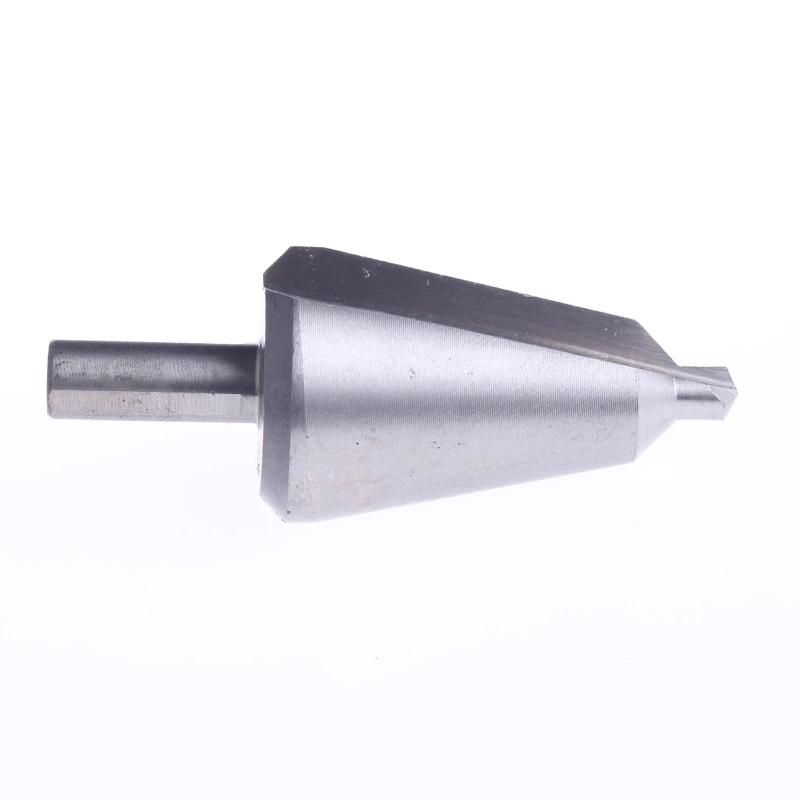

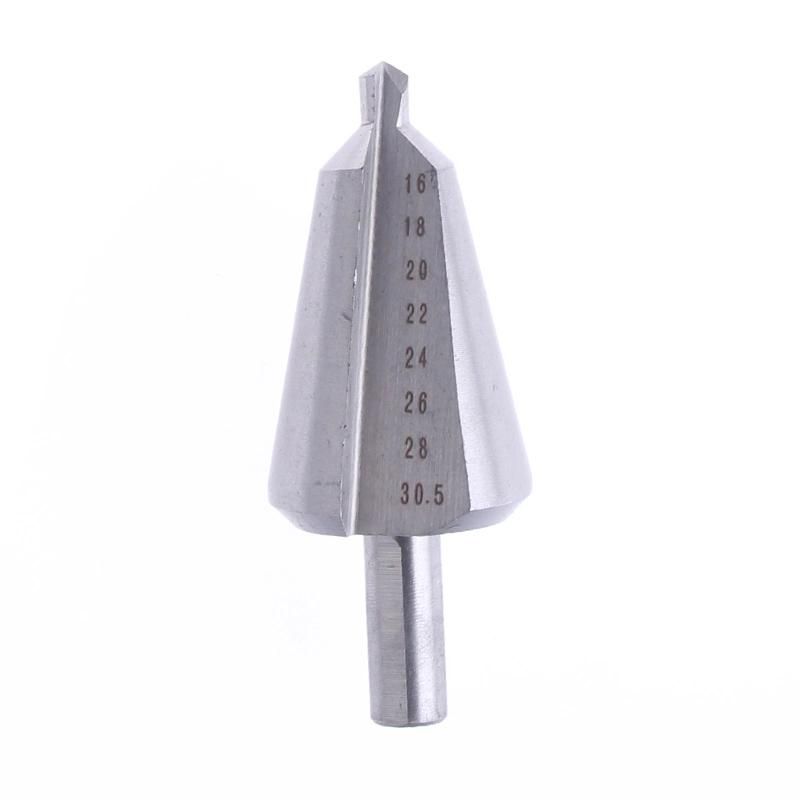

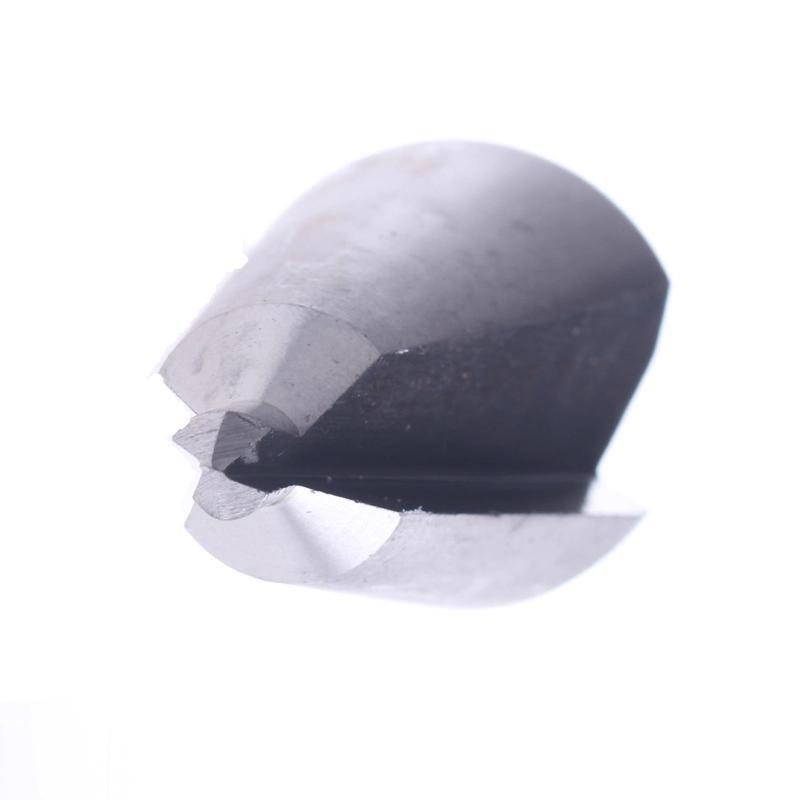

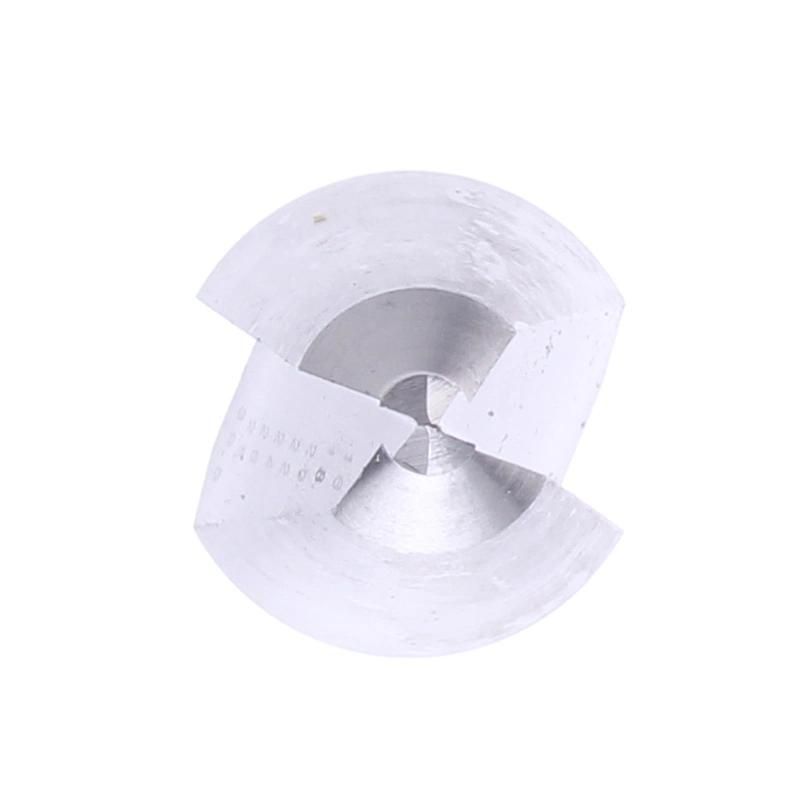

HSS Tube and Sheet Drill bits HSS with Split PointDrill Material HSS4241(M2,HSS-CO 5% is available) Drill Point Angle 118° Drill Cone angle 20-30° Drill Shank 3-Way Clamping (Hex Shank Size 1/4" Inch (6.35 mm) is available) Drill Surface Bright (Titanium Coated ,TiAIN coated are available) Drill Package in PVC Pouch, Double Blister card of 1 Drill Features Tube sgeet drill plit-point angle is 118 degree according to DIN1412-C.
Cone shaped back-end of the tool facilititates easy withdrawal of the tool after having punctured sheet metal with the tool`s widest diameter.
Stepless centring, drilling and boring without deformation of the workpiece.
Tube and Sheet Metal Drill Bits can be used in different industries,like electrical industry,sanitary engineering and heating technics industry,automotive industry, mechanical engineering industry,switching systems industry, and aviation industry.
Tube and Sheet Metal Drill Bits have more commons with step drill bits.
Used in Different Industries
Tube and Sheet Metal Drill Bits can be used in different industries,like electrical industry,sanitary engineering and heating technics industry,automotive industry, mechanical engineering industry,switching systems industry, and aviation industry.
Shank
Tube and Sheet Metal Drill Bits can have hex shank ,3-way clamping shank.
Material
There are many different material of Tube and Sheet Metal Drill Bit,like HSS Titanium Coated,HSS CO 5%.
If you just want to drill a hole up to 4.0 mm thickness and do not definitely size between two sizes,Tube and Sheet Metal Drill Bits are sutiable for you.
Cone shaped back-end of the tool facilititates easy withdrawal of the tool after having punctured sheet metal with the tool`s widest diameter.
Stepless centring, drilling and boring without deformation of the workpiece.
Tube and Sheet Metal Drill Bits can be used in different industries,like electrical industry,sanitary engineering and heating technics industry,automotive industry, mechanical engineering industry,switching systems industry, and aviation industry.
Tube and Sheet Metal Drill Bits have more commons with step drill bits.
Used in Different Industries
Tube and Sheet Metal Drill Bits can be used in different industries,like electrical industry,sanitary engineering and heating technics industry,automotive industry, mechanical engineering industry,switching systems industry, and aviation industry.
Shank
Tube and Sheet Metal Drill Bits can have hex shank ,3-way clamping shank.
Material
There are many different material of Tube and Sheet Metal Drill Bit,like HSS Titanium Coated,HSS CO 5%.
If you just want to drill a hole up to 4.0 mm thickness and do not definitely size between two sizes,Tube and Sheet Metal Drill Bits are sutiable for you.
| FAQ |
| Q: What can we provide ? |
| A: We are a professional manufacturer of drill bit and have our own packing centre. We have worked together with many good manufactuers of different tools as an exclusive tool club. We can provide our factory direct price for a vast range of products, including power tool accessories, hand tools, combination kits, etc. |
| Q:What is the shipping port? |
| A: We ship the goods via Shanghai/Ningbo port. |
| Q:How about the sample? |
| A: The samples will be sent to you via express .You can testing quality. |
| Q:How do you control the quality? |
| A: We will make samples before mass production, and mass production will be arranged after samples approved. Doing 100% inspection during production, then do random inspection before packing, taking pictures after packing. |
| Q:Is OEM available? |
| A: Customization(OEM)for our main products is accepted -- Our factory have theQualified Designer team. They can design according to your drawing or pictures,and produce the sample for your checking before order. Please kindly contact our sales staff for quotation. |
| Shipping way |
| 1. Small quantity: by international air express (TNT/FedEx/DHL/UPS for samples or under 45KG wegight goods .) |
| 2. Large quantity: by ocean cargo, arriving time depends on customers destination |
| 3. Customers specifying freight forwarders or not. |
| Our service |
| 1. 24hours online technical support (telephone and email) |
| 2. Engineers are available |
| Please contact with us when you gonna order,we will answer back ASAP. |
