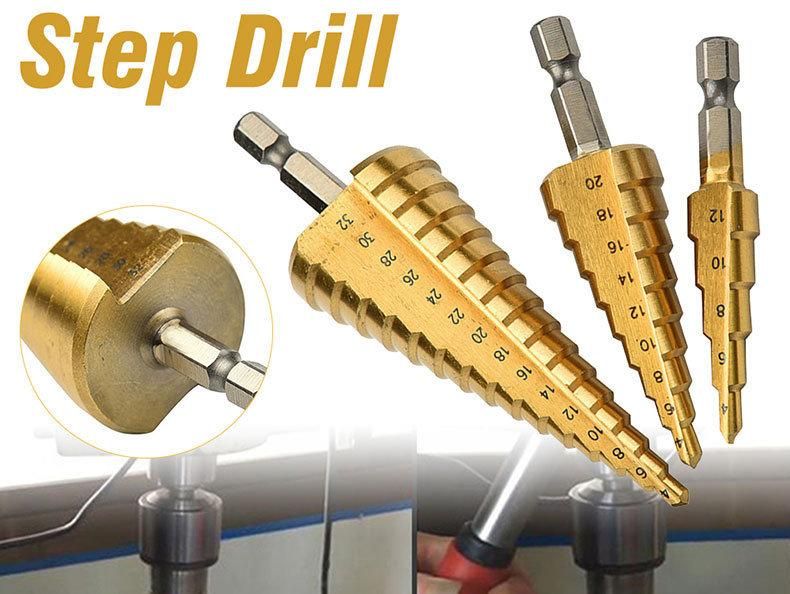

HSS Drills Set Metric Size Titanium Coating Double R Shank Spiral Flute HSS Step Drill Bit Set (SED-SD-SFT01)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Core Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-SD-SFT01
  • Dia Size：6-35mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS
  • Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Tin Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000PCS,Month

Description

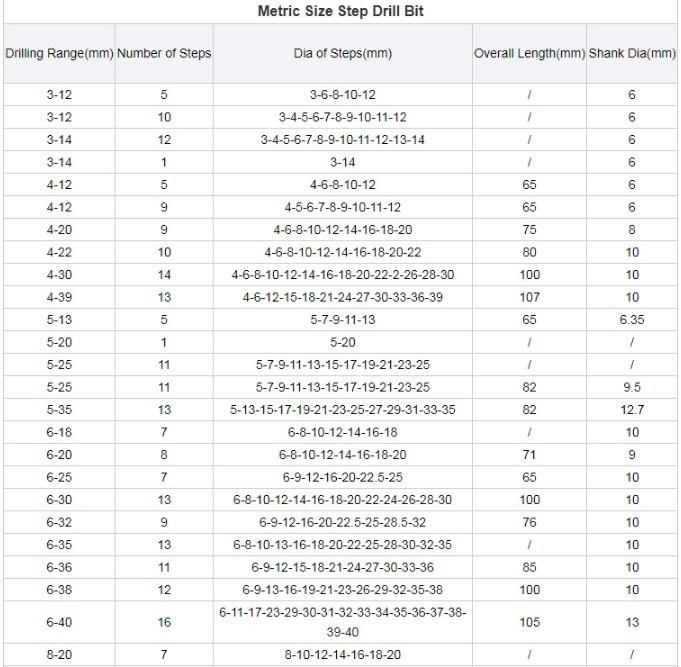

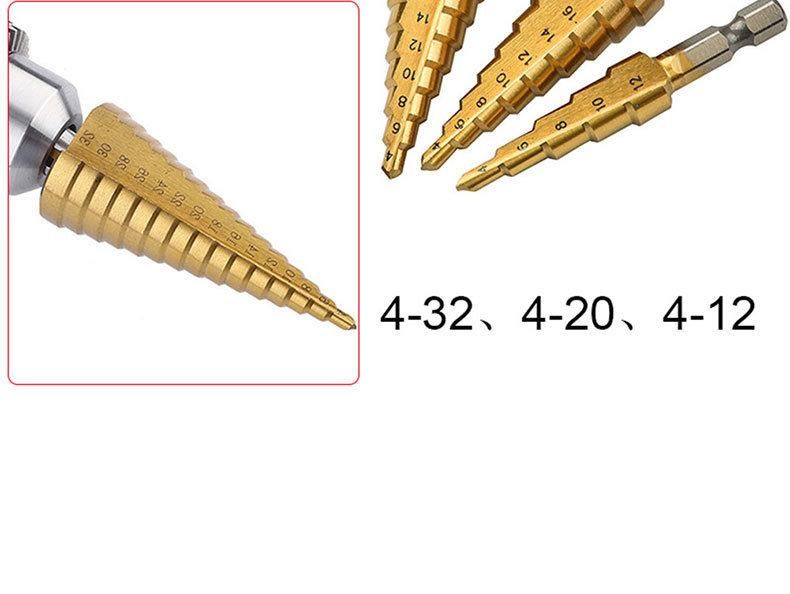

Procuct NameTitanium Coating Double R Shank Spiral Flute HSS Step Drill Bit for Metal Tube Sheet DrillingSize6-35mm  (6mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm, 35mm)MaterialHSS   (Cobalt M35 is Available)Flute TypeSpiral Flute   (Straight Flute is Available)Flute NumberTwo Flutes   (Single Flute, Three Flutes are Available)Shank Double R Shank   (Three Flats Shank, Quick Change Hex Shank, Round Shank are Available)Surface FinishTiN  (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)PackageOne Piece in Double Blister or Plastic TubeFeatures

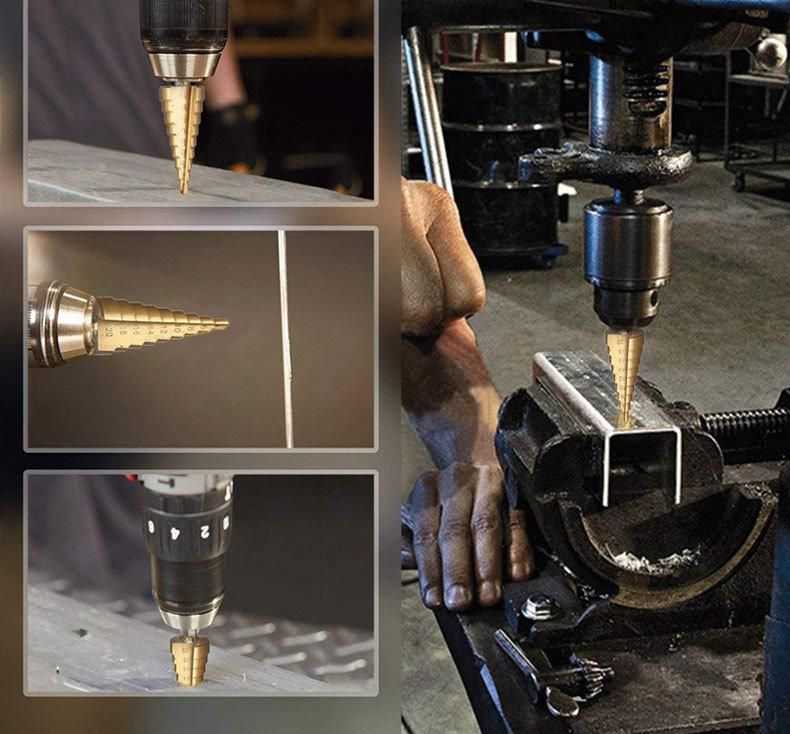

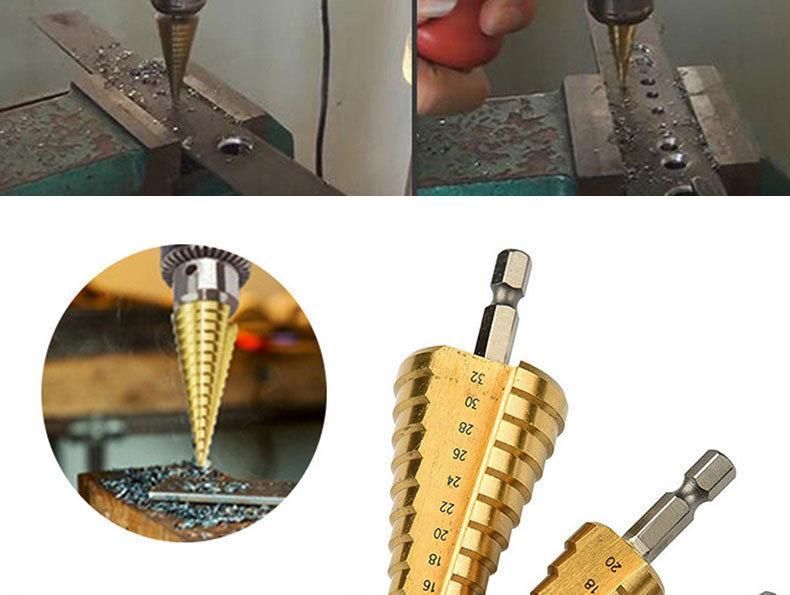

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.

2. 135° Split Point Tip: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. The Spiral Groove: creates better, less noise, less force has to be used.

7. Only for rotary use.
