Fully Ground Triangle Shank HSS Drills Titanium HSS Pilot Point HSS Drill Twist Drill Bit for Metal Stainless Steel Aluminium Drilling (SED-HTTF)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTTF
  • Dia Size：1.0mm-20mm
  • Manufacturing Art：Fully Ground or Forged
  • Min Quantity：1000PCS,Size
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Tin-Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Procuct NameFully Ground Three Flats Shank Parabolic Flute Titanium HSS Pilot Point Twist Drill Bit for MetalMaterialHSS   (HSS Cobalt M35 is Available)ProcessFully Ground  (Rolled & Polished, Rolled, Milled are Available)Standard

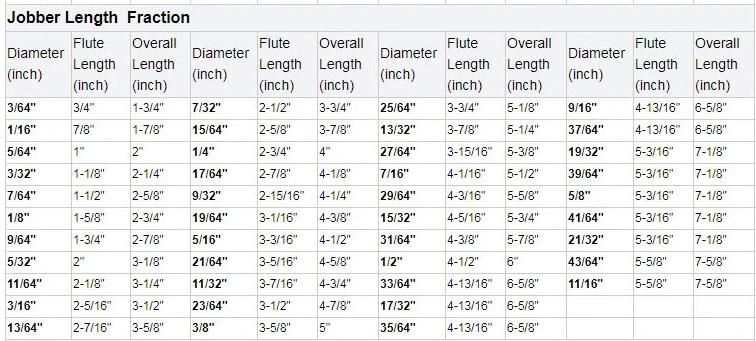

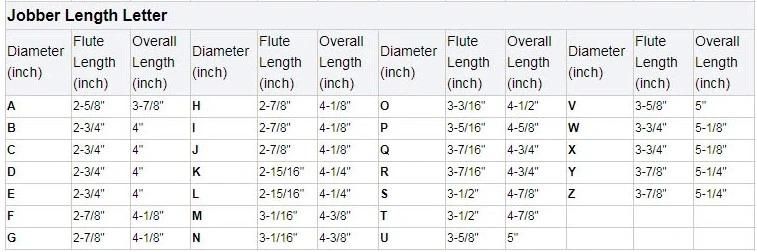

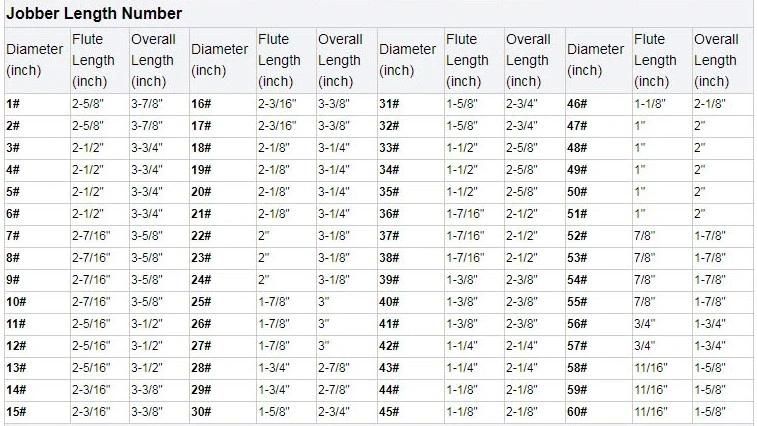

Jobber Length     (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                               Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

DIN338                  (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                               Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Size1/16"-1/2"Point TypePilot Point   (118 Degree Regular Point, 135 Degree Split Point, Turbo Max Point are Available)Shank Type

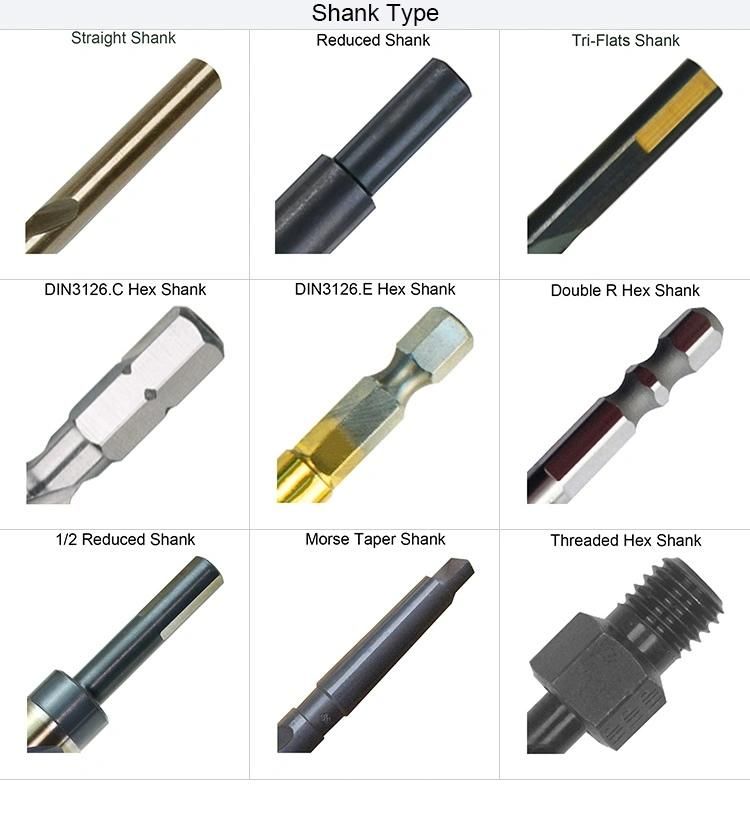

Tri-Flats Shank     (Striaght Shank, Hex Shank, Double R Hex Shank, Reduced Shank,

                                Threaded Shank, Taper Shank are Available)

Helix AngleRegular Spiral Type N    (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute TypeRegular Web & Flute    (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface FinishTitanium    (Bright, Black Oxide, Amber Color, Black & Gold, Black & Bright are Available)Package10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features1. A Subland Drill is basically two drills of different diameters combined into one tool, retaining the individual characteristics and proper geometry for each diameter.
2. The dual cutting diameters produce holes properly sized for each size screw.
3. Recommended for use with corded high-rpm drills.
4. The Subland Drill provides superior tool life compared to that of a basic step drill.
5. Useful for applications like cabinet making, fastening, woodworking, and other home and professional applications.
