Supreme German Quality Cross 4cutter Quick Stop Hammer Drill SDS Plus with Stopper for Depth Controlled Drilling in Concrete, Brick, Stone, Cement, etc.
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：127mm to 154mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2106
- Carbide Type：Ceratizit Bc20 CT-4
- Flute Type：4u
- with Stopper：Yes
- Shank Type：SDS Plus
- Surface Treatment：Shot-Peened, Zn-Coated
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Transport Package：Box, PVC Bag, Blister, Skin, Sandwich, Paper Hange
- Specification：8mm to 15mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000,Year
Description
Basic Info.
Model NO. 2106 Carbide Type Ceratizit Bc20 CT-4 Flute Type 4u with Stopper Yes Shank Type SDS Plus Surface Treatment Shot-Peened, Zn-Coated Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Box, PVC Bag, Blister, Skin, Sandwich, Paper Hange Specification 8mm to 15mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description

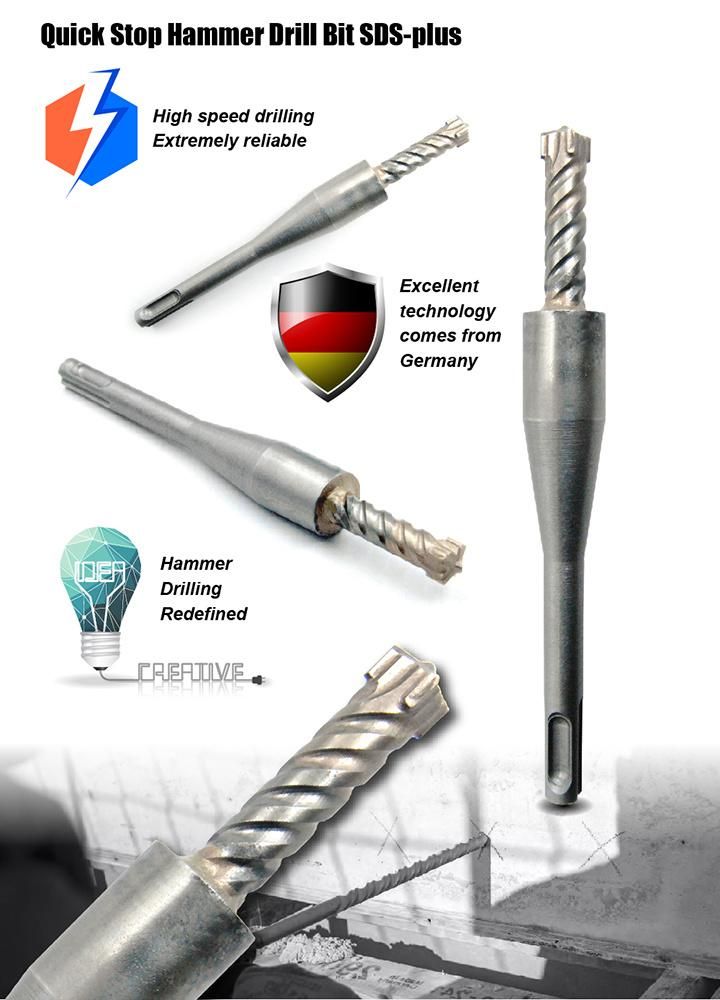

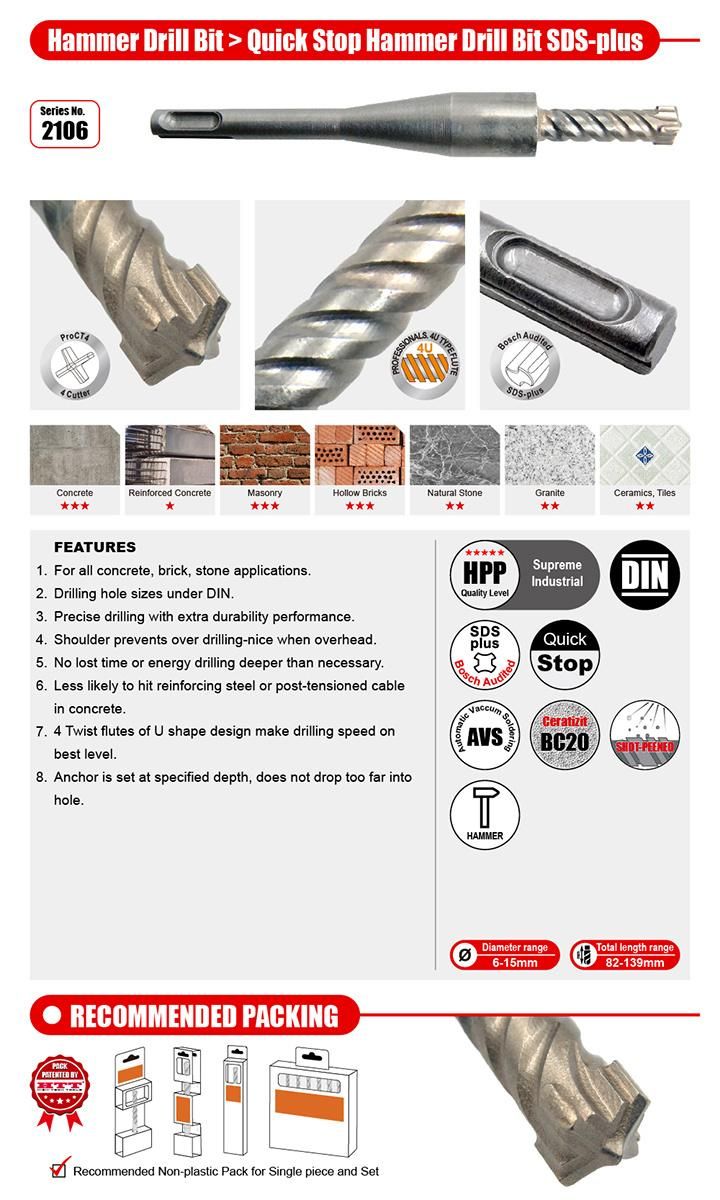

* Quick Stop Hammer Drill SDS plus with Cross 4Cutter Tipped and 4U flute type, SDS-plus shank to do correct depth controlled hole drilling.*To fast volume assembly for fixings that require precise and repetitive drilling depth ( for drop-in anchors.) Installation of stadium seats, cable trays, ventilation system, etc.
* Cross carbide tip with a self-centering point.
* 4U half-round flute to maximize dust rejection to keep the fastest drilling speed.
* Depth stop design to realize that precise finished hole depth for those anchors.
* Precise starting up to avoid the sweeping effect.
* One-piece tip with 4 cutting edges for all types of concrete including reinforced
Other special sizes are also available on the customers' special requests.
| Diameter(mm) | Drilling Depth(mm) | Overall Length(mm) |
| 8 | 27 | 127 |
| 10 | 33 | 133 |
| 12 | 43 | 143 |
| 15 | 52 | 152 |
| 15 | 54 | 154 |
