HSS Twist Drill Bits Fully Ground with Rainbow Color
Hangzhou Fanxi Tools Co., Ltd.- Customized：Customized
- Length：Jobber-length
- Type：Twist Drill Bit
- Material：High Carbon Steel
- Usage：Metal Drilling
- Transport Package：Paper Bag, PVC Bag, Blister, Plastic Box etc.
Base Info
- Model NO.：TD-007
- Specification：DIN338
- Trademark：FANXI
- Origin：P. R. China
- HS Code：8207509000
- Production Capacity：100, 000PCS,Month
Description
Basic Info.
Model NO. TD-007 Specification DIN338 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/MonthProduct Description

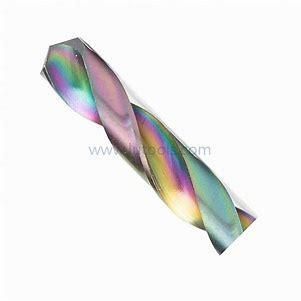

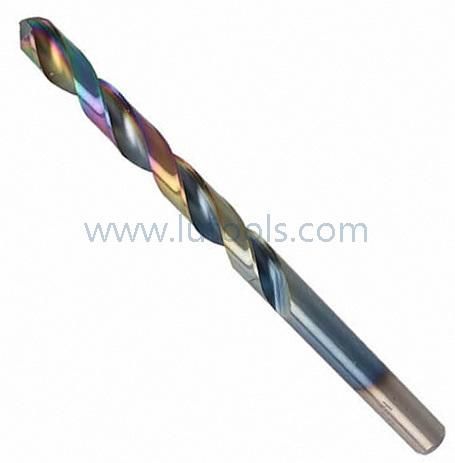

HSS Twist Drill Bit Fully Ground with Rainbow ColorHardened high speed steel body provides additional safeguard.

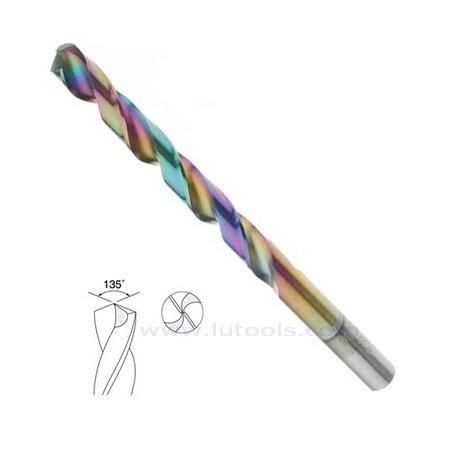

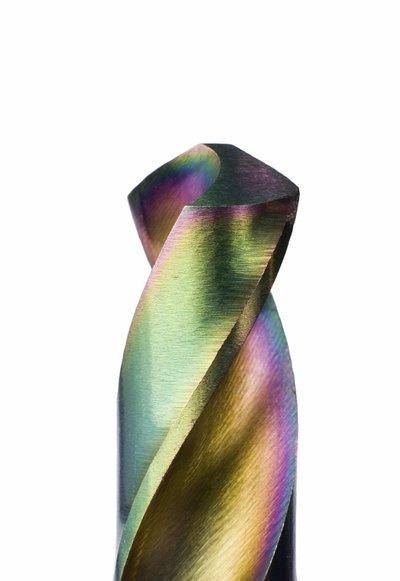

135 degree split point starts on contact in all types of metal, no walking or skating
Fully ground body, Rainbow Color for the most accurate hole dimensions and high concentricity.
For general using in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.
Drill Bits Set are available on request.
Metric Size are available (DIN338 Standard):
0.4mm ~ 13.0mm by 0.1mm

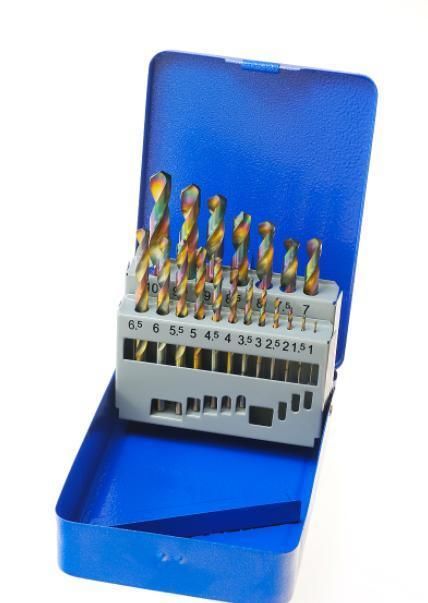

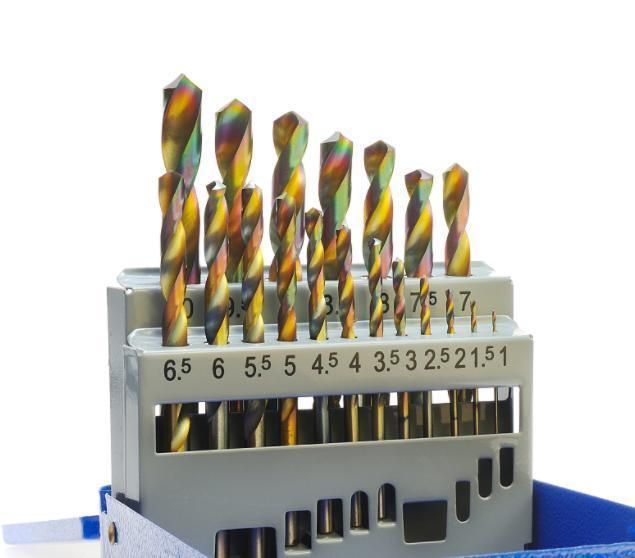

Set are available:
1.5 ~ 6.5mm x 13 PCS set
1.0 ~ 10mm x 19 PCS set
1.0 ~ 13mm x 25 PCS set
Inch Size are available (ANSI B94.11M-1993 Standard):
Fractional Size: 1/64" ~ 1/2"
Letter Size: A ~ Z
Wire Gage Size: 1# ~ 80#
Set are available:
1/16" ~ 1/4" x 13 PCS set
1/16" ~ 3/8" x 21 PCS set
1/16" ~ 1/2" x 29 PCS set
115 PCS set etc.
