Manual Stainless Steel Multi-Levels Sampling Probe for Grain Rice Corn
Fushun Bright Science and Technology Co., Ltd.- Customized：Customized
- Standard：ISO 9001-2008
- Length：500mm~2500mm
- Type：Powder,Grain,Soil Sampling Probe
- Material：304 Stainless Steel,Brass
- Usage：Sampling Powder,Grain,Soil,Fodder,Fertilizer
Base Info
- Model NO.：BTZ-G
- Outside Diameter：19mm, 22mm, 25mm, 32mm, 38mm, 42mm, 45mm
- Number of Slots：1 up to 10
- Structure：Inside and Outside Double Tubes
- Application：Collecting a Composite Sample From Source
- Transport Package：According to Orders, Wooden or Carton Box
- Specification：Customized for you
- Trademark：BRT
- Origin：China
- HS Code：8205590000
- Production Capacity：3000 PCS, Month
Description
Mulit-Level Manual Sampling Probe/Spear consists of two close-knit stainless steel tubes, one set of chambers for the outer tube and one set of chambers for the inner tube (Penetrable and Contains slots of the inner tube connected/continuous ).The opening/closing of the chambers for inner and outer tubes can be controlled manually so as to achieve the purpose of sampling.
Characteristic:
1. Stainless Steel Material, Ensures the sample is pure; Brass material ensures no spark.
2. All parts of sampler can be disassembled. No welding, The appearance is exquisite and easy to clean.
3. A variety of specifications and models can be choosed, processing customized for you.
4. It is not only suitable for the collection of mixed samples, but also can be processed into independent/separate chambers sampling probes for the collection of fixed-point samples.

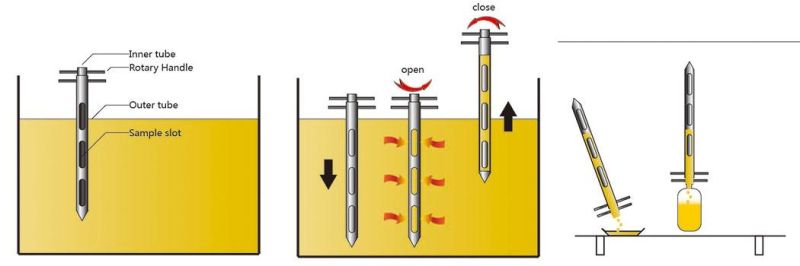

Sampling Method:
1. The sampling probe is composed of two tubes in closed fitting, one set of slot is cut on the outer tube, and one set of slot is cut on the inner tube accordingly. Fitting it and inserting into the material along a certain angle.
2. When it reaches the designated depth, rotate handle to open the slots, and before removing, the slots should be closed, then pour the materails from the end of probe into the sample container bottle, complete the sampling procedure.
OPERATION:1. Insert the sampler into the product2. Turn the handle to open the slot - the product can now be collected in the central tube3. Turn the handle to close the slot4. Remove the sampler5. Invert the sampler to discharge the sample.Keywords:
Stainless Steel Powder Multi-Levels Sampling Spear Made in China, OEM Soil Sampling Probe, Closed Chambers Solid Chemical Product Auger, Manual Tool Sampling Spear, Grains(Corn, Soybeans, Rice, Seed, Peanut, Wheat) Sampling Probe
In addition:
We can also manufacture on the basis of the BTZ-G Multi-levels Sampling Probe. They are BTZ-P Bottle Attached Sampling Probes and BTZ-GII Independent Sampling Probes
BTZ-P Sampling Probe is provided with a sample bottle at the end of the probe. After the probe is drawn out, inverting the sampling probe to pour the sample into the sample container/bottle at the end of the probe. Easy to use without transferring the sample.
BTZ-GII Independent Sampling Probes consists of two close-knit stainless steel tubes, one set of chambers for the outer tube and one set of chambers for the inner tube (Independent and Contains separate openings such as floors in building).Their slots are independent and disconnected from each other. It is suitable for sampling fixed-point samples, and the collected samples are independent without interference.
