• Model NO.：5016
• Carbide Type：Ceratizit Bc20
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Splus Carbide Tip
• Flute Type：H-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Clip Hanger, Color Paper Box, Paper Box, Tubes
• Specification：Diameter 10mm to 42mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：360000,Year

Basic Info.

Model NO. 5016 Carbide Type Ceratizit Bc20 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Splus Carbide Tip Flute Type H-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 10mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/Year

Product Description

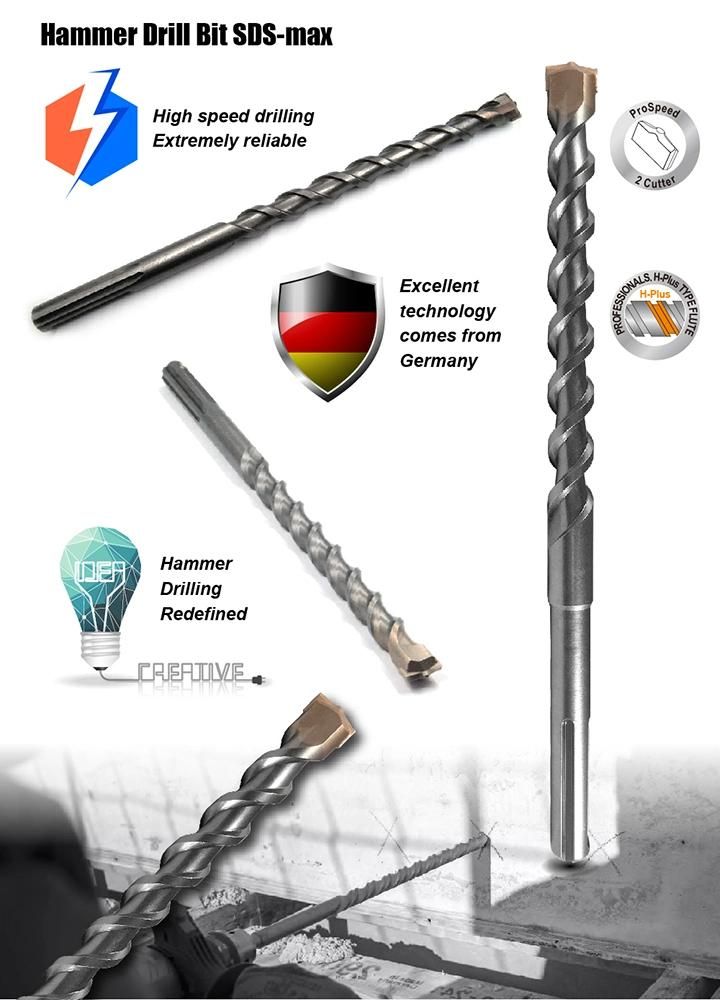

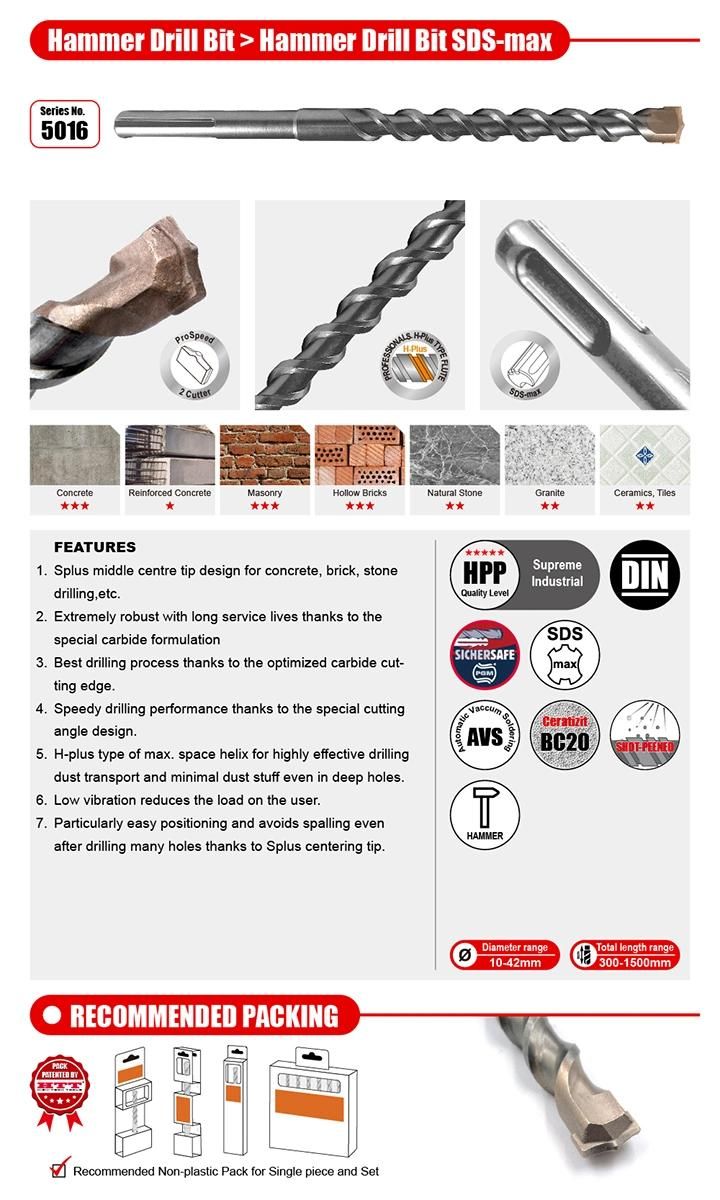

*Hammer Drill SDS max for Concrete Stone Drilling, German Quality, Manufactured by HTT,  2 Cutter W Splus carbide tip made by Ceratizit.

* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbide manufacturers in the globe, which is in Luxemburg.

* H-plus flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-max shank all 100% pass SDS-max gouge inspection.

* SGS approved anti-rust oil treatment to protect the final users under Reach standard.

*Heavy duty hammer drilling the concrete, building materials, stone, brick, etc.




*Available sizes for Choices( The special sizes are also available on the customers' special request. )

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
5016.100300	10	160	300
5016.100340	10	200	340
5016.100540	10	400	540
5016.100690	10	550	690
5016.100920	10	800	920
5016.120300	12	160	300
5016.120340	12	200	340
5016.120540	12	400	540
5016.120690	12	550	690
5016.120920	12	800	920
5016.130340	13	200	340
5016.130540	13	400	540
5016.130690	13	550	690
5016.130920	13	800	920
5016.140340	14	200	340
5016.140540	14	400	540
5016.140690	14	550	690
5016.140920	14	800	920
5016.141320	14	1200	1320
5016.150340	15	200	340
5016.150540	15	400	540
5016.150690	15	550	690
5016.150920	15	800	920
5016.151320	15	1200	1320
5016.160340	16	200	340
5016.160540	16	400	540
5016.160690	16	550	690
5016.160920	16	800	920
5016.161320	16	1200	1320
5016.180340	18	200	340
5016.180540	18	400	540
5016.180690	18	550	690
5016.180920	18	800	920
5016.181320	18	1200	1320
5016.190340	19	200	340
5016.190540	19	400	540
5016.190690	19	550	690
5016.190920	19	800	920
5016.200340	20	200	340
5016.200540	20	400	540
5016.200690	20	550	690
5016.200920	20	800	920
5016.201320	20	1200	1320
5016.220340	22	200	340
5016.220540	22	400	540
5016.220690	22	550	690
5016.220920	22	800	920
5016.221320	22	1200	1320
5016.240340	24	200	340
5016.240540	24	400	540
5016.240690	24	550	690
5016.240920	24	800	920
5016.241320	24	1200	1320
5016.250340	25	200	340
5016.250540	25	400	540
5016.250690	25	550	690
5016.250920	25	800	920
5016.251320	25	1200	1320
5016.260340	26	200	340
5016.260540	26	400	540
5016.260670	26	550	670
5016.260920	26	800	920
5016.261320	26	1200	1320
5016.280370	28	250	370
5016.280570	28	450	570
5016.280670	28	550	670
5016.280920	28	800	920
5016.281320	28	1200	1320
5016.300370	30	250	370
5016.300570	30	450	570
5016.300670	30	550	670
5016.300920	30	800	920
5016.301320	30	1200	1320
5016.320370	32	250	370
5016.320570	32	450	570
5016.320670	32	550	670
5016.320920	32	800	920
5016.321320	32	1200	1320
5016.321500	32	1380	1500
5016.350370	35	250	370
5016.350570	35	450	570
5016.350670	35	550	670
5016.350920	35	800	920
5016.351320	35	1200	1320
5016.360370	36	250	370
5016.360570	36	450	570
5016.360670	36	550	670
5016.360920	36	800	920
5016.361320	36	1200	1320
5016.380370	38	250	370
5016.380570	38	450	570
5016.380670	38	550	670
5016.380920	38	800	920
5016.381320	38	1200	1320
5016.400370	40	250	370
5016.400570	40	450	570
5016.400670	40	550	670
5016.400920	40	800	920
5016.401320	40	1200	1320
5016.420370	42	250	370
5016.420570	42	450	570
5016.420670	42	550	670
5016.420920	42	800	920
5016.421320	42	1200	1320
