• Model NO.：5019
• Carbide Type：Vigin Yg9 SSD Turbo Carbide Patented
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Turbo Wave
• Flute Type：4h-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Clip Hanger, Color Paper Box, Paper Box, Tubes
• Specification：Diameter 10mm to 42mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：360000,Year

Basic Info.

Model NO. 5019 Carbide Type Vigin Yg9 SSD Turbo Carbide Patented Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Turbo Wave Flute Type 4h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 10mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/Year

Product Description

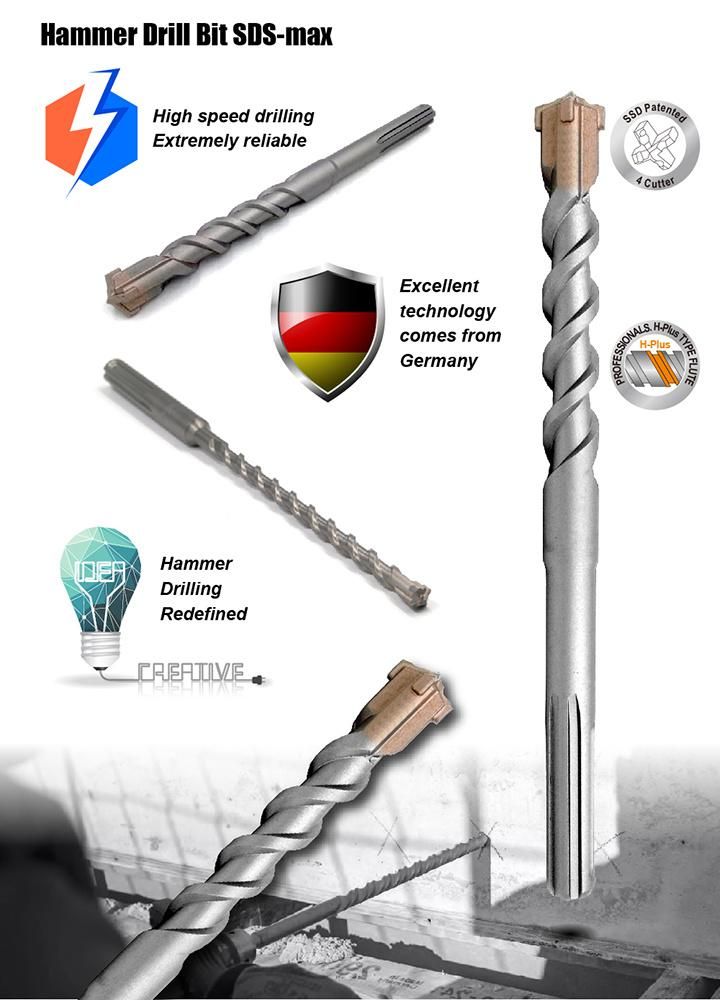

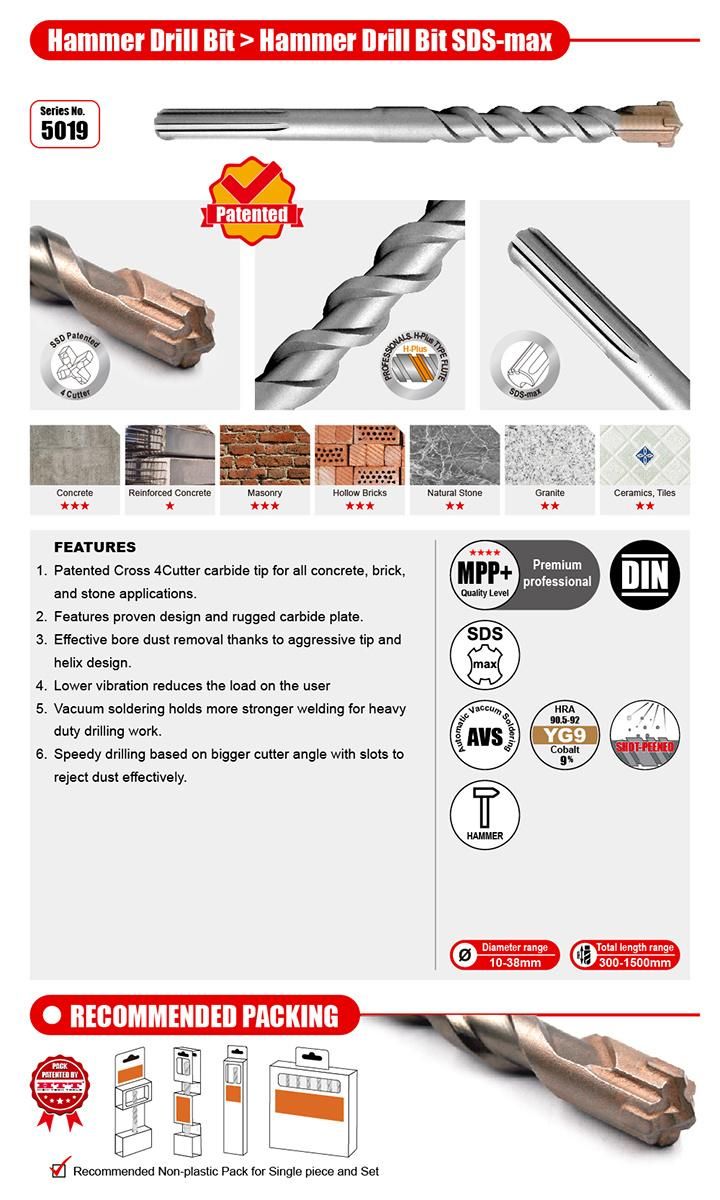

*Patented SSD Turbo Waved Cross 4 Cutter Hammer Drill SDS max, with 4H-plus flutes

* Patented SSD Cross 4 cutter carbide-tipped for durable heavy-duty drilling.

* SDS-max shank under Bosch audited to fit branded rotary hammers.

* H-plus type of flute maximizes the dust-rejection rate in faster drilling.

* Specially hardened steel blank guarantees the best durability to unify the carbide drilling life.

* Fast spiral flute angle design to increase drilling efficiency in building material.

* Design for all concrete drilling.

* The self-centering tip supports more precision.



*Available sizes for Choices( The special sizes are also available on the customers' special request. )

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
5019.100300	10	160	300
5019.100340	10	200	340
5019.100540	10	400	540
5019.100690	10	550	690
5019.100920	10	800	920
5019.120300	12	160	300
5019.120320	12	170	320
5019.120340	12	200	340
5019.120370	12	230	370
5019.120520	12	380	520
5019.120540	12	400	540
5019.120570	12	430	570
5019.120670	12	530	670
5019.120690	12	550	690
5019.120920	12	800	920
5019.121500	12	1380	1500
5019.130320	13	180	320
5019.130340	13	200	340
5019.130540	13	400	540
5019.130670	13	530	670
5019.130690	13	550	690
5019.130920	13	800	920
5019.131500	13	1380	1500
5019.140320	14	170	320
5019.140340	14	200	340
5019.140370	14	230	370
5019.140520	14	380	520
5019.140540	14	400	540
5019.140570	14	430	570
5019.140670	14	530	670
5019.140690	14	550	690
5019.140920	14	800	920
5019.141320	14	1200	1320
5019.141500	14	1380	1500
5019.150340	15	200	340
5019.150540	15	400	540
5019.150670	15	530	670
5019.150690	15	550	690
5019.150920	15	800	920
5019.151320	15	1200	1320
5019.151500	15	1380	1500
5019.160320	16	180	320
5019.160340	16	200	340
5019.160370	16	230	370
5019.160520	16	380	520
5019.160540	16	400	540
5019.160570	16	430	570
5019.160670	16	530	670
5019.160690	16	550	690
5019.160920	16	800	920
5019.161320	16	1200	1320
5019.161500	16	1380	1500
5019.180320	18	180	320
5019.180340	18	200	340
5019.180370	18	230	370
5019.180520	18	380	520
5019.180540	18	400	540
5019.180570	18	430	570
5019.180670	18	530	670
5019.180690	18	550	690
5019.180920	18	800	920
5019.181320	18	1200	1320
5019.181500	18	1380	1500
5019.190340	19	200	340
5019.190540	19	400	540
5019.190670	19	530	670
5019.190690	19	550	690
5019.190920	19	800	920
5019.191500	19	1380	1500
5019.200320	20	180	320
5019.200340	20	200	340
5019.200370	20	230	370
5019.200520	20	380	520
5019.200540	20	400	540
5019.200570	20	430	570
5019.200670	20	530	670
5019.200690	20	550	690
5019.200920	20	800	920
5019.201320	20	1200	1320
5019.201500	20	1380	1500
5019.220320	22	180	320
5019.220340	22	200	340
5019.220370	22	230	370
5019.220520	22	380	520
5019.220540	22	400	540
5019.220570	22	430	570
5019.220670	22	530	670
5019.220690	22	550	690
5019.220920	22	800	920
5019.221320	22	1200	1320
5019.221500	22	1380	1500
5019.240340	24	200	340
5019.240540	24	400	540
5019.240570	24	430	570
5019.240670	24	530	670
5019.240690	24	550	690
5019.240920	24	800	920
5019.241320	24	1200	1320
5019.241500	24	1380	1500
5019.250320	25	180	320
5019.250340	25	200	340
5019.250370	25	230	370
5019.250520	25	380	520
5019.250540	25	400	540
5019.250570	25	430	570
5019.250670	25	530	670
5019.250690	25	550	690
5019.250920	25	800	920
5019.251320	25	1200	1320
5019.251500	25	1380	1500
5019.260340	26	200	340
5019.260540	26	400	540
5019.260670	26	550	670
5019.260920	26	800	920
5019.261320	26	1200	1320
5019.261500	26	1380	1500
5019.280320	28	180	320
5019.280340	28	200	340
5019.280370	28	250	370
5019.280520	28	380	520
5019.280540	28	420	540
5019.280570	28	450	570
5019.280670	28	550	670
5019.280690	28	570	690
5019.280920	28	800	920
5019.281320	28	1200	1320
5019.281500	28	1380	1500
5019.300320	30	180	320
5019.300340	30	200	340
5019.300370	30	250	370
5019.300520	30	400	520
5019.300540	30	420	540
5019.300570	30	450	570
5019.300670	30	550	670
5019.300920	30	800	920
5019.301320	30	1200	1320
5019.301500	30	1380	1500
5019.320320	32	180	320
5019.320340	32	200	340
5019.320370	32	250	370
5019.320520	32	400	520
5019.320540	32	420	540
5019.320570	32	450	570
5019.320670	32	550	670
5019.320920	32	800	920
5019.321320	32	1200	1320
5019.321500	32	1380	1500
5019.350320	35	180	320
5019.350340	35	200	340
5019.350370	35	250	370
5019.350520	35	400	520
5019.350540	35	420	540
5019.350570	35	450	570
5019.350670	35	550	670
5019.350920	35	800	920
5019.351320	35	1200	1320
5019.351500	35	1380	1500
5019.360370	36	250	370
5019.360570	36	450	570
5019.360670	36	550	670
5019.360920	36	800	920
5019.361320	36	1200	1320
5019.380320	38	180	320
5019.380340	38	200	340
5019.380370	38	250	370
5019.380520	38	400	520
5019.380540	38	420	540
5019.380570	38	450	570
5019.380670	38	550	670
5019.380920	38	800	920
5019.381320	38	1200	1320
5019.400320	40	180	320
5019.400340	40	200	340
5019.400370	40	250	370
5019.400540	40	420	540
5019.400570	40	450	570
5019.400670	40	550	670
5019.400920	40	800	920
5019.401320	40	1200	1320
5019.420370	42	250	370
5019.420570	42	450	570
5019.420670	42	550	670
5019.420920	42	800	920
5019.421320	42	1200	1320
