Tct Annular Cutter 50mm Cutting Depth Magnetic Core Drill

Zhejiang Xinxing Tools Co., Ltd.
  • Customized：Customized
  • Length：50mm
  • Type：Core Drill Bit
  • Material：Tungsten Carbide
  • Usage：Metal Drilling
  • Type of Shank：Weldon Shank (Version P)

Base Info

  • Model NO.：DNTP
  • Size：Diameter 61mm-150mm
  • Treatment：All-Ground
  • Performance：Better Endurance
  • Transport Package：Single Packing with PVC Plastic Tube
  • Specification：diameter61mm-150mm depth35mm&50mm&75mm&100mm
  • Trademark：CHTOOLS
  • Origin：China(Mainland)Zhejiang
  • HS Code：820750900
  • Production Capacity：100, 000PCS,Month

Description

Basic Info.

Model NO. DNTP Size Diameter 61mm-150mm Treatment All-Ground Performance Better Endurance Transport Package Single Packing with PVC Plastic Tube Specification diameter61mm-150mm depth35mm&50mm&75mm&100mm Trademark CHTOOLS Origin China(Mainland)Zhejiang HS Code 820750900 Production Capacity 100, 000PCS/Month

Product Description

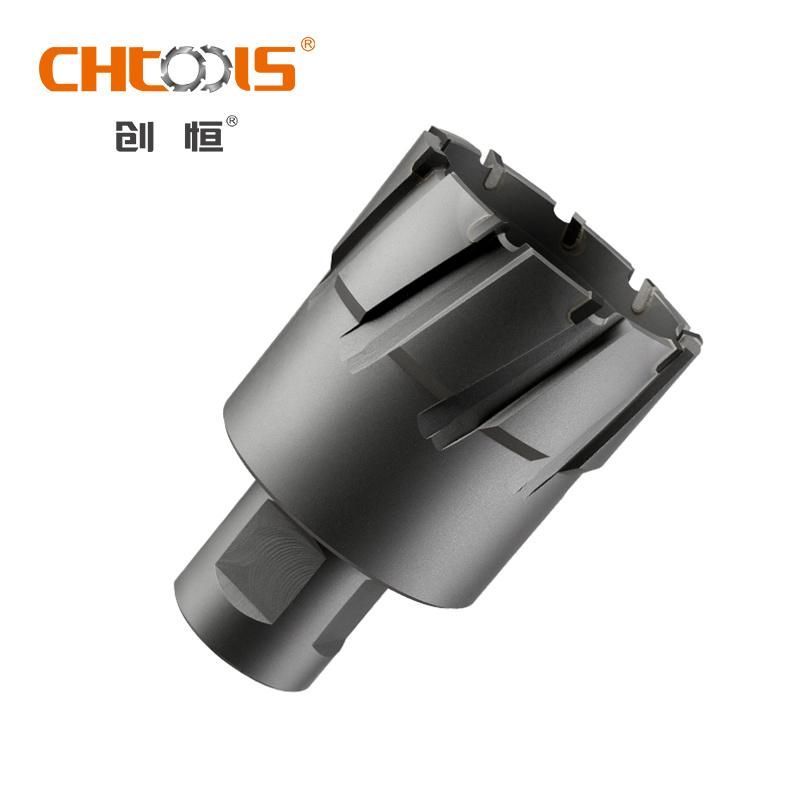

Tct Annular Cutter 50mm Cutting Depth Magnetic Core DrillTct Annular Cutter 50mm Cutting Depth Magnetic Core Drill



Tct Annular Cutter 50mm Cutting Depth Magnetic Core Drill

1. Carbide Tipped core drill with 31.75mm shank.

2. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.

3. Can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. And complex material available for drilling, a higher cutting speed available.

4. Selected speical-purpose carbide tips with multi-cut geometry for ply-cutting and lower friction. Reduced damage of tips and improved performance of ships removal.

5. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.

6. The specifications from the Φ 61mm ~ Φ 150mm, depth of cutting 50mm, 75mm, 100mm series.

7. Can be customized Φ 150mm ~ Φ 200mm, depth can be extended to 200mm according the needs of special occasions

8. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.

TypeSizeTypeSize
DNTP-4061061*50DNTP-4092092*50
DNTP-4062062*50DNTP-4093093*50
DNTP-4063063*50DNTP-4094094*50
DNTP-4064064*50DNTP-4095095*50
DNTP-4065065*50DNTP-4096096*50
DNTP-4066066*50DNTP-4097097*50
DNTP-4067067*50DNTP-4098098*50
DNTP-4068068*50DNTP-4099099*50
DNTP-4069069*50DNTP-41000100*50
DNTP-4070070*50DNTP-41010101*50
DNTP-4071071*50DNTP-41020102*50
DNTP-4072072*50DNTP-41030103*50
DNTP-4073073*50DNTP-41040104*50
DNTP-4074074*50DNTP-41050105*50
DNTP-4075075*50DNTP-41060106*50
DNTP-4076076*50DNTP-41070107*50
DNTP-4077077*50DNTP-41080108*50
DNTP-4078078*50DNTP-41090109*50
DNTP-4079079*50DNTP-41100110*50
DNTP-4080080*50DNTP-41150115*50
DNTP-4081081*50DNTP-41200120*50
DNTP-4082082*50DNTP-41250125*50
DNTP-4083083*50DNTP-41300130*50
DNTP-4084084*50DNTP-41350135*50
DNTP-4085085*50DNTP-41380138*50
DNTP-4086086*50DNTP-41400140*50
DNTP-4087087*50DNTP-41450145*50
DNTP-4088088*50DNTP-41500150*50
DNTP-4089089*50
DNTP-4090090*50
DNTP-4091091*50
