• Model NO.：HD-005
• Size：4-45mm
• Tip Type：Cross,Flat Tip
• Surface Treatment：Sandblasted
• Tip Welding：Automatic and Hand Welding
• Transport Package：plastic tube or plastic hanging bag
• Specification：DIN8035
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. HD-005 Size 4-45mm Tip Type Cross/Flat Tip Surface Treatment Sandblasted Tip Welding Automatic and Hand Welding Transport Package plastic tube or plastic hanging bag Specification DIN8035 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

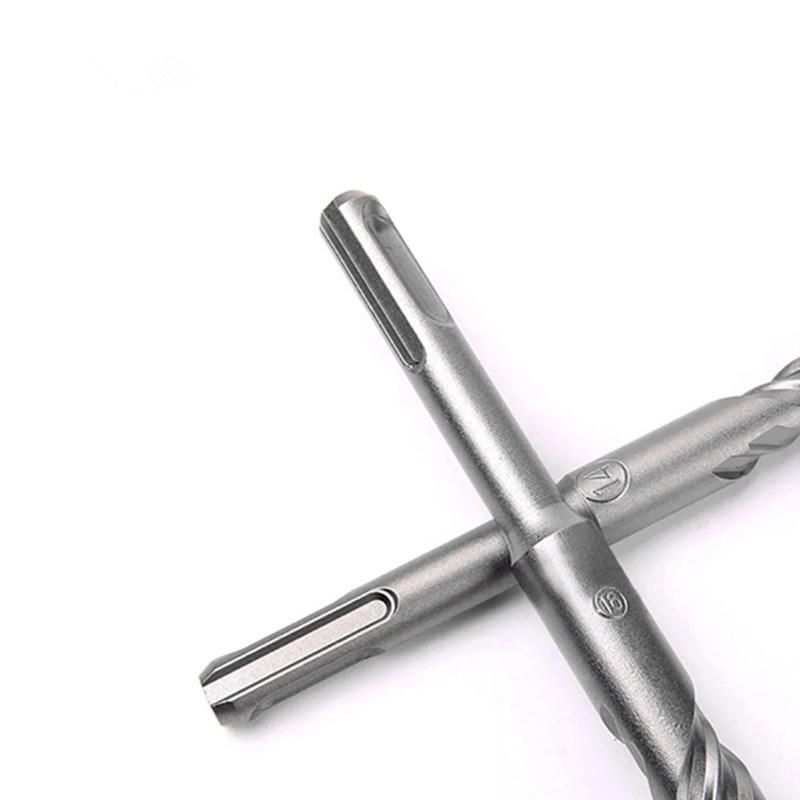

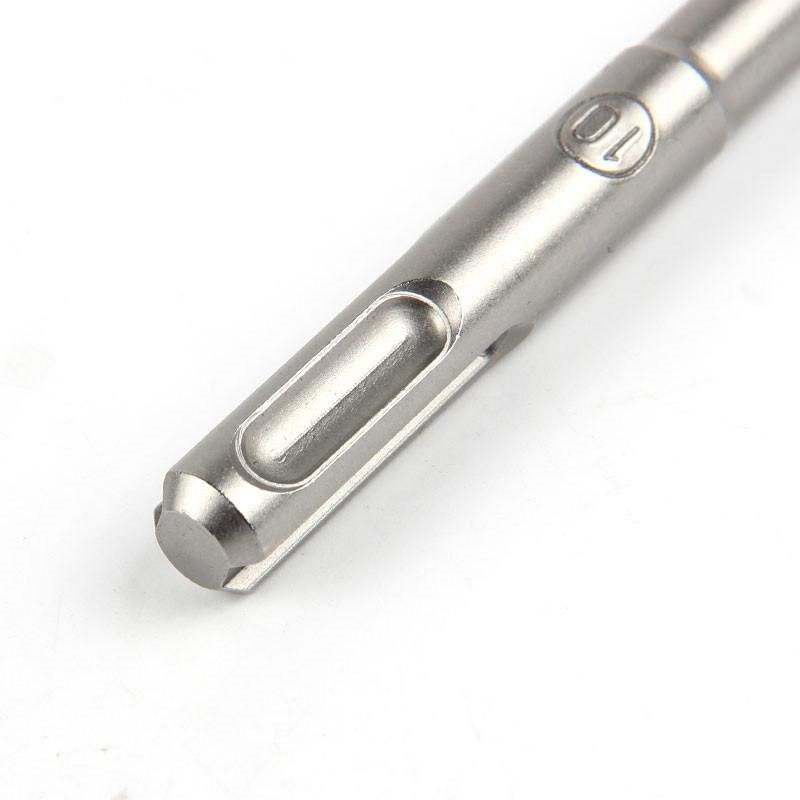

SDS MAX Hammer Drill Bits 2 Flute 2 Cutter
Fit into all hammers with the SDS-max system.
Extremely robust and wear resistant.
Small land and wide flutes design for less heat build up and maximum dual removal.
Conforms to the demands of the institute for construction engineering.
Value plus quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.
Drill Bits set are available.
Inch size are available too.

Specification

Item SDS Max Bit Diameter: 4-40mm Overall length: 110-1000mm Packing: Hanging Card, Hanging Bag, PVC pouch bag, Plastic Tube, Blister Card and Set Box

Diameter	Flute Length	Overall Length	Diameter	Flute Length	Overall Length
Mm	mm	mm	inch	inch	inch
8.0-20.0	100	220	5/16''-1/4''	4''	9''
8.0-40.0	160	280	5/16''-1-3/4''	6''	11''
8.0-40.0	220	340	5/16''-1-3/4''	9''	14''
8.0-40.0	250	370	5/16''-1-3/4''	10''	15''
10.0-40.0	280	400	3/8''-1-3/4''	11''	16''
12.0-40.0	385	505	7/16''-1-3/4''	15''	20''
14.0-40.0	420	540	1/2''-1-3/4''	17''	22''
16.0-40.0	450	570	5/8''-1-3/4''	18''	23''
16.0-40.0	800	920	5/8''-1-3/4''	32''	37''
16.0-50.0	1200	1320	5/8''-2''	47''	52''
