• Model NO.：WD-010
• Transport Package：Plastic Hanging Pouch
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：50, 000PCS,Month

Basic Info.

Model NO. WD-010 Transport Package Plastic Hanging Pouch Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 50, 000PCS/Month

Product Description

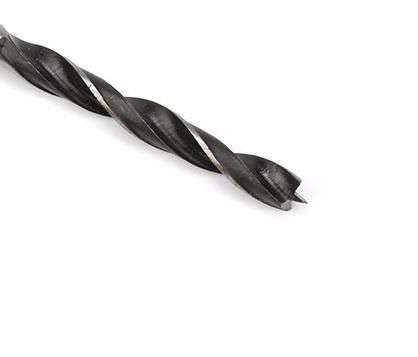

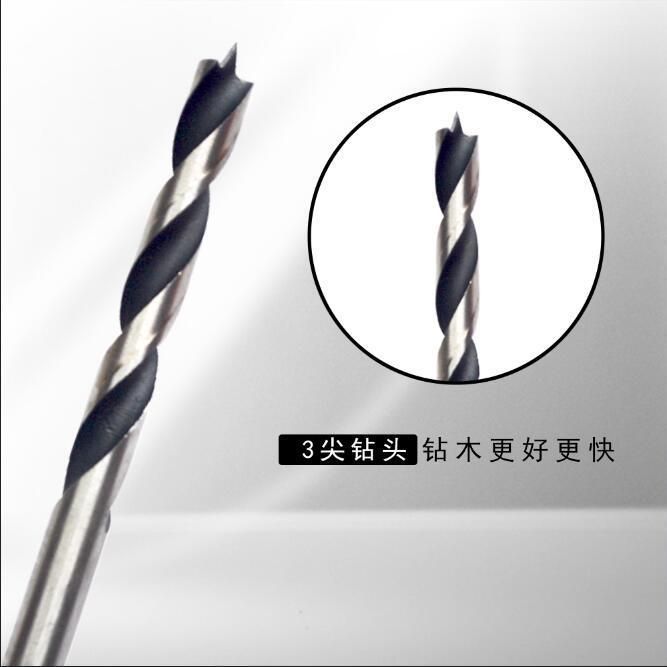

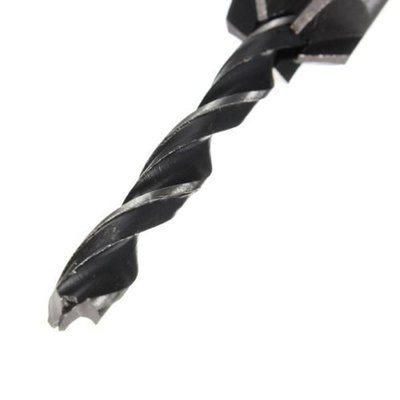

Brad Point Drill Bits - Type B White Flute

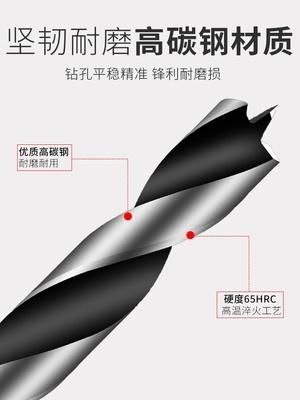

Made of high carbon steel or chrome vanadium (CV) with brad point and 2 shouldered cutting spurs.

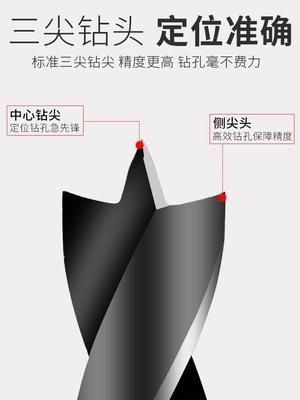

Centre point enters first; Prevents "skating".
Cutting flutes are engineered for optimum chip ejection so drill will not bind and burn out.
For drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
Use in hand drills, electric portable drills, drill presses and lathes.
Shank size larger than 10mm or 3/8" use reduced shank.

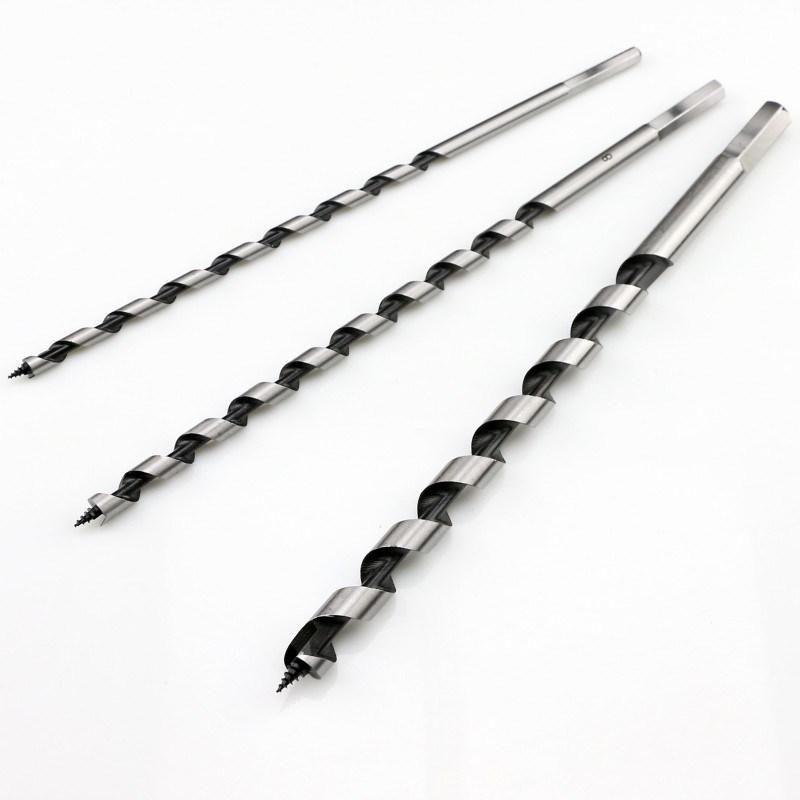

Ex-long Drill bits with 200mm, 300mm, 400mm, 600mm or 8", 12", 16" overall length are available.

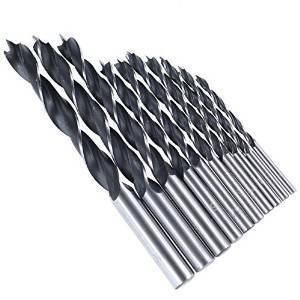

Brad Point Drill Bits Set are available.

Product Name	Double Flutes Black & Bright Brad Point Wood Drill Bit for Precision Hole Drilling
Body Material	High Carbon Steel with Heat Treatment
Process	Rolled
shank	Round Shank ( Quick Change Hex Shank , Hex Shank , SDS Shank are available)
Flute Type	Double Flutes ( Single Flute, Three Flutes, Four Flutes are available)
Surface Finish	Black & Bright ( Color Painting is available)
Tip Type	Brad Point ( Screw Point, Crown Head, Center Point, Tri-Point are available)
Package	PVC Pouch ,PVC Skin Card,Paper Sandwich,PVC Double Blister,PVC Tube (we can pack according to your requirement.)
Features	1.Made from high quality, hardened carbon steel for added durability; 2. Spur cutting edges reduce splintering and ensure a smooth, clean hole; 3. Brad point tip provides accurate positioning for starting the hole; 4.The polished flutes and ground cutting edges give superior chip clearance; 5.Round shank is designed for use in power drills, drill presses, and boring machines; 6.Bit is precision ground for use in furniture making, doweling, cabinetry, and other woodworking applications where an exact hole size is required

Diameter	Over length	Diameter	Over length
mm	mm	inch	Inch
6-26	100	1/4''-1	4''
6-40	125	1/4''-9/16''	5''
6-40	155	1/4''-9/16''	6''
6-40	200	1/4''-9/16''	8''
6-40	230	1/4''-9/16''	9''
6-40	300	1/4''-9/16''	12''
6-40	400	1/4''-9/16''	16''
6-40	460	1/4''-9/16''	18''
6-40	500	1/4''-9/16''	20''
6-40	600	1/4''-9/16''	24''
6-40	800	1/4''-9/16''	32''
6-40	1000	1/4''-9/16''	40''
