• Model NO.：115mm
• Application：DTH Drilling, Coal Mining, Quarrying
• Carbide Type：Yk05
• Diamater Size：105, 115,120,130
• Transport Package：Wooden Box
• Specification：4"
• Trademark：JEAO
• Origin：China
• HS Code：84314999
• Production Capacity：50000 Per Months

Basic Info.

Model NO. 115mm Application DTH Drilling, Coal Mining, Quarrying Carbide Type Yk05 Diamater Size 105, 115,120,130 Transport Package Wooden Box Specification 4" Trademark JEAO Origin China HS Code 84314999 Production Capacity 50000 Per Months

Product Description

Product Description

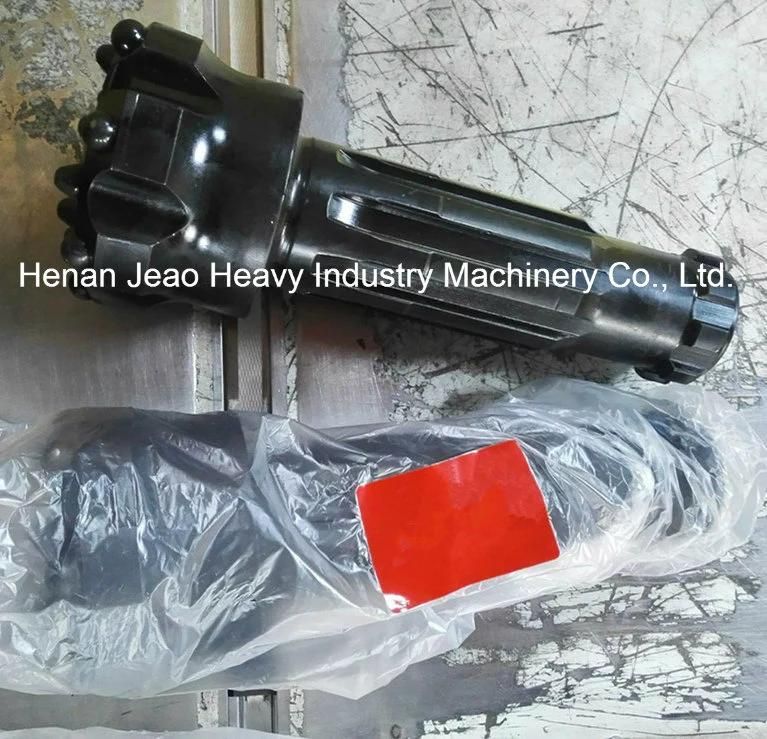

Introduction:

It is a kind of high air pressure dth drill bit ,our newest design.It is also one of the most advanced DTH drill bit in the world.

Application:

Using mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.

Our Advantages:

1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.
3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

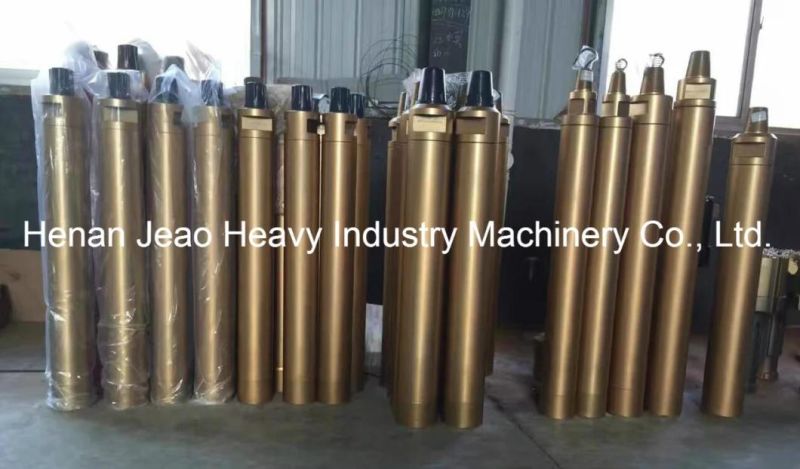

DTH hammer:

3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80

DTH hammer bits:

3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.

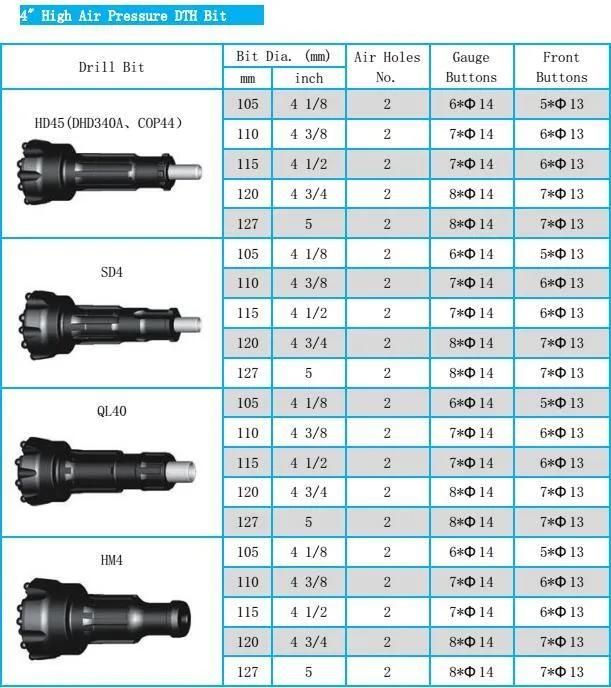

4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80

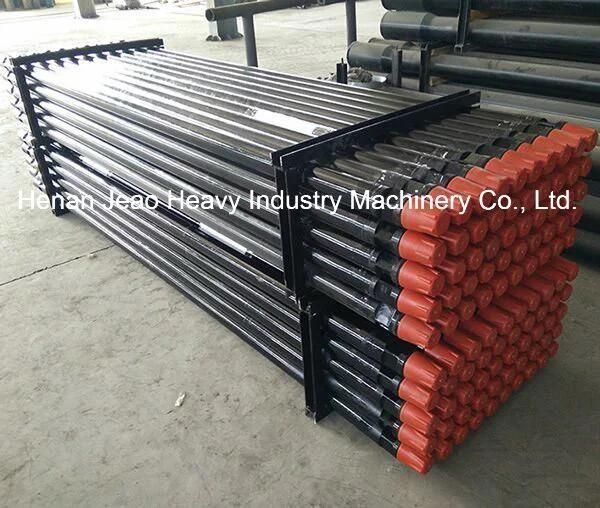

DTH rod range:

Drill rods diameter range: 60mm,64mm 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"
