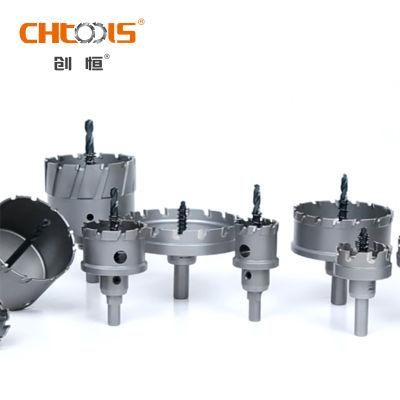

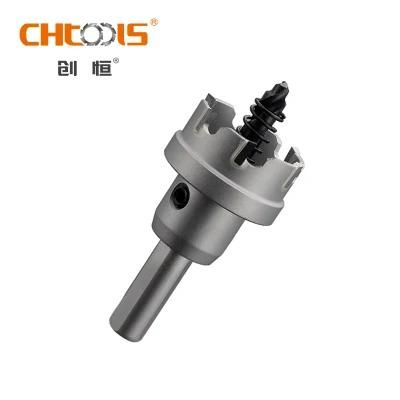

HSS Annular Cutter Universal / Weldon / Fein Shank Core Drill

Zhejiang Xinxing Tools Co., Ltd.
  • Customized：Customized
  • Length：25mm
  • Type：Core Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling
  • Type of Shank：Weldon Shank

Base Info

  • Model NO.：DNHX
  • Shank Diameter：19.05mm
  • Transport Package：Plastic Box Inside, Carton Outside
  • Specification：diameter 12mm-65mm depth25mm&50mm&75mm&100mm
  • Trademark：CHTOOLS
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：100, 000PCS,Month

Description

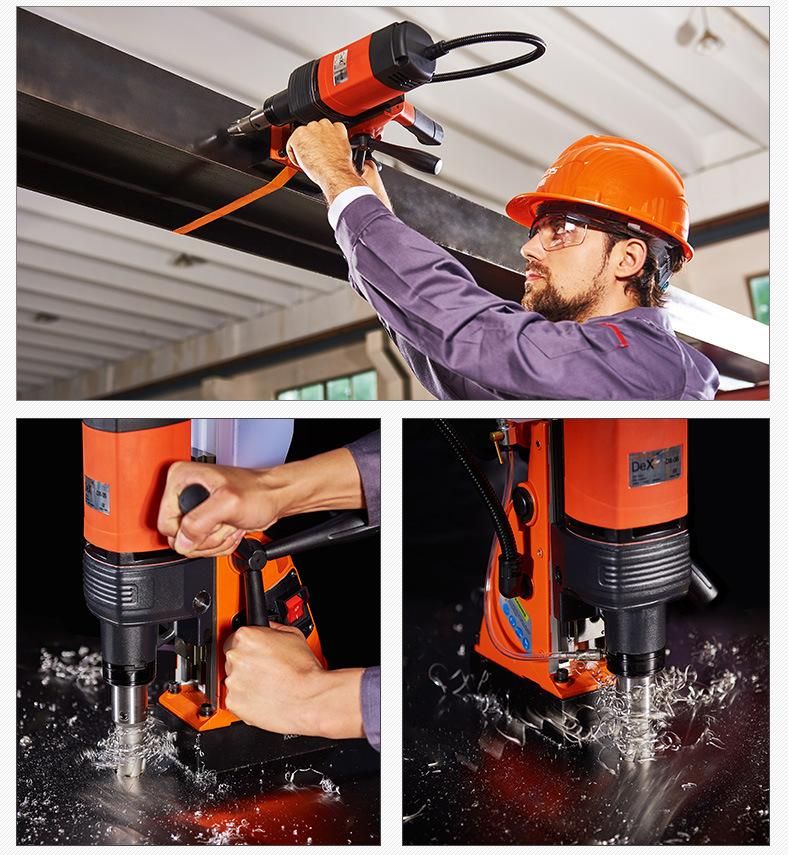

1. Weldon shank, with more stable clamping for stable cutting and finish of holes; 2. Made of super tough high speed steel with multi-cut geometry for ply-cutting and lower friction to reach better performance of endurance and removal of chips; 3. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Euroboor, BDS, Ruko;
ModelDNHX-2DNHX-4DNHX-5DNHX-6
Diameter(mm)φ12-65φ12-65φ18-65φ18-65
Cutting depth(mm)255075100
Matched pilot pinDPB-62077DPB-62102DPB-81130DPB-81160
Specification(mm)6.34*776.34*1027.98*1307.98*160
