Nut Diamond Core Bit Segment for Reinforced Concrete
Quanzhou Sunny Superhard Tools Co., Ltd.- Customized：Customized
- Standard：BV,SGS,ISO
- Length：Taper-length
- Type：Core Drill Bit
- Material：Diamond
- Usage：Masonry Drilling, Concrete Drilling
Base Info
- Diameter(mm)：6 - 350
- Segmnet Dimension(mm)：16*4.0*10 - 24*5.0*10
- Teeth No.(PC)：4 - 20
- Brand Name：Sunny
- Model Number：S-Ds-1002
- Application：Concrete, Stone
- Diamond：Elemen Six
- Product Name：Diamond Core Bit Segments
- ODM：Acceptable
- Shape：Nut
- Transport Package：Neutral Packing
- Specification：ISO9001: 2008, SGS, BV
- Trademark：SUNNY
- Origin：Quanzhou China
- HS Code：82079010
- Production Capacity：10000 Piece,Pieces , Week
Description
Basic Info.
Diameter(mm) 6 - 350 Segmnet Dimension(mm) 16*4.0*10 - 24*5.0*10 Teeth No.(PC) 4 - 20 Brand Name Sunny Model Number S-Ds-1002 Application Concrete, Stone Diamond Elemen Six Product Name Diamond Core Bit Segments ODM Acceptable Shape Nut Transport Package Neutral Packing Specification ISO9001: 2008, SGS, BV Trademark SUNNY Origin Quanzhou China HS Code 82079010 Production Capacity 10000 Piece/Pieces / WeekProduct Description

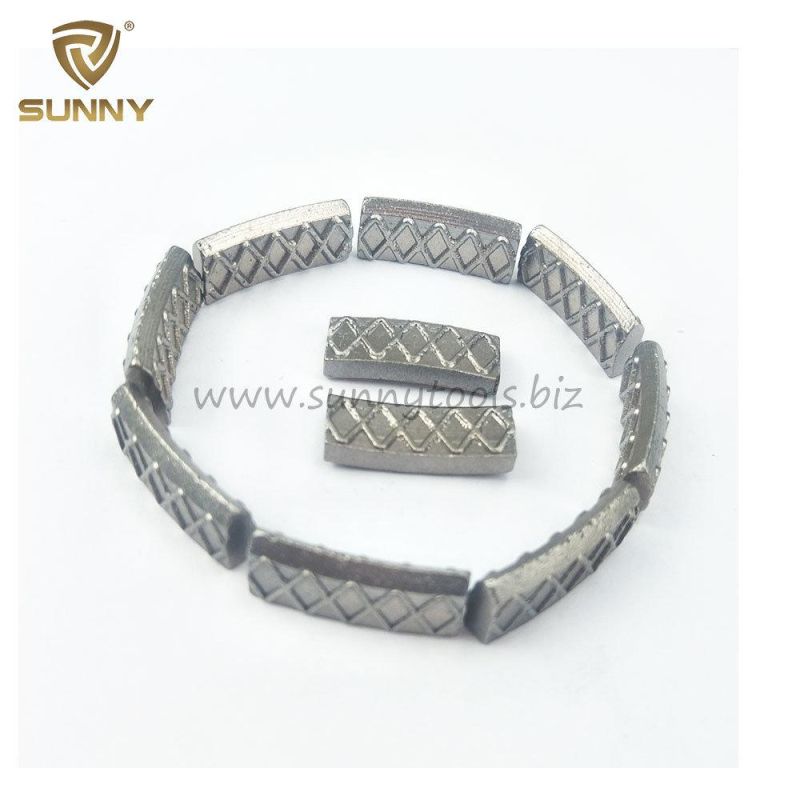

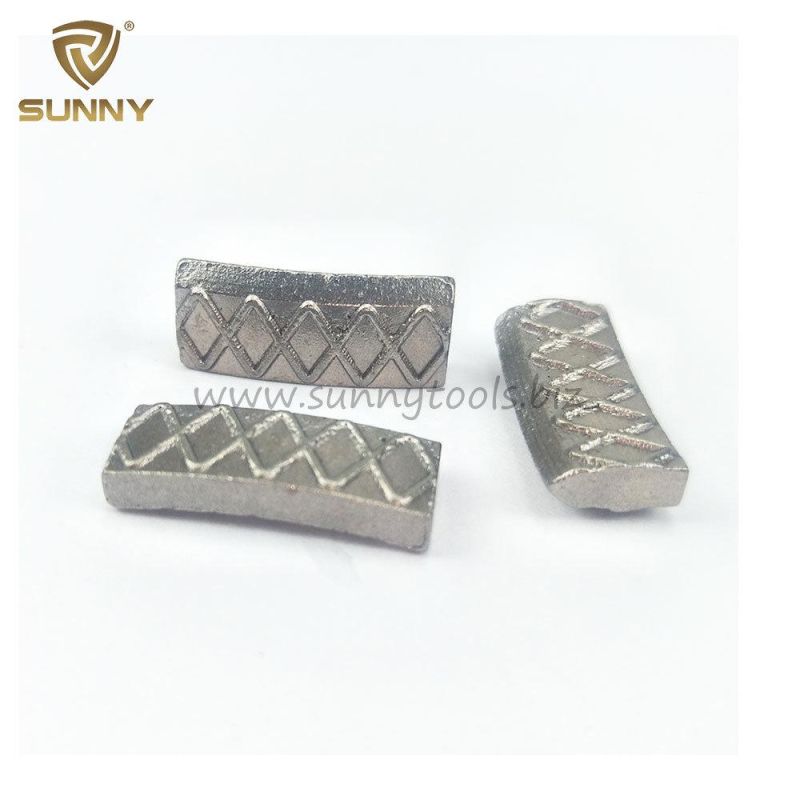

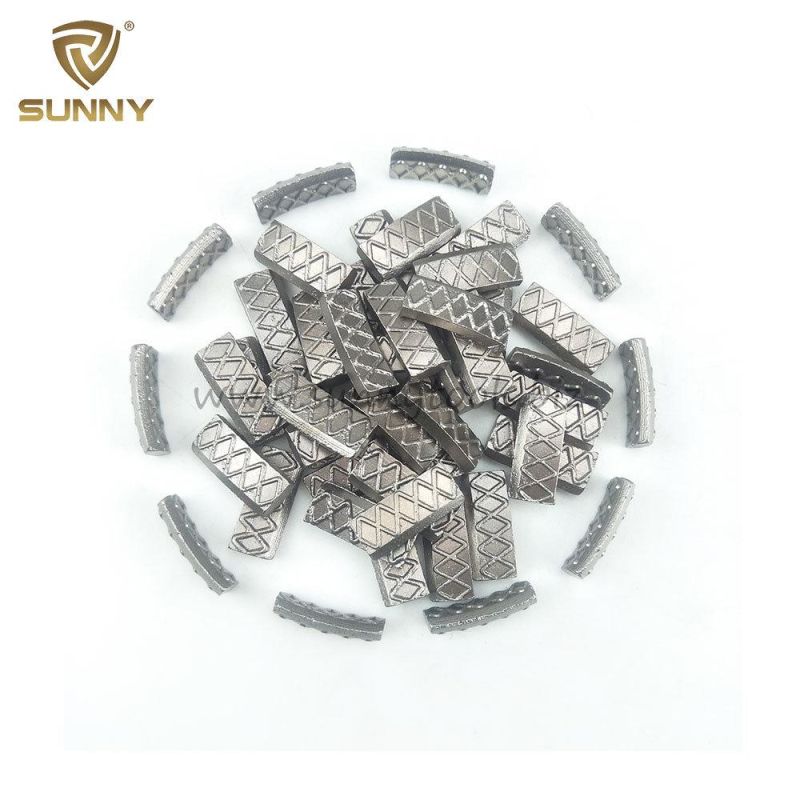

Nut diamond core bit segment for reinforced concreteDiamond Core Drill Bit segments is a cylinder used for cleaning and fast while extracting the material.
Small size of core bit uses for sink or pipe/ faucets hole drilling.
Big size of core bit used for plunge cutting out materials of concrete.
Advantage:
1. High quality and efficiency
2. BV/SGS/ISO
3. OEM/ODM
4. Reasonable price
5. Low energy consumption and long life
6. BV/SGS/ISO
7. OEM/ODM
About us:
We Sunny Super hard Tools Co., Ltd are specialized in diamond tools manufacture with long history.
Our main products including:
1. Cutting Tools (Saw blade, Wire saw, Diamond segments...)
2. Grinding Polishing Tools (Calibration roller, flickers, Frankfurt, Cup wheel, Profiling wheel, polishing pad...)
3. Drilling tools (Finger bit, core drill...)
Outer Diameter | Segmnet Dimension | Teeth No. |
| mm | mm | pc |
32 | 16*4.0* 10 | 4 |
37 | 16*4.0* 10 | 5 |
40 | 16*4.0* 10 | 5 |
42 | 16*4.0* 10 | 5 |
47 | 16*4.0* 10 | 6 |
52 | 16*4.0* 10 | 7 |
56 | 16*4.0* 10 | 8 |
63 | 24*4.5* 10 | 6 |
76 | 24*4.5* 10 | 8 |
83 | 24*4.5* 10 | 8 |
90 | 24*4.5* 10 | 9 |
102 | 24*4.5* 10 | 9 |
108 | 24*4.5* 10 | 10 |
120 | 24*4.5* 10 | 11 |
132 | 24*4.5* 10 | 12 |
160 | 24*5.0* 10 | 13 |
182 | 24*5.0* 10 | 14 |
202 | 24*5.0* 10 | 16 |
250 | 24*5.0* 10 | 17 |
300 | 24*5.0* 10 | 18 |
350 | 24*5.0* 10 | 20 |
