• Model NO.：ORS5193SITU
• Bit Type：Ors5193situ
• Size：17-1,2
• No. of Nozzles：10r
• Gauge Length：3-1,4
• API Reg. Pin Conn：7-5,8
• Hydraulic Flow Rate(Gpm)：950-1430
• Rotation Speed(Rpm)：60-250
• Weight on Bit(Lklbs)：9-43
• Transport Package：Wooden Case
• Specification：9-43lklbs
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84749000
• Production Capacity：10000PCS,Month

TYPESIZEAPI PIN SIZEWEIGNT(KGS)INCHMM8 1/2M1234AL8 1/2215.94 1/2REG708 1/2M3235AL8 1/2215.94 1/2REG708 1/2M3235BLF8 1/2215.94 1/2REG708 1/2M2235L8 1/2215.94 1/2REG708 1/2M3236AL8 1/2215.94 1/2REG708 3/4M3235AL8 3/4222.34 1/2REG729 1/2M3235L9 1/2241.36 5/8REG859 1/2M3236L9 1/2241.36 5/8REG8512 1/4M323512 1/4311.16 5/8REG105

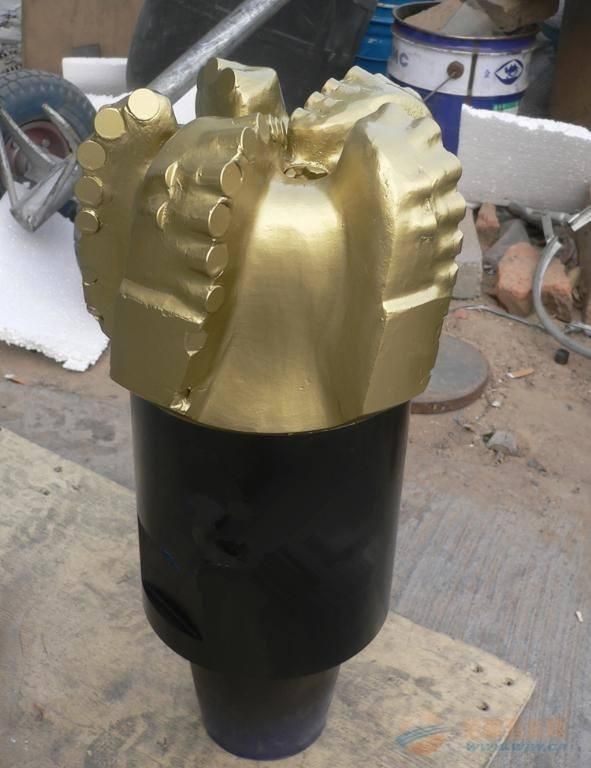

5-Blade steel body PDC Bits

• 5 blades,large PDC cutter,deep blade and wide junk slot design may obtain high ROP in soft To medium hard formation.
• Slant gauge design may increase bit drilling stability.
• Bit body is made from an integrated alloy forging and finished by advanced numerical control processing equipment.
• Hard-facing is applied to main surfaces of bit to increase bit abrasive-resistance and anti-corrosion.

Technical Data



Bit typeSizeNo. of NozzlesGauge length

API reg.

pin conn

Hydraulic flow rate(gpm)Rotation speed(rpm)Weight on bit(lklbs)ORS5193SITU17-1/210R3-1/47-5/8950-143060-2509-43ORS5192SITU12-1/47R36-5/8590-98060-3005-30ORS5194SITU12-1/47R36-5/8590-98060-3005-30ORS5194SITU9-1/27R36-5/8550-79060-3006-30ORS5193SITU8-1/22R24-1/2380-67060-3005-25
