• Model NO.：TD-032
• Surface Finishing：Black and Gold
• Point Angle：135 Degree Split Point
• Brand：OEM
• Application：for Metal Stainless Steel Aluminium PVC Iron
• Transport Package：PVC Bag, Plastic Tube, Skin Card, Blister etc.
• Specification：33,64" - 1-1,2"
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：500, 000PCS,Month

Basic Info.

Model NO. TD-032 Surface Finishing Black and Gold Point Angle 135 Degree Split Point Brand OEM Application for Metal Stainless Steel Aluminium PVC Iron Transport Package PVC Bag, Plastic Tube, Skin Card, Blister etc. Specification 33/64" - 1-1/2" Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 500, 000PCS/Month

Product Description

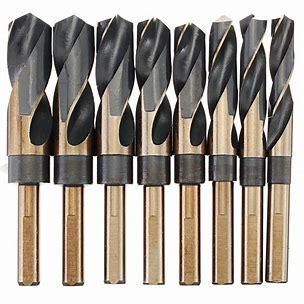

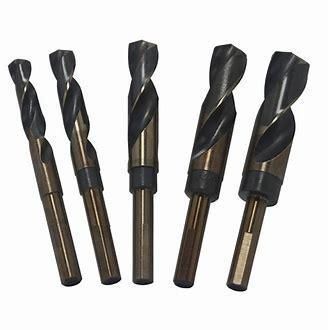

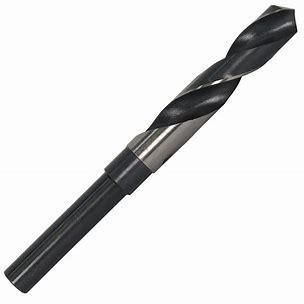

Product Name: HSS Silver & Deming 1/2 Inch 3 Flats Reduced Shank Twist Drill Bit for Metal

Material: HSS  (HSS Cobalt is Available)

Process: Milled  (Fully Ground, Rolled & Polished, Rolled are Available)

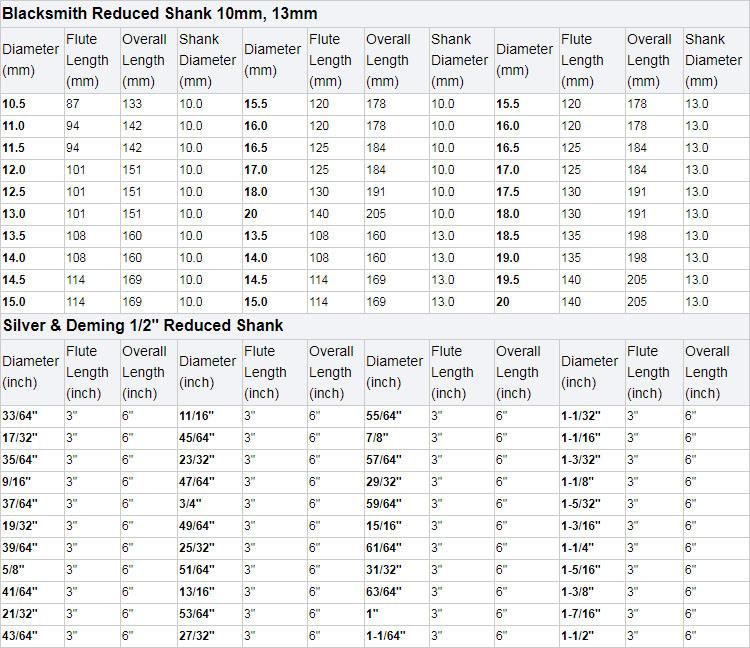

Standard: Blacksmith Reduced Shank 10mm, 13mm  (DIN338, Stub DIN1897, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank are Available)

 Silver & Deming 1/2" Reduced Shank (Jobber Length, Stub Screw Machine Length, Long Taper Length,Airctraft Extensoin, Extra Long 12", 18", 24" are Available)

Size: 33/64" - 1-1/2"

Point Type: 135 Degree Split Point  (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)

Shank Type: Tri-Fltas Reduced Shank (Straight Shank, Hex Shank, Double R Hex Shank,Threaded Hex Shank, Taper Shank are Available)

Helix Angle: Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)

Web & Flute Type: Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)

Surface Finish: Black & Gold (Black Oxide, Bright, Amber Color, Titanium, Black & Bright are Available)

Package: 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.

Features:

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
