• Model NO.：TD-022
• Transport Package：Plastic Box
• Specification：13.0mm ~ 50.0mm
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. TD-022 Transport Package Plastic Box Specification 13.0mm ~ 50.0mm Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 20, 000PCS/Month

Product Description

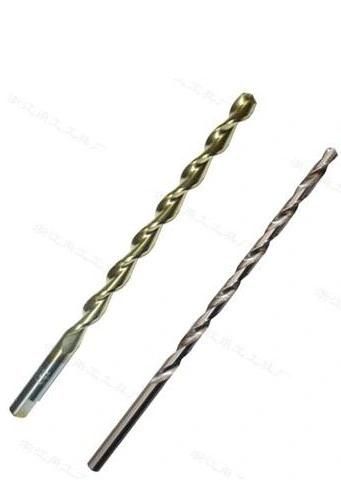

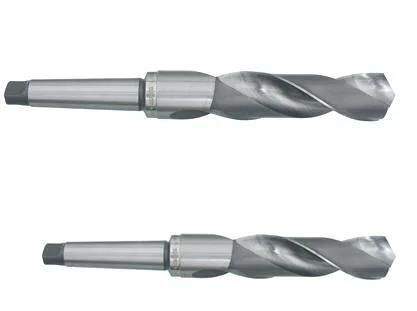

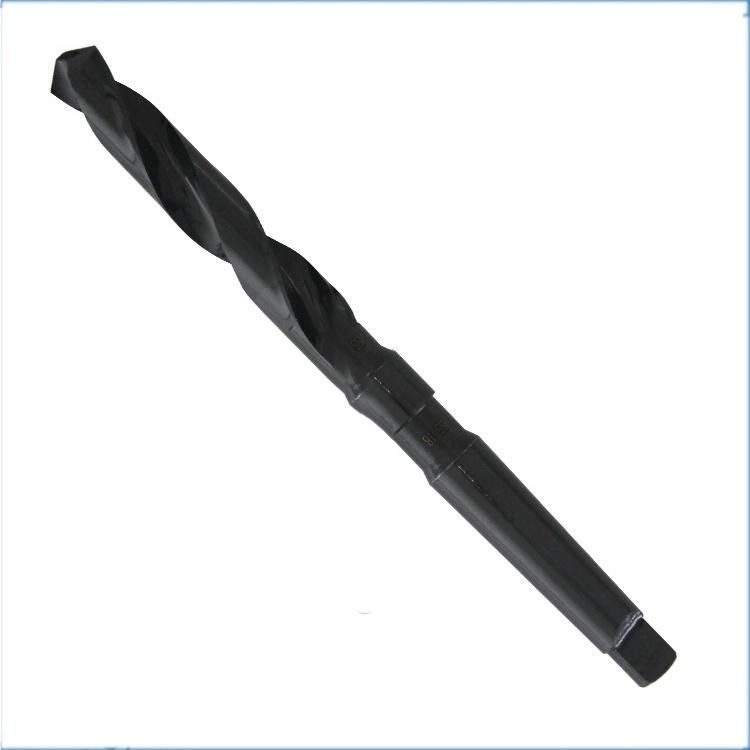

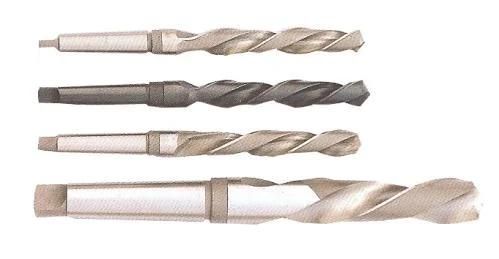

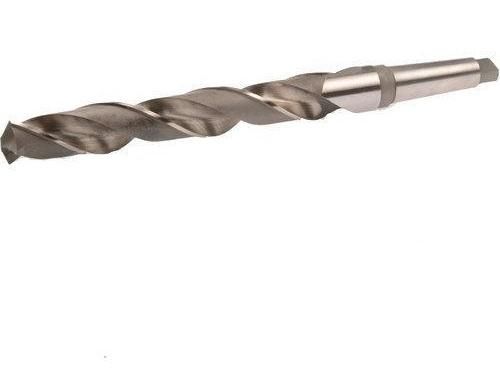

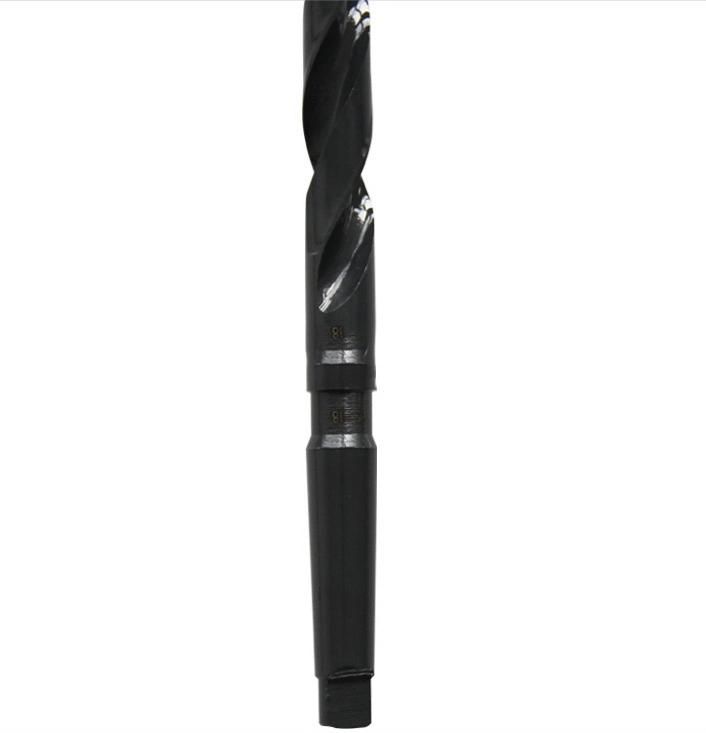

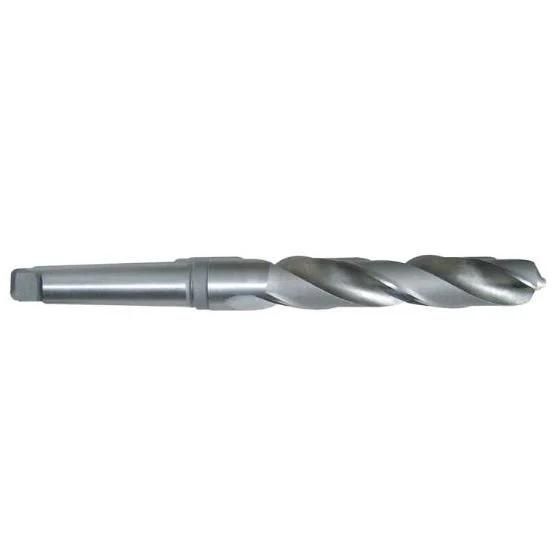

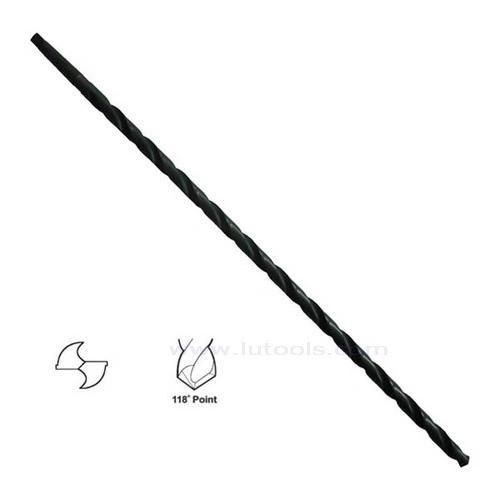

HSS Taper Shank Extra Length Drill Bits
High Speed Steel Extra Length Taper Shank Drills with a 118 degree point are designed for drilling very deep holes or drilling in difficult to reach locations. They are especially preferred for drilling medium to large diameter holes.
Industrial grade cobalt high speed steel are available on request.
Right hand cutting direction; Standard two flute design.
135 degree split point are available on request...
Black oxide finish or Bright finish are available on request.

Metric Size are available ( DIN Standard ):
13.0mm ~ 50.0mm
Drill Length are available:
250mm / 300mm / 350mm / 400mm / 450mm / 500mm / 550mm / 600mm /
650mm / 700mm / 750mm / 800mm / 850mm / 900mm / 1000mm

Inch Size are available ( ANSI B94.11M Standard ):
1/4" ~ 2"
Drill Length are available:
8" x 12" / 9" x 15" / 10" x 15" / 11" x 15" / 12" x 18" / 13" x 18" / 14" x 18" /
18" x 24" / 19" x 24" / 16-1/2" x 24"
