• Model NO.：SCY-2050
• RoHS：Orange
• Transport Package：Woodencase,Carton
• Specification：CE RoHS
• Trademark：CAYKEN
• Origin：Shang Hai China
• Production Capacity：200sets Rer Month

Basic Info.

Model NO. SCY-2050 RoHS Orange Transport Package Woodencase/Carton Specification CE RoHS Trademark CAYKEN Origin Shang Hai China Production Capacity 200sets Rer Month

Product Description

Product Category: Diamond Drill Series>Diamond Drill

Product Name: SCY-2050

Drilling range: θ 15-205mm

Rated voltage: 110/220V

Rated frequency: 50-60Hz

Rated input power: 4000W

No-load speed: 700r/min

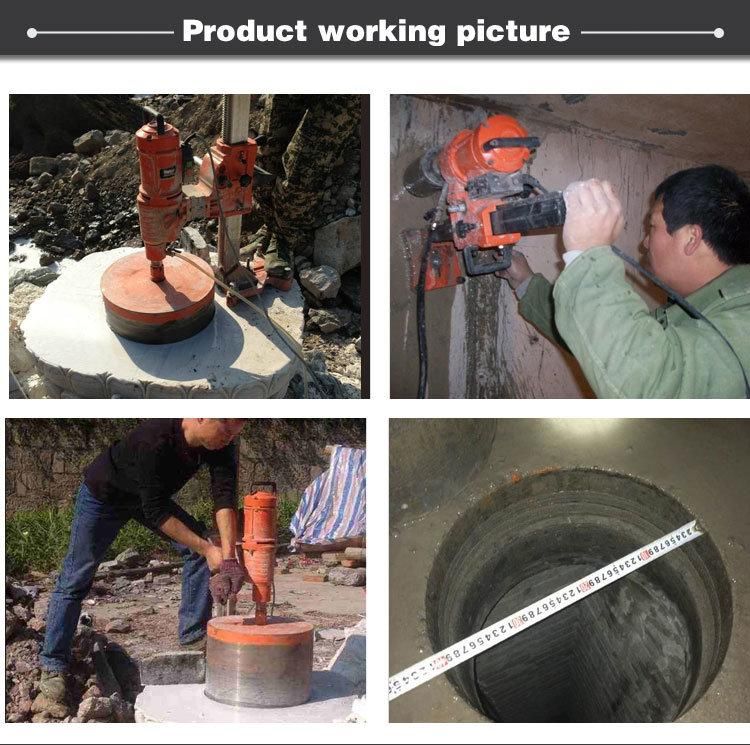

Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.

The velocity-adjustable diamond core drilling machine have function of soft-starting, constant power, overloading protection and steoless speed-regulating, etc.

Model	SCY-2050	SCY-2350	SCY-2550	SCY-3050	SCY-3550
Max Drilling	ø205MM	ø230MM	ø255MM	ø305MM	ø355MM
Rated Voltage	220V	220V	220V	220V	220V
Input Power	3900W	4080W	4250W	4550W	4780W
No-load Speed	700RPM	600RPM	580RPM	380RPM	300RPM
N.W.	22KGS	23KGS	27KGS	30KGS	32KGS
G.W.	24KGS	25KGS	29KGS	32KGS	34KGS
Size	35*22*87CM	35*22*97CM	35*22*97CM	42*29*97CM	42*29*97CM
