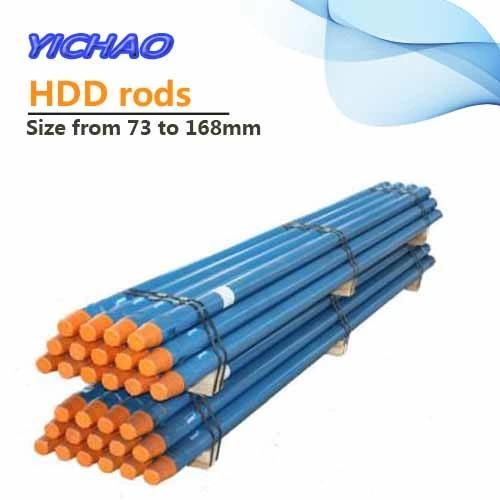

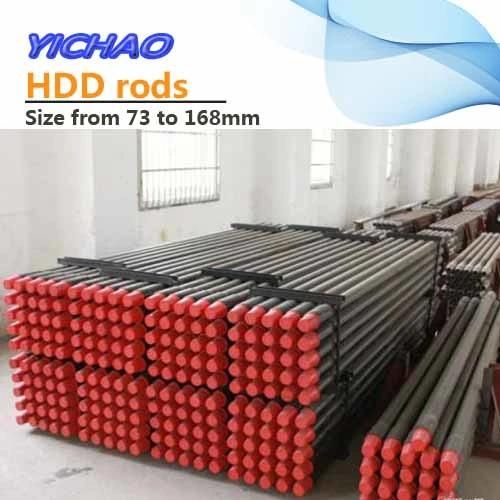

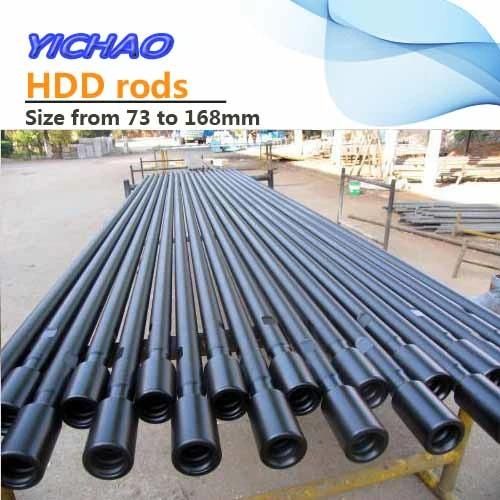

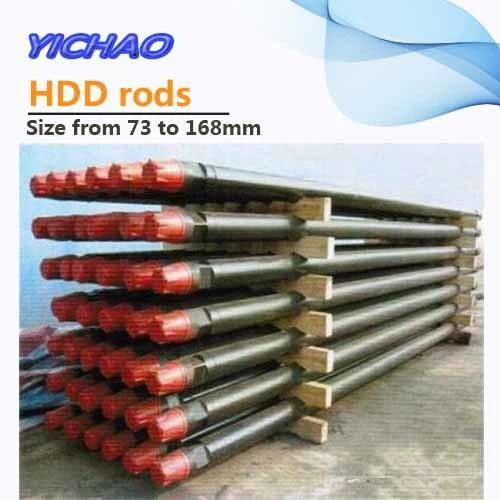

All Models of Horizontal Directional Drill Drilling HDD Rig Rods
Wuhan Yichao Technology Equipment Co., Ltd.- Length：3-12 Meter
- Usage：Horizontal Directional
- Material：Carbon Steel
- Transport Package：Bulk
- Specification：3-12 meter
- Trademark：North Star
Base Info
- Model NO.：S135
- Origin：China
- HS Code：843143200
- Production Capacity：50000,Year
Description
Rods
effective
lengthWeight Torque Minimum
radius of
curvature Angle
bending
length Max
bending
angle Max
tile
angle mm inch mm inch mm in mm ft mm kg Nm m m degree % φ60*7.1*3000 S135 Intergral ZX60 2.375 60 0.279 7.1 2.68 68 9.844 3000 32 6500 33 52 5.2 9 φ73*8.1*3000 S135 Intergral NC23 2.875 73 0.315 8 3.17 82.5 9.844 3000 46 13000 45 71 3.8 6 φ73*10*3000 S135 Intergral NC26 2.875 73 0.355 9 3.45 88 9.844 3000 56 16000 62 97 2.8 5 φ73*10*4500 S135 Intergral NC26 2.875 73 0.355 9 3.45 88 14.765 4500 56 16000 56 88 4.6 8 φ83*9*3000 S135 Intergral ZX83 3.25 83 0.355 9 3.63 92 9.844 3000 61 18000 73 115 2.4 4 φ83*9*4500 S135 Intergral ZX83 3.25 83 0.355 9 3.63 92 14.765 4500 79 18000 65 102 4.0 7
effective
length
radius of
curvature
bending
length
bending
angle
tile
angle
