• Model NO.：MK-MNX560
• Processing Type：Forging
• Application：Water Wells,Geothermal Wells, Building, etc
• Surface Treatment：Spray-Paint
• Payment Terms：L,C, T,T, Western Union
• Transport Package：Wooden Case
• Trademark：MING
• Origin：China
• HS Code：8207199000
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. MK-MNX560 Processing Type Forging Application Water Wells,Geothermal Wells, Building, etc Surface Treatment Spray-Paint Payment Terms L/C, T/T, Western Union Transport Package Wooden Case Trademark MING Origin China HS Code 8207199000 Production Capacity 20000PCS/Year

Product Description

MNX slide block casing bit for DTH Hammer
Product details:
Kingdrilling Casing drilling system is designed for unstable ground conditions. In the process of drilling, it could carry the casing tube down to the hole and protect wall to achieve drilling work.

MNX system is consists of pilot bits and slider bits. The principle as below: pilot bits press down, at the same time, wings opened to carry casing tube into a hole. After finished, life up the pilot bit then the wings will be closed. It is suitable for 406-813mm tube in diameter.


Model	Hole dia(mm)	Weight(KG)	Closed dia(mm)	Pilot dia(mm)	Total length (mm)	Case dia(OD*ID)	Spline
MK-MNX365	432	350	365	381	1100	406*387	N120,N125
MK-MNX410	478	450	412	430	1100	457*435	N125
MK-MNX460	530	580	460	475	1100	508*483	N125,SD18
MK-MNX510	580	760	509	527	1180	559*533	N180,SD18
MK-MNX560	635	830	560	581	1180	610*584	N180,SD18
MK-MNX610	695	960	600	630	1200	660*632	N240
MK-MNX660	735	1180	656	681	1207	711*685	N240
MK-MNX710	785	1400	710	730	1207	762*736	N240
MK-MNX745	838	1600	745	776	1207	813*780	N240

Order Guide: Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
5. What is the materials?
Steel is TIMKEN, Alloy is from T6 from Element Six.

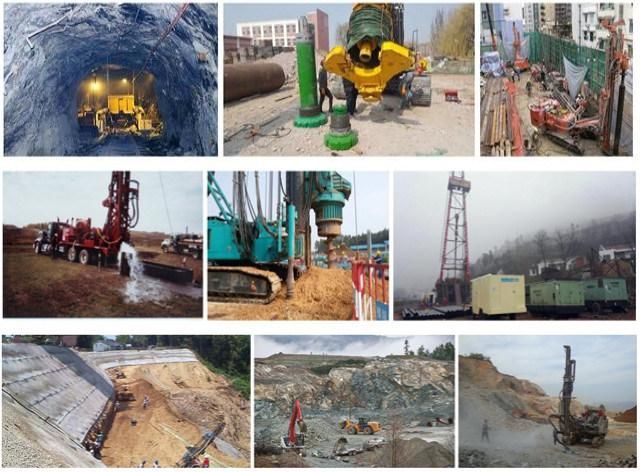

Product Application:


Transport:


Package and Delivery:
Packed by Carton or Wooden cases.

Delivery:

1. Goods in stock can be delivered within 5 days.
2. DTH Bits production time is about 15 days.
3. DTH Hammer product time is about 30 days.

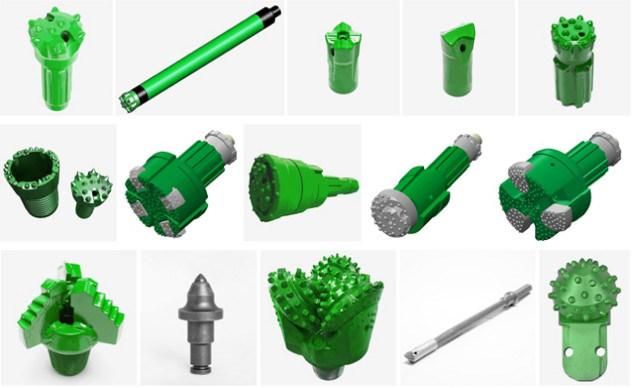

More products:
