• Model NO.：MK-MRS90
• Processing Type：Forging
• Application：Water Wells,Geothermal Wells, Building, etc
• Surface Treatment：Spray-Paint
• Payment Terms：L,C, T,T, Western Union
• Transport Package：Wooden Case
• Trademark：MING
• Origin：China
• HS Code：8207199000
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. MK-MRS90 Processing Type Forging Application Water Wells,Geothermal Wells, Building, etc Surface Treatment Spray-Paint Payment Terms L/C, T/T, Western Union Transport Package Wooden Case Trademark MING Origin China HS Code 8207199000 Production Capacity 20000PCS/Year

Product Description

MRS concentric under reamer wave slider bit casing drilling system
Product details:
MRS concentric wave slider bit casing drilling system is made up of guide device and reamer bit which adopted graphic design to enhance penetration rate.
Expanding principle as below:
Guide device calms down pressure, open expanding wings in clockwise and shut down expanding wings in anticlockwise. The concentric slider bit casing drilling system is used for loose rock and can greatly increase the penetration rate. This concentric casing drilling bit is suitable for 219-813 tube in diameter.

Product advantage:
 1.Enhance penetration and perpendicularity
 2.Reduce torque requirements
 3.Deal with straight,oblique hole and other angle holes
 4.Lowest effect with environment

Model	Hole dia.(mm)	Weight (KG)	Closed dia(mm)	Pilot dia (mm)	Total length(mm)	Case Dia(OD*ID)	Spline
MK-MRS190	238	80	190	203	550	219*206	DHD360,QL6,SD6
MK-MRS215	276	100	215	236	590	254*240	DHD380,QL8,SD8
MK-MRS235	293	110	236	251	590	273*254	DHD380,QL8,SD8
MK-MRS240	293	115	241	256	590	273*260	DHD380,QL8,SD8
MK-MRS280	345	180	280	300	740	323*302	SD10
MK-MRS315	373	240	315	336	1050	356*337	N120
MK-MRS365	432	350	365	381	1100	406*387	N120,N125
MK-MRS410	478	460	412	430	1100	457*435	N125
MK-MRS460	530	585	460	475	1100	508*483	N125,SD18
MK-MRS510	580	860	509	527	1180	559*533	N180,SD18
MK-MRS560	635	910	560	581	1180	610*584	N180,SD18
MK-MRS610	695	1100	600	630	1200	660*632	N240
MK-MRS660	735	1200	656	681	1207	711*685	N240
MK-MRS710	785	1480	710	730	1207	762*736	N240
MK-MRS745	838	1650	745	776	1207	813*780	N240

How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
 2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
5. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
6.What is the materials?
Steel is TIMKEN, Alloy is from T6 from Element Six.

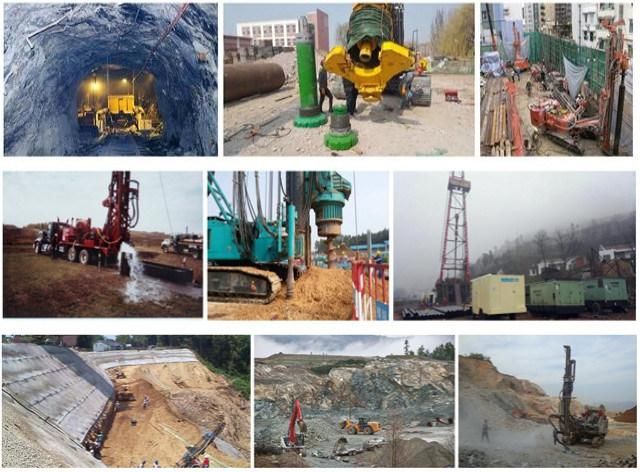

Product Application:


Transport:


Package and Delivery:
Packed by Carton or Wooden cases.

Delivery:

1. Goods in stock can be delivered within 5 days.
2. DTH Bits production time is about 15 days.
3. DTH Hammer product time is about 30 days.
