Pgm German Quality Tct Multipurpose Universal Drill V-Grooved Tipped Cylinder Shank for Masonry Stone Metal Wood Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:70mm to 150mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.:3773
- Carbide Tip Type:Virgin Extra Thick Yg6X V Grooved
- Steel Shaft Type:40cr
- Surface Treatment:Shot-Peened
- Shank Type:Cylindrical
- Flute Type:U
- Tip Grinding:Diamond Ground V Grooved Edges
- Welding Type:AVS.(Automatic Vacuum Soldering)
- Certificate:Pgm
- Transport Package:Paper Hanger, PVC Bag, Skin Pack, Blister Pack
- Specification:4mm to 14mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:2400000
Description
Basic Info.
Model NO. 3773 Carbide Tip Type Virgin Extra Thick Yg6X V Grooved Steel Shaft Type 40cr Surface Treatment Shot-Peened Shank Type Cylindrical Flute Type U Tip Grinding Diamond Ground V Grooved Edges Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 4mm to 14mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000Product Description

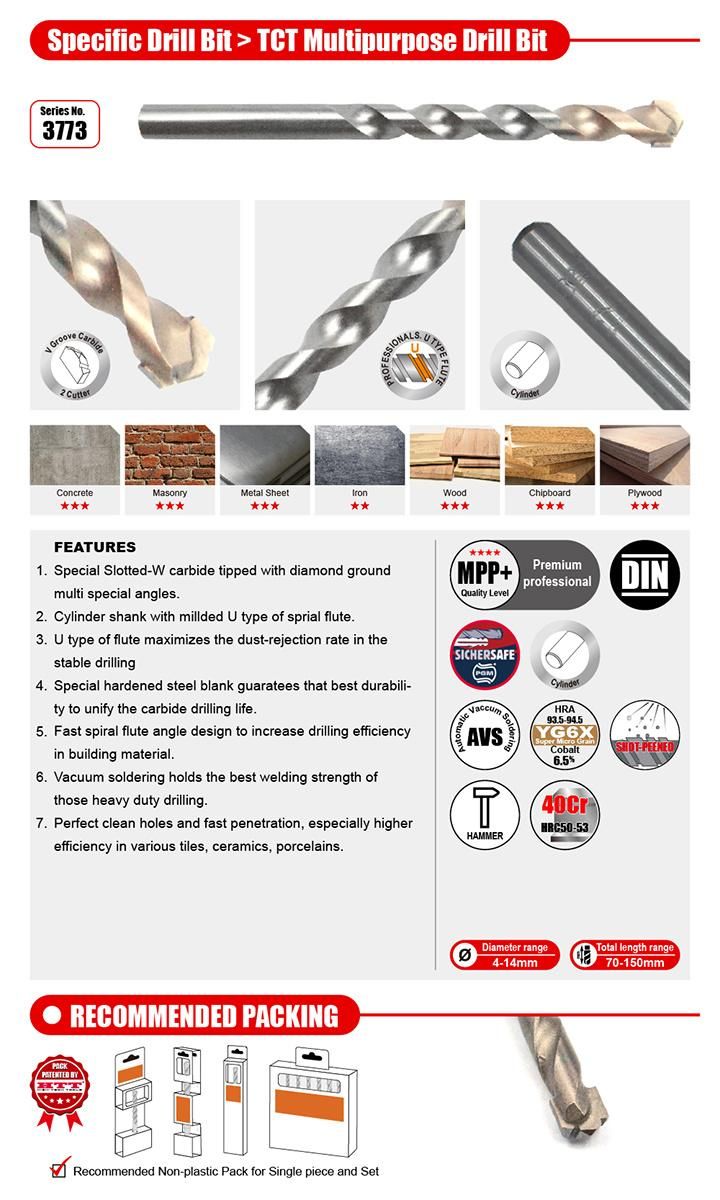

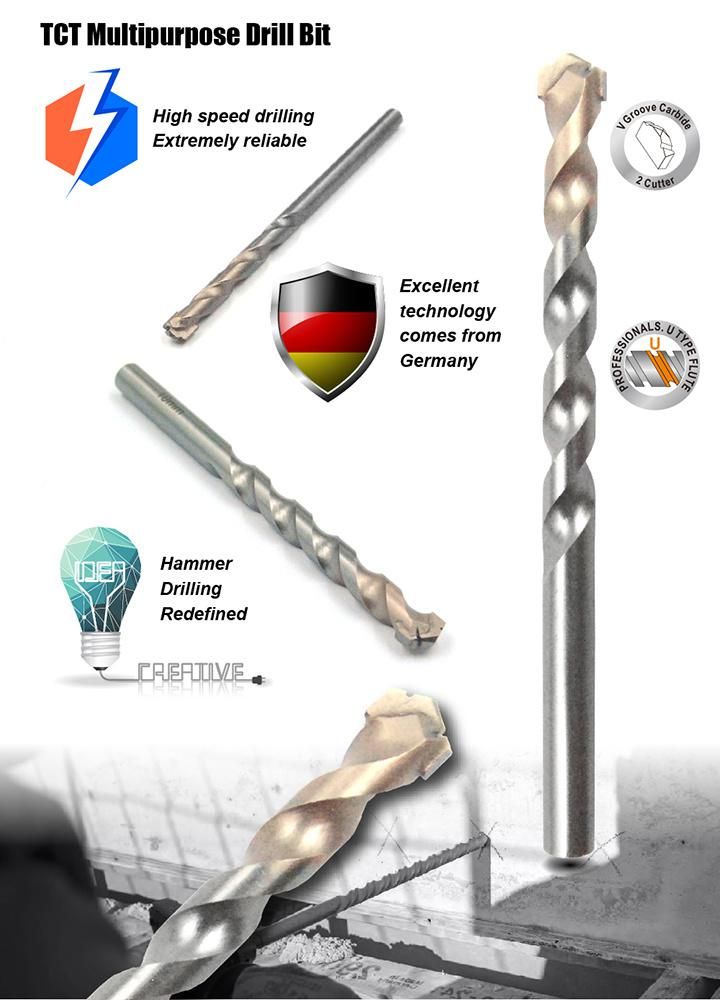

*TCT V-grooved tipped Universal Drill Bit with Cylindrical shank, shot-peened surface treatment, Virgin extra-thick YG6X carbide tipped with AVS. technology on Supreme HPP quality performance.*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.
*Special Carbide formulation is designed to guarantee higher durability and wear resistance.
*U flute design with big wide flute width maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.
Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
3773.040070 | 4 | 40 | 70 | 3.75 |
3773.040075 | 4 | 45 | 75 | 3.75 |
3773.040085 | 4 | 50 | 105 | 3.75 |
3773.040150 | 4 | 110 | 152 | 3.75 |
3773.045070 | 4.5 | 40 | 70 | 3.75 |
3773.045075 | 4.5 | 45 | 75 | 3.75 |
3773.045085 | 4.5 | 50 | 85 | 3.75 |
3773.050085 | 5 | 45 | 85 | 4.5 |
3773.050095 | 5 | 50 | 115 | 4.5 |
3773.050150 | 5 | 110 | 152 | 4.5 |
3773.055095 | 5.5 | 50 | 95 | 5.5 |
3773.055150 | 5.5 | 110 | 150 | 5.5 |
3773.060100 | 6 | 60 | 100 | 5.5 |
3773.060150 | 6 | 110 | 120 | 5.5 |
3773.065100 | 6.5 | 60 | 120 | 6 |
3773.065150 | 6.5 | 110 | 152 | 6 |
3773.070100 | 7 | 60 | 100 | 6.5 |
3773.070150 | 7 | 110 | 150 | 6.5 |
3773.080120 | 8 | 80 | 135 | 7.6 |
3773.080150 | 8 | 110 | 152 | 7.6 |
3773.090120 | 9 | 80 | 152 | 7.6 |
3773.100120 | 10 | 80 | 120 | 9 |
3773.100150 | 10 | 110 | 152 | 9 |
3773.110130 | 11 | 80 | 135 | 9.98 |
3773.110160 | 11 | 90 | 152 | 9.98 |
3773.120130 | 12 | 80 | 130 | 9.98 |
3773.120160 | 12 | 90 | 150 | 9.98 |
3773.130150 | 13 | 90 | 135 | 9.98 |
3773.140150 | 14 | 90 | 150 | 10 |
