• Model NO.：2919
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：SSD Cross Cutter
• Flute Type：4h-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 5mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 2919 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type SSD Cross Cutter Flute Type 4h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 5mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

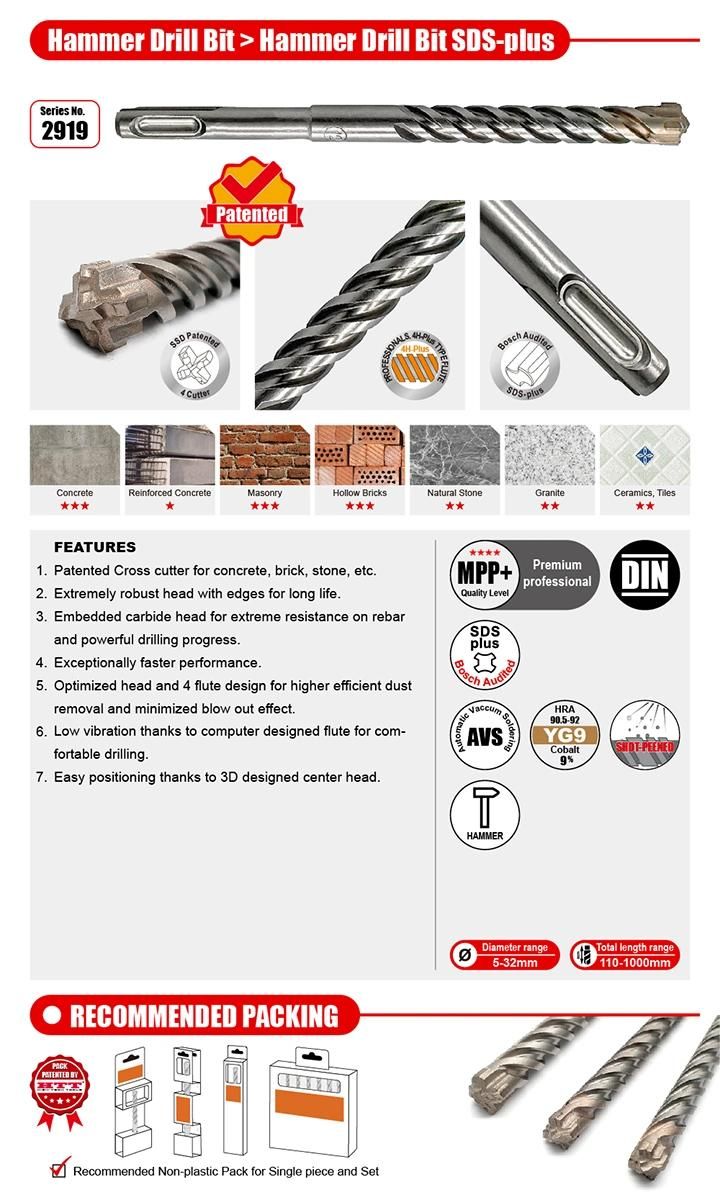

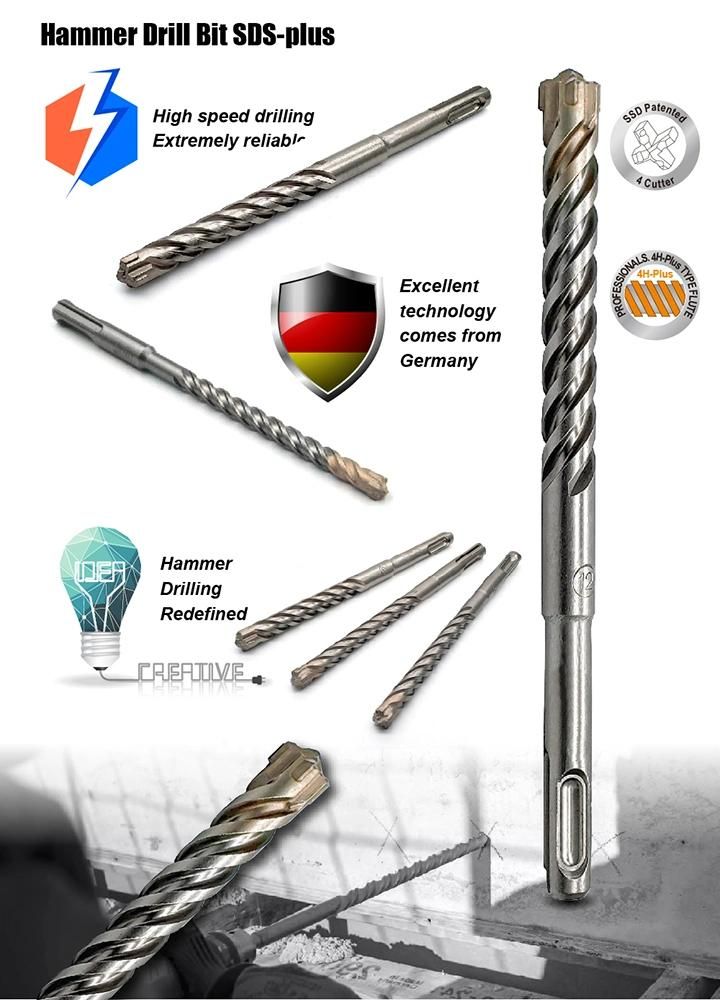

*Hammer Drill SDS plus for Concrete Stone Drilling, Manufactured by HTT,  Patented SSD cross cutter tip made of virgin YG9 formulation in the patent of HTT.

*Special design of the cross carbide tip fasts the drilling speed with multi angle Turbo wave cutting edges.

*4H-plus type of flute design maximizes x4 the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stampled logo of SDS-plus audited by Bosch.

* SGS approved anti-rusty oil treatment to protect the final users under Reach standard.



*Available sizes for Choices( The special sizes are also available on the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2919.050110	5	60	110
2919.055110	5.5	60	110
2919.060110	6	60	110
2919.065110	6.5	60	110
2919.070110	7	60	110
2919.080110	8	60	110
2919.090110	9	60	110
2919.100110	10	60	110
2919.110110	11	60	110
2919.050160	5	110	160
2919.055160	5.5	110	160
2919.060160	6	110	160
2919.065160	6.5	110	160
2919.070160	7	110	160
2919.080160	8	110	160
2919.090160	9	110	160
2919.100160	10	110	160
2919.110160	11	110	160
2919.120160	12	110	160
2919.130160	13	110	160
2919.140160	14	110	160
2919.150160	15	110	160
2919.160160	16	110	160
2919.180160	18	110	160
2919.190160	19	110	160
2919.200160	20	110	160
2919.220160	22	110	160
2919.240160	24	110	160
2919.250160	25	110	160
2919.260160	26	110	160
2919.280160	28	110	160
2919.300160	30	110	160
2919.320160	32	110	160
2919.050180	5	130	180
2919.055180	5.5	130	180
2919.060180	6	130	180
2919.065180	6.5	130	180
2919.080180	8	130	180
2919.100180	10	130	180
2919.050210	5	160	210
2919.055210	5.5	160	210
2919.060210	6	160	210
2919.065210	6.5	160	210
2919.070210	7	160	210
2919.080210	8	160	210
2919.090210	9	160	210
2919.100210	10	160	210
2919.110210	11	160	210
2919.120210	12	160	210
2919.130210	13	160	210
2919.140210	14	160	210
2919.150210	15	160	210
2919.160210	16	160	210
2919.180210	18	160	210
2919.190210	19	160	210
2919.200210	20	160	210
2919.220210	22	160	210
2919.240210	24	160	210
2919.250210	25	160	210
2919.260210	26	160	210
2919.280210	28	160	210
2919.300210	30	160	210
2919.320210	32	160	210
2919.050260	5	210	260
2919.055260	5.5	210	260
2919.060260	6	210	260
2919.065260	6.5	210	260
2919.070260	7	210	260
2919.080260	8	210	260
2919.090260	9	210	260
2919.100260	10	210	260
2919.110260	11	210	260
2919.120260	12	210	260
2919.130260	13	210	260
2919.140260	14	210	260
2919.150260	15	210	260
2919.160260	16	210	260
2919.180260	18	210	260
2919.190260	19	210	260
2919.200260	20	210	260
2919.220260	22	210	260
2919.240260	24	210	260
2919.250260	25	210	260
2919.260260	26	210	260
2919.280260	28	210	260
2919.300260	30	210	260
2919.320260	32	210	260
2919.050310	5	260	310
2919.055310	5.5	260	310
2919.060310	6	260	310
2919.065310	6.5	260	310
2919.070310	7	260	310
2919.080310	8	260	310
2919.090310	9	260	310
2919.100310	10	260	310
2919.110310	11	260	310
2919.120310	12	260	310
2919.130310	13	260	310
2919.140310	14	260	310
2919.150310	15	260	310
2919.160310	16	260	310
2919.180310	18	260	310
2919.190310	19	260	310
2919.200310	20	260	310
2919.220310	22	260	310
2919.240310	24	260	310
2919.250310	25	260	310
2919.260310	26	260	310
2919.280310	28	260	310
2919.300310	30	260	310
2919.320310	32	260	310
2919.050350	5	300	350
2919.055350	5.5	300	350
2919.060350	6	300	350
2919.065350	6.5	300	350
2919.070350	7	300	350
2919.080350	8	300	350
2919.090350	9	300	350
2919.100350	10	300	350
2919.110350	11	300	350
2919.120350	12	300	350
2919.130350	13	300	350
2919.140350	14	300	350
2919.150350	15	300	350
2919.160350	16	300	350
2919.180350	18	300	350
2919.190350	19	300	350
2919.200350	20	300	350
2919.220350	22	300	350
2919.240350	24	300	350
2919.250350	25	300	350
2919.260350	26	300	350
2919.280350	28	300	350
2919.300350	30	300	350
2919.320350	32	300	350
2919.050410	5	360	410
2919.055410	5.5	360	410
2919.060410	6	360	410
2919.065410	6.5	360	410
2919.070410	7	360	410
2919.080410	8	360	410
2919.090410	9	360	410
2919.100410	10	360	410
2919.110410	11	360	410
2919.120410	12	360	410
2919.130410	13	360	410
2919.140410	14	360	410
2919.150410	15	360	410
2919.160410	16	360	410
2919.180410	18	360	410
2919.190410	19	360	410
2919.200410	20	360	410
2919.220410	22	360	410
2919.240410	24	360	410
2919.250410	25	360	410
2919.260410	26	360	410
2919.280410	28	360	410
2919.300410	30	360	410
2919.320410	32	360	410
2919.050460	5	410	460
2919.055460	5.5	410	460
2919.060460	6	410	460
2919.065460	6.5	410	460
2919.070460	7	410	460
2919.080460	8	410	460
2919.090460	9	410	460
2919.100460	10	410	460
2919.110460	11	410	460
2919.120460	12	400	460
2919.130460	13	400	460
2919.140460	14	400	460
2919.150460	15	400	460
2919.160460	16	400	460
2919.180460	18	400	460
2919.190460	19	400	460
2919.200460	20	400	460
2919.220460	22	400	460
2919.240460	24	400	460
2919.250460	25	400	460
2919.260460	26	400	460
2919.280460	28	400	460
2919.300460	30	400	460
2919.320460	32	400	460
2919.060550	6	500	550
2919.065550	6.5	500	550
2919.070550	7	500	550
2919.080550	8	500	550
2919.090550	9	500	550
2919.100550	10	500	550
2919.110550	11	500	550
2919.120550	12	500	550
2919.130550	13	500	550
2919.140550	14	500	550
2919.150550	15	500	550
2919.160550	16	500	550
2919.180550	18	500	550
2919.190550	19	500	550
2919.200550	20	500	550
2919.220550	22	500	550
2919.240550	24	500	550
2919.250550	25	500	550
2919.260550	26	500	550
2919.280550	28	500	550
2919.300550	30	500	550
2919.320550	32	500	550
2919.060600	6	550	600
2919.065600	6.5	550	600
2919.070600	7	550	600
2919.080600	8	550	600
2919.090600	9	550	600
2919.100600	10	550	600
2919.110600	11	550	600
2919.120600	12	550	600
2919.130600	13	550	600
2919.140600	14	550	600
2919.150600	15	550	600
2919.160600	16	550	600
2919.180600	18	550	600
2919.190600	19	550	600
2919.200600	20	550	600
2919.220600	22	550	600
2919.240600	24	550	600
2919.250600	25	550	600
2919.260600	26	550	600
2919.280600	28	550	600
2919.300600	30	550	600
2919.320600	32	550	600
2919.080800	8	750	800
2919.090800	9	750	800
2919.100800	10	750	800
2919.110800	11	750	800
2919.120800	12	750	800
2919.130800	13	750	800
2919.140800	14	750	800
2919.150800	15	750	800
2919.160800	16	750	800
2919.180800	18	750	800
2919.190800	19	750	800
2919.200800	20	750	800
2919.220800	22	750	800
2919.240800	24	750	800
2919.250800	25	750	800
2919.260800	26	750	800
2919.280800	28	750	800
2919.300800	30	750	800
2919.320800	32	750	800
2919.101000	10	950	1000
2919.111000	11	950	1000
2919.121000	12	950	1000
2919.131000	13	950	1000
2919.141000	14	950	1000
2919.151000	15	950	1000
2919.161000	16	950	1000
2919.181000	18	950	1000
2919.191000	19	950	1000
2919.201000	20	950	1000
2919.221000	22	950	1000
2919.241000	24	950	1000
2919.251000	25	950	1000
2919.261000	26	950	1000
2919.281000	28	950	1000
2919.301000	30	950	1000
2919.321000	32	950	1000
