• Model NO.：3010
• Carbide Type：Virgin Yg9
• Steel Shaft Type：40cr
• Flute Type：H
• Shank Type：Cylindrical
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Surface Treatment：Shot-Peened
• Certificate：Pgm
• Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
• Specification：3mm to 25mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000

Basic Info.

Model NO. 3010 Carbide Type Virgin Yg9 Steel Shaft Type 40cr Flute Type H Shank Type Cylindrical Welding Type AVS. (Automatic Vacuum Soldering) Surface Treatment Shot-Peened Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000

Product Description

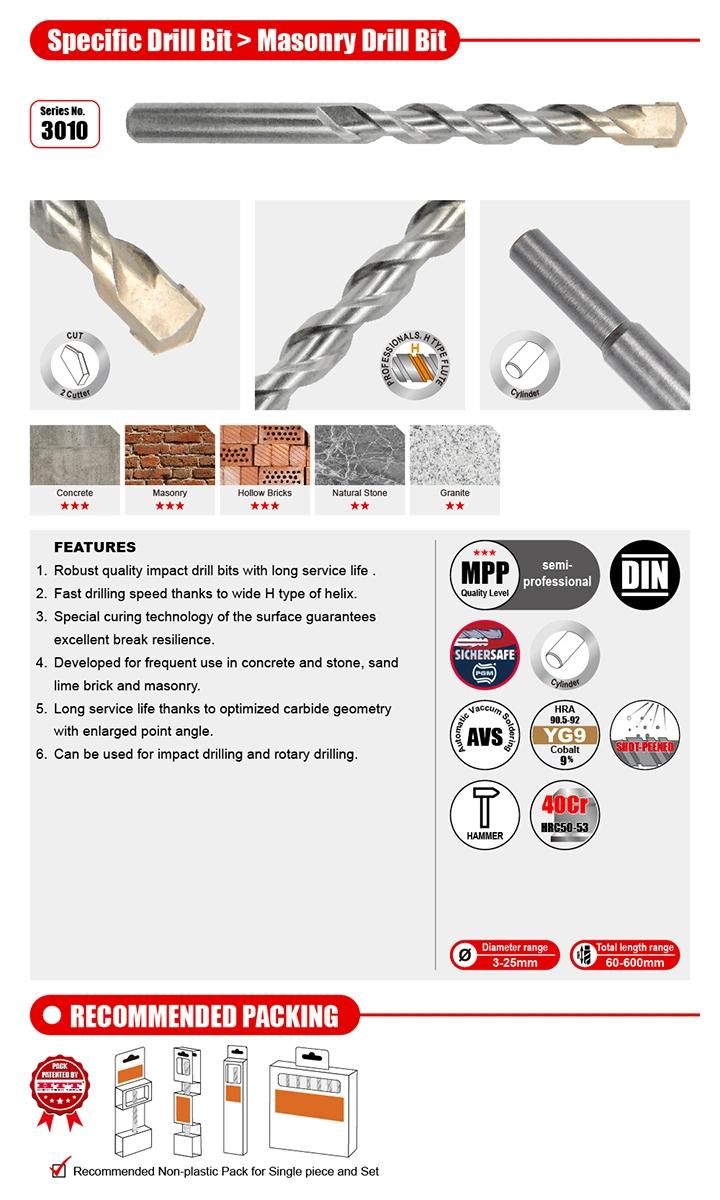

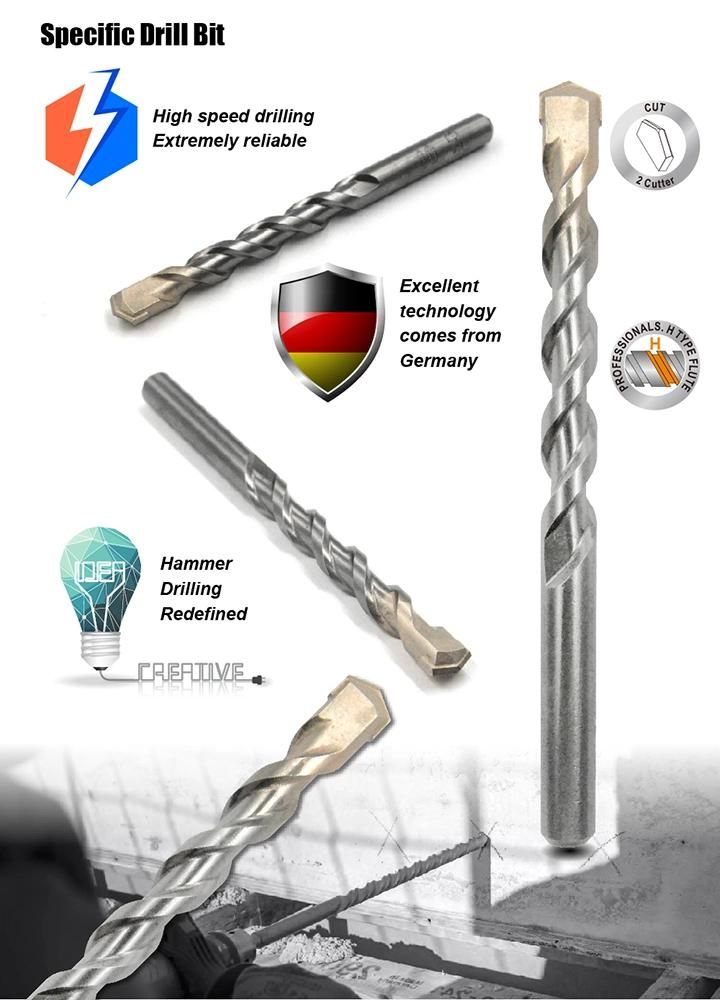

* Masonry Drill Bit Cylindrical Shank, PGM certificated, Automatic Vacuum Soldered, Shot-peened surface

* Carbide tips are done in YG9 formulation to guarantee higher durability and wear resistance.

* H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for an easy longer-time drilling job.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for industrial professional applications.



 *Available sizes for Choices(The special sizes are also available on the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
3010.030060	3	30	60
3010.030070	3	35	70
3010.030085	3	45	85
3010.040075	4	35	75
3010.040085	4	45	85
3010.040090	4	50	90
3010.040150	4	110	150
3010.050090	5	45	90
3010.050095	5	50	95
3010.050100	5	60	100
3010.050150	5	110	150
3010.050250	5	200	250
3010.050300	5	250	300
3010.050400	5	260	400
3010.050500	5	360	500
3010.055095	5.5	50	95
3010.055100	5.5	60	100
3010.055150	5.5	110	150
3010.060100	6	60	100
3010.060150	6	110	150
3010.060200	6	130	200
3010.060260	6	190	260
3010.060300	6	230	300
3010.060400	6	340	400
3010.060600	6	460	600
3010.065100	6.5	60	100
3010.065150	6.5	110	150
3010.065200	6.5	130	200
3010.065260	6.5	190	260
3010.065300	6.5	230	300
3010.065400	6.5	340	400
3010.070100	7	60	100
3010.070120	7	80	120
3010.070150	7	110	150
3010.070300	7	230	300
3010.070400	7	340	400
3010.070500	7	360	500
3010.080120	8	80	120
3010.080150	8	110	150
3010.080200	8	130	200
3010.080260	8	190	260
3010.080300	8	230	300
3010.080400	8	340	400
3010.080600	8	460	600
3010.090120	9	80	120
3010.090150	9	110	150
3010.100120	10	80	120
3010.100150	10	110	150
3010.100200	10	135	200
3010.100260	10	190	260
3010.100300	10	230	300
3010.100400	10	340	400
3010.100600	10	460	600
3010.120130	12	80	130
3010.120150	12	90	150
3010.120200	12	150	200
3010.120260	12	150	260
3010.120300	12	230	300
3010.120400	12	340	400
3010.120600	12	460	600
3010.121000	12	900	1000
3010.130150	13	90	150
3010.130200	13	150	200
3010.130300	13	230	300
3010.140150	14	90	150
3010.140200	14	135	200
3010.140260	14	200	260
3010.140300	14	230	300
3010.140400	14	340	400
3010.140600	14	460	600
3010.160150	16	90	150
3010.160200	16	135	200
3010.160250	16	200	260
3010.160300	16	230	300
3010.160400	16	340	400
3010.160600	16	460	600
3010.180160	18	100	160
3010.180200	18	135	200
3010.180300	18	230	300
3010.180400	18	340	400
3010.180600	18	460	600
3010.200160	20	100	160
3010.200200	20	135	200
3010.200260	20	200	260
3010.200300	20	230	300
3010.200400	20	340	400
3010.200600	20	460	600
3010.220160	22	100	160
3010.220200	22	135	200
3010.220300	22	230	300
3010.220400	22	340	400
3010.250160	25	100	160
3010.250200	25	135	200
3010.250300	25	230	300
3010.250400	25	340	400
