Premium Quality Y Cutter Quick-Drill Masonry Drill Cylindrical Shank for Masonry Stone Brick Stone Granite Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：90 mm to 400mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3616
- Carbide Type：Virgin Yg9
- Steel Type：40cr
- Surface Treatment：Shot-Peened
- Cutter Type：Y Cutter Carbide Tip
- Flute Type：3u
- Marking：Stamped
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Shank Type：Cylindrical
- Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
- Specification：Diameter 5mm to 25mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000,Year
Description
Basic Info.
Model NO. 3616 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Y Cutter Carbide Tip Flute Type 3u Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Shank Type Cylindrical Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification Diameter 5mm to 25mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description

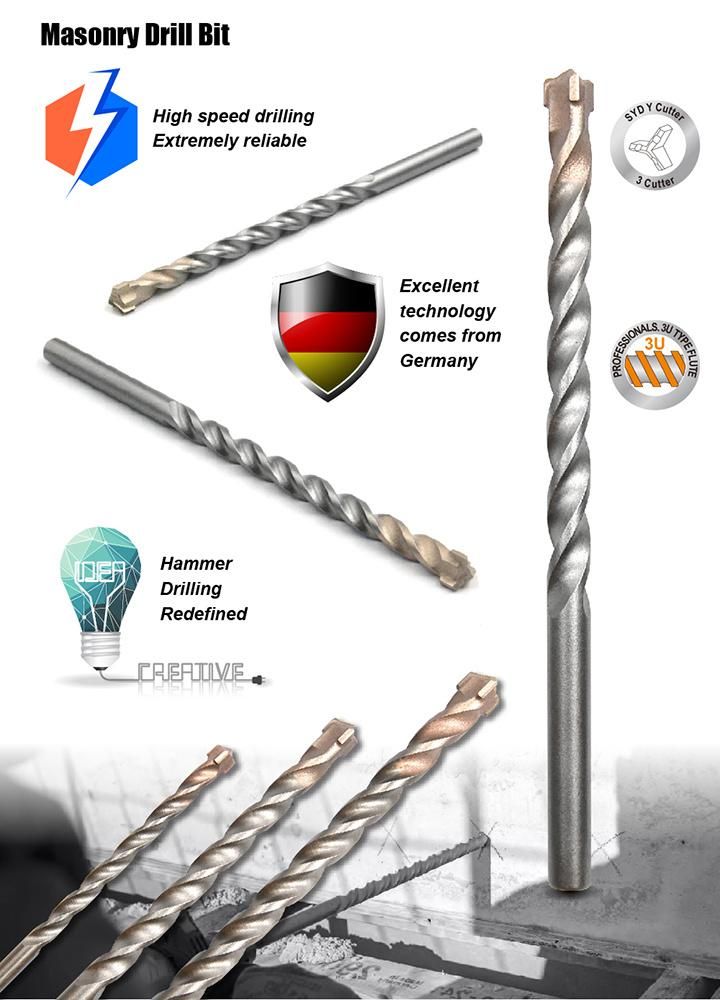

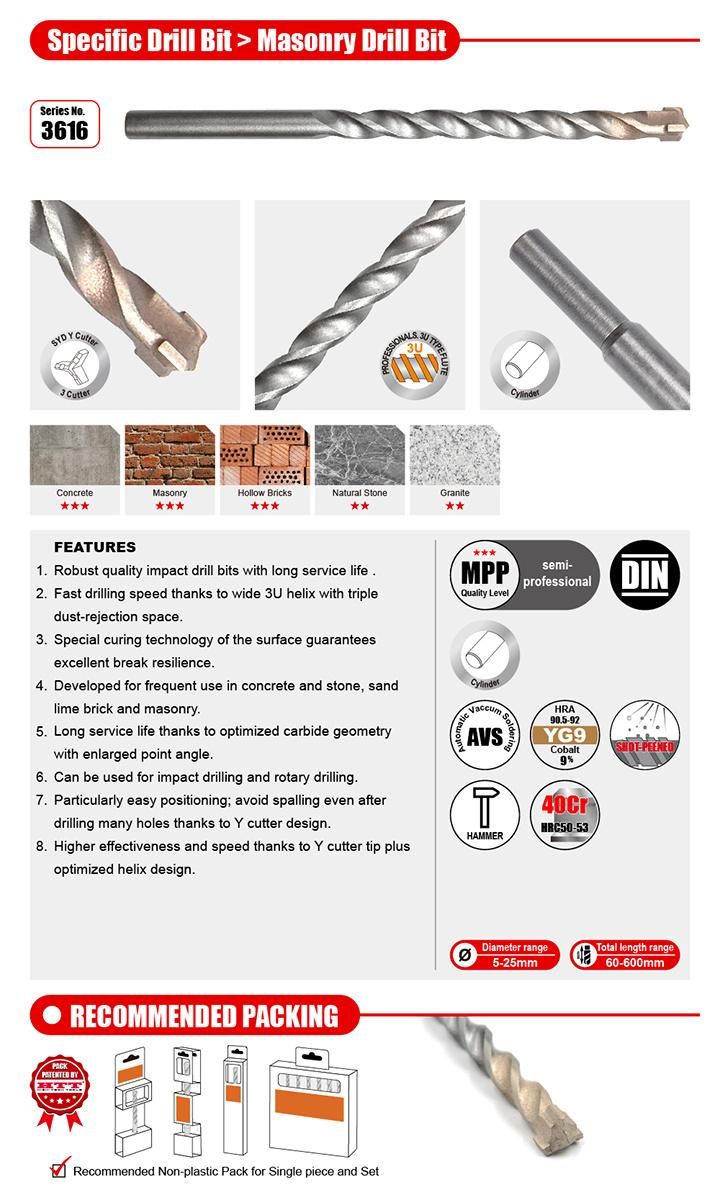

*Masonry Drill for Concrete Stone Drilling, Manufactured by HTT, Y cutter carbide tip made of virgin YG9 formulation in the patent of HTT.* Y Cutter Carbide tips are designed for higher dust drilling rejection efficiency to gain the stable fastest drilling speed.
* 3U type of flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for an easy longer-time drilling job.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
*Available sizes for Choices( The special sizes are also available upon the customers' special request)
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 3616.050090 | 5 | 50 | 90 |
| 3616.050120 | 5 | 80 | 120 |
| 3616.050150 | 5 | 100 | 150 |
| 3616.050200 | 5 | 150 | 200 |
| 3616.055090 | 5.5 | 50 | 90 |
| 3616.055120 | 5.5 | 80 | 120 |
| 3616.055150 | 5.5 | 100 | 150 |
| 3616.055200 | 5.5 | 150 | 200 |
| 3616.060100 | 6 | 60 | 100 |
| 3616.060120 | 6 | 80 | 120 |
| 3616.060150 | 6 | 100 | 150 |
| 3616.060200 | 6 | 150 | 200 |
| 3616.065100 | 6.5 | 60 | 100 |
| 3616.065120 | 6.5 | 80 | 120 |
| 3616.065150 | 6.5 | 100 | 150 |
| 3616.065200 | 6.5 | 150 | 200 |
| 3616.070100 | 7 | 60 | 100 |
| 3616.070120 | 7 | 80 | 120 |
| 3616.070150 | 7 | 100 | 150 |
| 3616.070200 | 7 | 150 | 200 |
| 3616.080120 | 8 | 80 | 120 |
| 3616.080150 | 8 | 100 | 150 |
| 3616.080200 | 8 | 150 | 200 |
| 3616.080400 | 8 | 340 | 400 |
| 3616.090120 | 9 | 80 | 120 |
| 3616.090150 | 9 | 100 | 150 |
| 3616.090200 | 9 | 150 | 200 |
| 3616.090400 | 9 | 340 | 400 |
| 3616.100120 | 10 | 80 | 120 |
| 3616.100150 | 10 | 100 | 150 |
| 3616.100200 | 10 | 150 | 200 |
| 3616.100400 | 10 | 340 | 400 |
| 3616.110120 | 11 | 80 | 120 |
| 3616.110150 | 11 | 100 | 150 |
| 3616.110200 | 11 | 150 | 200 |
| 3616.110400 | 11 | 340 | 400 |
| 3616.120130 | 12 | 90 | 130 |
| 3616.120200 | 12 | 150 | 200 |
| 3616.120400 | 12 | 340 | 400 |
| 3616.130150 | 13 | 90 | 150 |
| 3616.130200 | 13 | 140 | 200 |
| 3616.130400 | 13 | 340 | 400 |
| 3616.140150 | 14 | 90 | 150 |
| 3616.140200 | 14 | 140 | 200 |
| 3616.140400 | 14 | 340 | 400 |
| 3616.150150 | 15 | 90 | 150 |
| 3616.150200 | 15 | 140 | 200 |
| 3616.150400 | 15 | 340 | 400 |
| 3616.160150 | 16 | 90 | 150 |
| 3616.160200 | 16 | 140 | 200 |
| 3616.160400 | 16 | 340 | 400 |
| 3616.180160 | 18 | 100 | 160 |
| 3616.180200 | 18 | 140 | 200 |
| 3616.180400 | 18 | 340 | 400 |
| 3616.200160 | 20 | 100 | 160 |
| 3616.200200 | 20 | 140 | 200 |
| 3616.200400 | 20 | 340 | 400 |
| 3616.220160 | 22 | 100 | 160 |
| 3616.220200 | 22 | 140 | 200 |
| 3616.220400 | 22 | 340 | 400 |
| 3616.240160 | 24 | 100 | 160 |
| 3616.240200 | 24 | 140 | 200 |
| 3616.240400 | 24 | 340 | 400 |
| 3616.250160 | 25 | 100 | 160 |
| 3616.250200 | 25 | 140 | 200 |
| 3616.250400 | 25 | 340 | 400 |
