Tech Core Drill Bit Segment for Drilling Reinforced Concrete

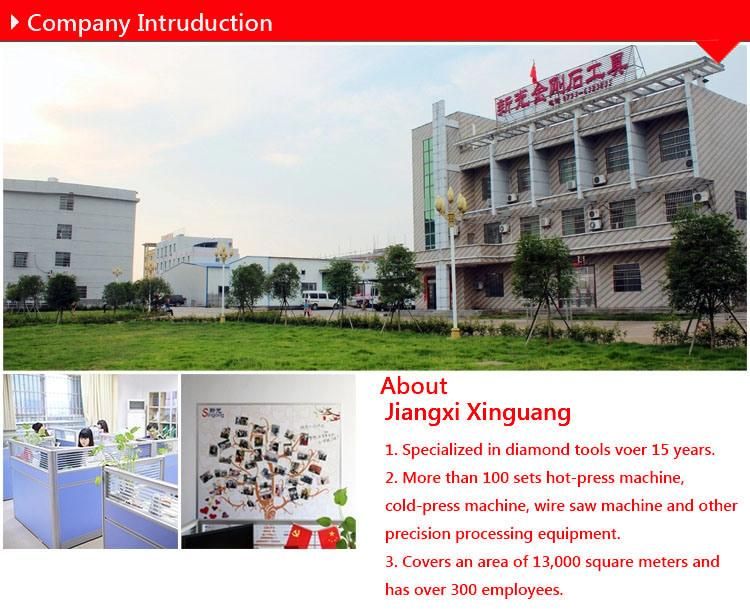

Jiangxi Xinguang Diamond Tools Co., Ltd.

Customized：Customized
Length：450mm
Type：Core Drill
Material：High Speed Steel
Classification：Hand Drill
Drill Shape：Round

Base Info

Model NO.：XG-CD23B
Applications：Building and Industrial
Impact Drill Head：Impact Drill
Impact Drill Structure：Ball-Type
Condition：New
Drill Brand：Singong

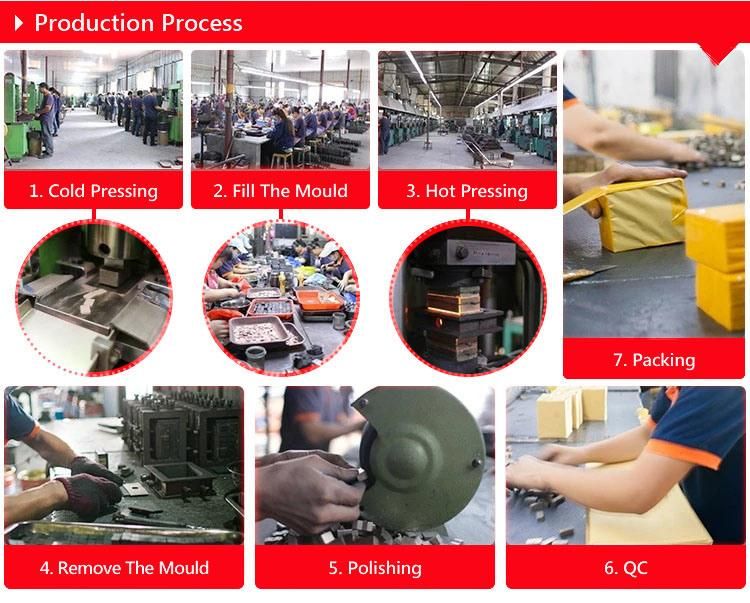

Manufacturing Arts：Welding
Transport Package：Carton Box &Wooden Cases for Waterproof
Specification：9mm-523mm, 49mm
Trademark：Singong
Origin：Jiangxi, China
HS Code：82075010
Production Capacity：60000PCS,Week

Description

Blade Size(Inch)Blade Size(mm)Segment Size(mm)Quantity(pcs/set)1435040X3.2X15/20241640040X3.6X15/20282050040X4.2X15362460040X5X15/20423280040X6X15/205840100024X5.8/6.4X15/207048120024X6.8/7.4X15/208054135024X7.6/8.0X15/208856140024X7.6/8.4X15/209664160024X8.4/9.0X15/2010872180024X9.4/10.0X15/2012080200024X10.2/10.6X15/2012888220024X10.6/11X15/20132100250024X11/11.4X15/20140120300024X12/12.4X15/20160140350024X12.6/13X15/20180

Tech Core Drill Bit Segment for Drilling Reinforced Concrete

Tech Core Drill Bit Segment for Drilling Reinforced Concrete
