127 Mm 146mm 168mm 178mm Eccentric Casing Odex System

XIAMEN PRODRILL EQUIPMENT CO., LTD.

Type：Drill Bit
Material：High Quality Carbide + High Quality Carbon Steel
Usage：Well Drilling
Brand Name：Prodrill
Model Number：Odex80~Odex280
Machine Type：Drilling Equipment

Base Info

Model NO.：ODEX 127, 146, 168, 178
Processing Type：Forging
Application：Water Wells, Geothermal Wells, Building, etc
Transport Package：Wood Package
Specification：SGS, CE, ISO
Trademark：PRODRILL
Origin：China
HS Code：82071990
Production Capacity：1000pec,Months

Description

ModelCasting TubeReamed Hole Dia(mm)Casting Shoe Inner Dia(mm)DTH Hammer Type (E)Drill Pipe(mm)Outer Dia(mm)Inner Dia(mm)ODEX8010893-9911887HD35 QL3076ODEX90114102-10812393HD35 QL3076ODEX100127115-117136105HD35 QL3076ODEX115140124-128152115HD45 QL4076ODEX120146130-134154121HD45 QL4076ODEX140168148-156185140HD55 QL5089ODEX150178158-166195150HD55 QL5089ODEX165194174-182211166HD65 QL60114ODEX190219199-207237193HD65 QL60114ODEX210245225-233260210HD85 QL80114ODEX240273253-257308241HD85 QL80114ODEX280325305-309281281SD10 NUMA100114

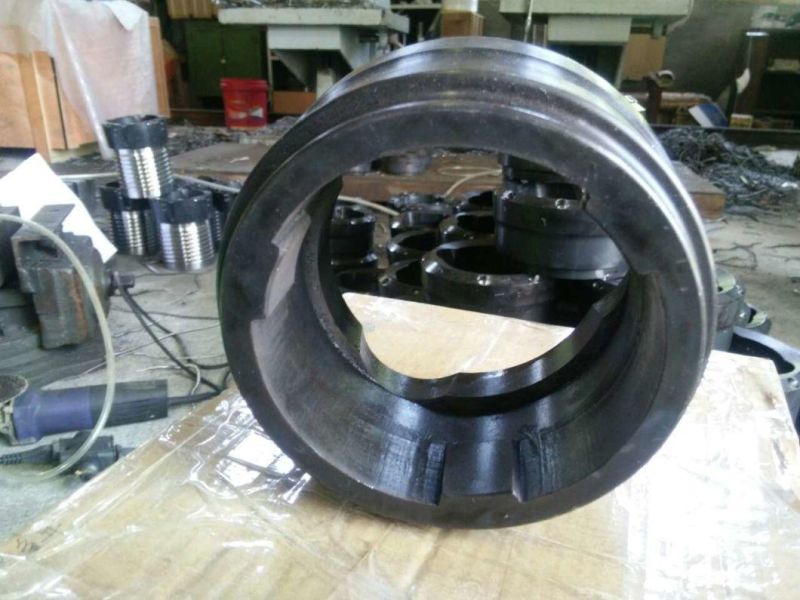

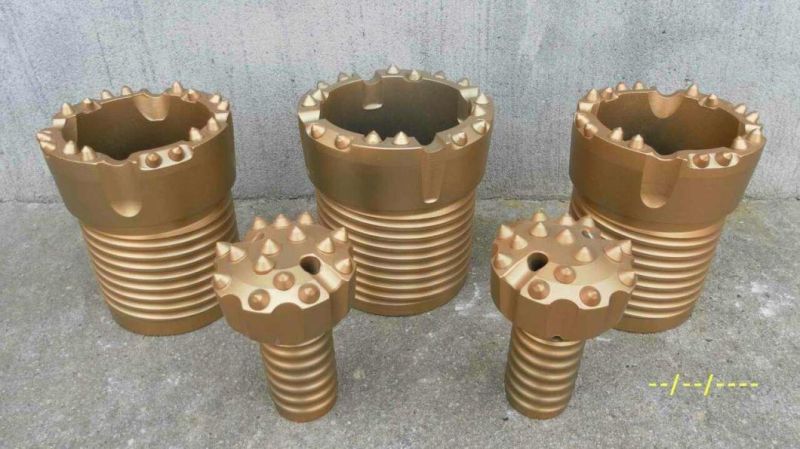

127 Mm 146mm 168mm 178mm Eccentric Casing Odex System

127 Mm 146mm 168mm 178mm Eccentric Casing Odex System

127 Mm 146mm 168mm 178mm Eccentric Casing Odex System
