• Model NO.：20017
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Triple 130degrees
• Flute Type：H
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Pgm, Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 4mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 20017 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Triple 130degrees Flute Type H Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

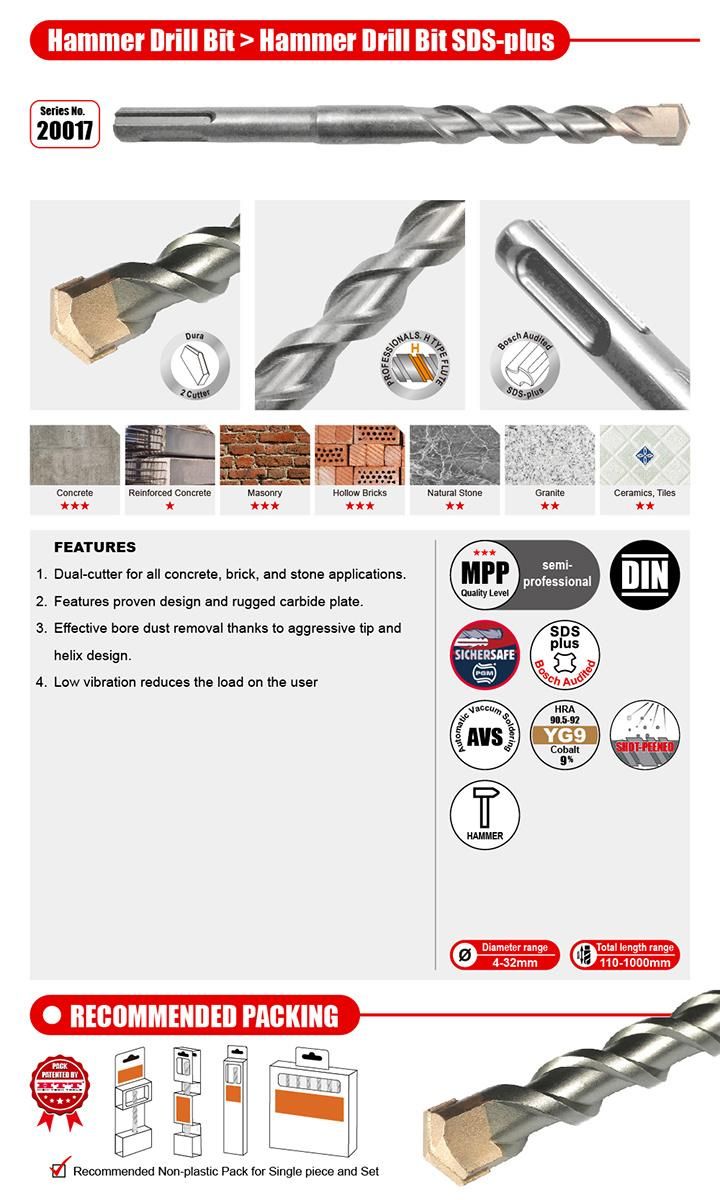

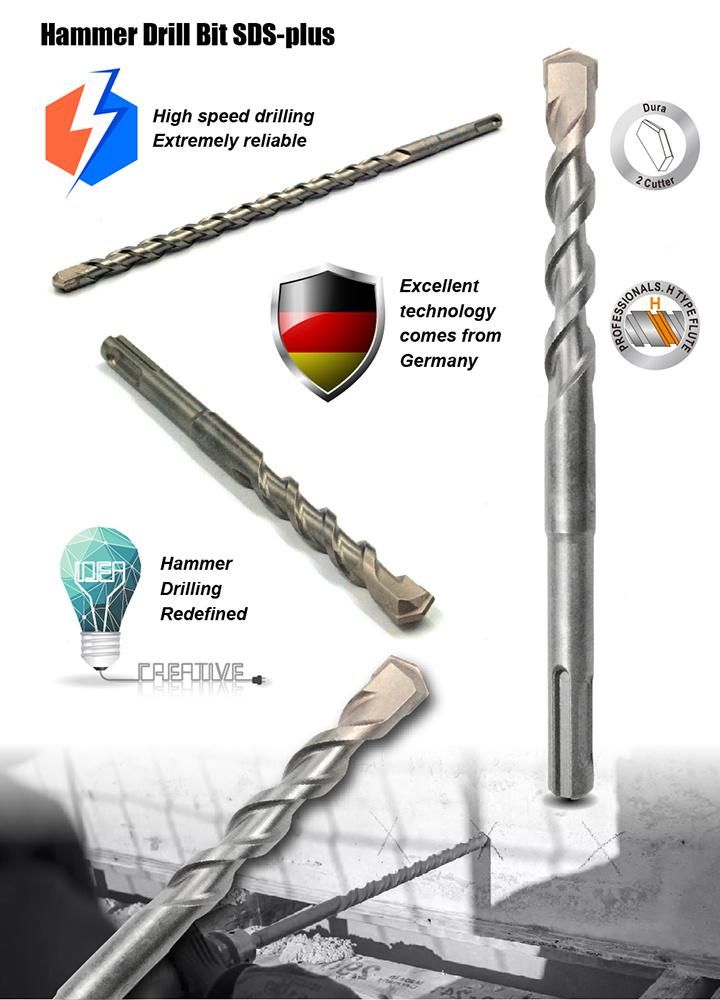

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated, Manufactured by HTT,  2 Cutter carbide tip made of YG9 formulation.

* Carbide tips are specially designed with high durability.

* H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.



*Available sizes for Choices( The special sizes are also available upon the customers' special request.)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
20017.040110	4	60	110
20017.050110	5	60	110
20017.055110	5.5	60	110
20017.060110	6	60	110
20017.065110	6.5	60	110
20017.070110	7	60	110
20017.080110	8	60	110
20017.090110	9	60	110
20017.100110	10	60	110
20017.110110	11	60	110
20017.040160	4	110	160
20017.050160	5	110	160
20017.055160	5.5	110	160
20017.060160	6	110	160
20017.065160	6.5	110	160
20017.070160	7	110	160
20017.080160	8	110	160
20017.090160	9	110	160
20017.100160	10	110	160
20017.110160	11	110	160
20017.120160	12	110	160
20017.130160	13	110	160
20017.140160	14	110	160
20017.150160	15	110	160
20017.160160	16	110	160
20017.180160	18	110	160
20017.190160	19	110	160
20017.200160	20	110	160
20017.220160	22	110	160
20017.240160	24	110	160
20017.250160	25	110	160
20017.260160	26	110	160
20017.280160	28	110	160
20017.300160	30	110	160
20017.320160	32	110	160
20017.040180	4	130	180
20017.050180	5	130	180
20017.055180	5.5	130	180
20017.060180	6	130	180
20017.065180	6.5	130	180
20017.080180	8	130	180
20017.100180	10	130	180
20017.050210	5	160	210
20017.055210	5.5	160	210
20017.060210	6	160	210
20017.065210	6.5	160	210
20017.070210	7	160	210
20017.080210	8	160	210
20017.090210	9	160	210
20017.100210	10	160	210
20017.110210	11	160	210
20017.120210	12	160	210
20017.130210	13	160	210
20017.140210	14	160	210
20017.150210	15	160	210
20017.160210	16	160	210
20017.170210	17	160	210
20017.180210	18	160	210
20017.190210	19	160	210
20017.200210	20	160	210
20017.220210	22	160	210
20017.240210	24	160	210
20017.250210	25	160	210
20017.260210	26	160	210
20017.280210	28	160	210
20017.300210	30	160	210
20017.320210	32	160	210
20017.050260	5	210	260
20017.055260	5.5	210	260
20017.060260	6	210	260
20017.065260	6.5	210	260
20017.070260	7	210	260
20017.080260	8	210	260
20017.090260	9	210	260
20017.100260	10	210	260
20017.110260	11	210	260
20017.120260	12	210	260
20017.130260	13	210	260
20017.140260	14	210	260
20017.150260	15	210	260
20017.160260	16	210	260
20017.180260	18	210	260
20017.190260	19	210	260
20017.200260	20	210	260
20017.220260	22	210	260
20017.240260	24	210	260
20017.250260	25	210	260
20017.260260	26	210	260
20017.280260	28	210	260
20017.300260	30	210	260
20017.320260	32	210	260
20017.050310	5	260	310
20017.055310	5.5	260	310
20017.060310	6	260	310
20017.065310	6.5	260	310
20017.070310	7	260	310
20017.080310	8	260	310
20017.090310	9	260	310
20017.100310	10	260	310
20017.110310	11	260	310
20017.120310	12	260	310
20017.130310	13	260	310
20017.140310	14	260	310
20017.150310	15	260	310
20017.160310	16	260	310
20017.170310	17	260	310
20017.180310	18	260	310
20017.190310	19	260	310
20017.200310	20	260	310
20017.220310	22	260	310
20017.240310	24	260	310
20017.250310	25	260	310
20017.260310	26	260	310
20017.280310	28	260	310
20017.300310	30	260	310
20017.320310	32	260	310
20017.050350	5	300	350
20017.055350	5.5	300	350
20017.060350	6	300	350
20017.065350	6.5	300	350
20017.070350	7	300	350
20017.080350	8	300	350
20017.090350	9	300	350
20017.100350	10	300	350
20017.110350	11	300	350
20017.120350	12	300	350
20017.130350	13	300	350
20017.140350	14	300	350
20017.150350	15	300	350
20017.160350	16	300	350
20017.180350	18	300	350
20017.190350	19	300	350
20017.200350	20	300	350
20017.220350	22	300	350
20017.240350	24	300	350
20017.250350	25	300	350
20017.260350	26	300	350
20017.280350	28	300	350
20017.300350	30	300	350
20017.320350	32	300	350
20017.050410	5	360	410
20017.055410	5.5	360	410
20017.060410	6	360	410
20017.065410	6.5	360	410
20017.070410	7	360	410
20017.080410	8	360	410
20017.090410	9	360	410
20017.100410	10	360	410
20017.110410	11	360	410
20017.120410	12	360	410
20017.130410	13	360	410
20017.140410	14	360	410
20017.150410	15	360	410
20017.160410	16	360	410
20017.180410	18	360	410
20017.190410	19	360	410
20017.200410	20	360	410
20017.220410	22	360	410
20017.240410	24	360	410
20017.250410	25	360	410
20017.260410	26	360	410
20017.280410	28	360	410
20017.300410	30	360	410
20017.320410	32	360	410
20017.050460	5	410	460
20017.055460	5.5	410	460
20017.060460	6	410	460
20017.065460	6.5	410	460
20017.070460	7	410	460
20017.080460	8	410	460
20017.090460	9	410	460
20017.100460	10	410	460
20017.110460	11	410	460
20017.120450	12	400	450
20017.130450	13	400	450
20017.140450	14	400	450
20017.150450	15	400	450
20017.160450	16	400	450
20017.180450	18	400	450
20017.190450	19	400	450
20017.200450	20	400	450
20017.220450	22	400	450
20017.240450	24	400	450
20017.250450	25	400	450
20017.260450	26	400	450
20017.280450	28	400	450
20017.300450	30	400	450
20017.320450	32	400	450
20017.060550	6	500	550
20017.065550	6.5	500	550
20017.070550	7	500	550
20017.080550	8	500	550
20017.090550	9	500	550
20017.100550	10	500	550
20017.110550	11	500	550
20017.120550	12	500	550
20017.130550	13	500	550
20017.140550	14	500	550
20017.150550	15	500	550
20017.160550	16	500	550
20017.180550	18	500	550
20017.190550	19	500	550
20017.200550	20	500	550
20017.220550	22	500	550
20017.240550	24	500	550
20017.250550	25	500	550
20017.260550	26	500	550
20017.280550	28	500	550
20017.300550	30	500	550
20017.320550	32	500	550
20017.060600	6	550	600
20017.065600	6.5	550	600
20017.070600	7	550	600
20017.080600	8	550	600
20017.090600	9	550	600
20017.100600	10	550	600
20017.110600	11	550	600
20017.120600	12	550	600
20017.130600	13	550	600
20017.140600	14	550	600
20017.150600	15	550	600
20017.160600	16	550	600
20017.170600	17	550	600
20017.180600	18	550	600
20017.190600	19	550	600
20017.200600	20	550	600
20017.220600	22	550	600
20017.240600	24	550	600
20017.250600	25	550	600
20017.260600	26	550	600
20017.280600	28	550	600
20017.300600	30	550	600
20017.320600		550	600
20017.080800	8	750	800
20017.090800	9	750	800
20017.100800	10	750	800
20017.110800	11	750	800
20017.120800	12	750	800
20017.130800	13	750	800
20017.140800	14	750	800
20017.150800	15	750	800
20017.160800	16	750	800
20017.180800	18	750	800
20017.190800	19	750	800
20017.200800	20	750	800
20017.220800	22	750	800
20017.240800	24	750	800
20017.250800	25	750	800
20017.260800	26	750	800
20017.280800	28	750	800
20017.300800	30	750	800
20017.320800	32	750	800
20017.101000	10	950	1000
20017.111000	11	950	1000
20017.121000	12	950	1000
20017.131000	13	950	1000
20017.141000	14	950	1000
20017.151000	15	950	1000
20017.161000	16	950	1000
20017.181000	18	950	1000
20017.191000	19	950	1000
20017.201000	20	950	1000
20017.221000	22	950	1000
20017.241000	24	950	1000
20017.251000	25	950	1000
20017.261000	26	950	1000
20017.281000	28	950	1000
20017.301000	30	950	1000
20017.321000	32	950	1000
