Pgm Quality Turbo 2cutter Hammer Drill SDS Plus for Reinforcement Concrete Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：110mm to 1000mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：WJ999
- Carbide Type：Virgin Yg9
- Steel Type：40cr
- Surface Treatment：Shot-Peened
- Cutter Type：Patented Turbo Wave Carbide Tip
- Flute Type：W
- Marking：Stamped
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Certificated：Pgm, Bosch Audited SDS-Plus Logo
- Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
- Specification：Diameter 4mm to 32mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：3600000,Year
Description
Basic Info.
Model NO. WJ999 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Patented Turbo Wave Carbide Tip Flute Type W Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/YearProduct Description

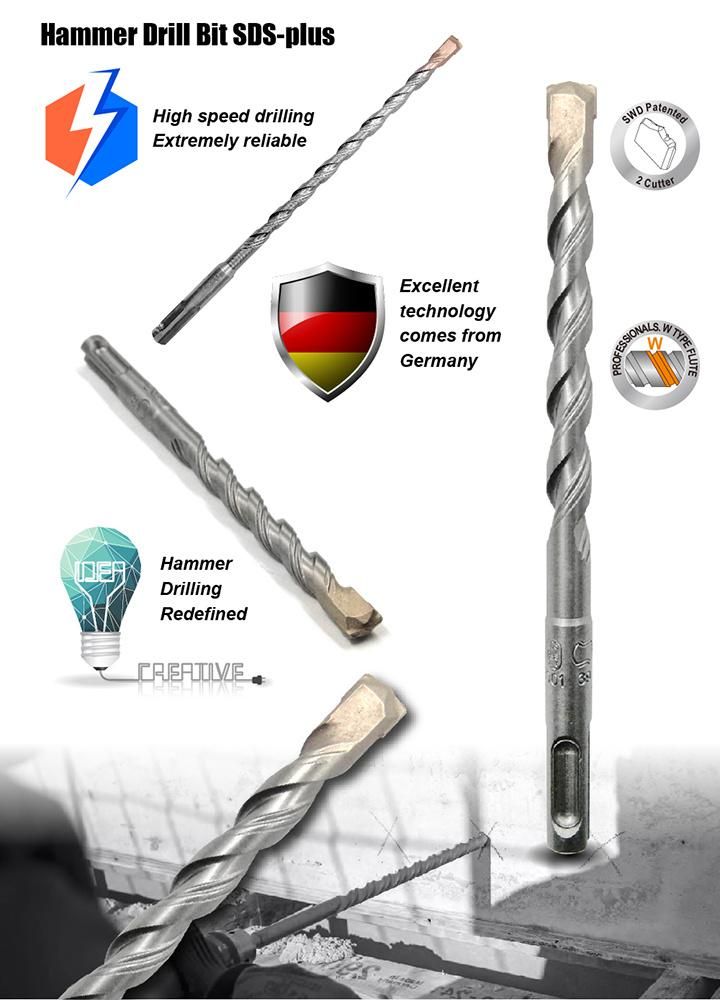

*Hammer Drill SDS plus for Reinforcement Concrete Stone Drilling, PGM certificated, Manufactured by HTT, 2 Cutter Turbo Wave carbide tip made of Virgin YG9 formulation. This carbide tip design is patented.* Carbide tips are specially designed for light-bar reinforcement drilling. The other types of concrete, brick, and stone are also available to drill.
* W flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for easy longer time drilling job.
* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.
* SGS approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.
*Available sizes for Choices( The special sizes are also available upon the customers' special request)
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| WJ999.040110 | 4 | 60 | 110 |
| WJ999.050110 | 5 | 60 | 110 |
| WJ999.055110 | 5.5 | 60 | 110 |
| WJ999.060110 | 6 | 60 | 110 |
| WJ999.065110 | 6.5 | 60 | 110 |
| WJ999.070110 | 7 | 60 | 110 |
| WJ999.080110 | 8 | 60 | 110 |
| WJ999.090110 | 9 | 60 | 110 |
| WJ999.100110 | 10 | 60 | 110 |
| WJ999.110110 | 11 | 60 | 110 |
| WJ999.040160 | 4 | 110 | 160 |
| WJ999.050160 | 5 | 110 | 160 |
| WJ999.055160 | 5.5 | 110 | 160 |
| WJ999.060160 | 6 | 110 | 160 |
| WJ999.065160 | 6.5 | 110 | 160 |
| WJ999.070160 | 7 | 110 | 160 |
| WJ999.080160 | 8 | 110 | 160 |
| WJ999.090160 | 9 | 110 | 160 |
| WJ999.100160 | 10 | 110 | 160 |
| WJ999.110160 | 11 | 110 | 160 |
| WJ999.120160 | 12 | 110 | 160 |
| WJ999.130160 | 13 | 110 | 160 |
| WJ999.140160 | 14 | 110 | 160 |
| WJ999.150160 | 15 | 110 | 160 |
| WJ999.160160 | 16 | 110 | 160 |
| WJ999.180160 | 18 | 110 | 160 |
| WJ999.190160 | 19 | 110 | 160 |
| WJ999.200160 | 20 | 110 | 160 |
| WJ999.220160 | 22 | 110 | 160 |
| WJ999.240160 | 24 | 110 | 160 |
| WJ999.250160 | 25 | 110 | 160 |
| WJ999.260160 | 26 | 110 | 160 |
| WJ999.280160 | 28 | 110 | 160 |
| WJ999.300160 | 30 | 110 | 160 |
| WJ999.320160 | 32 | 110 | 160 |
| WJ999.040180 | 4 | 130 | 180 |
| WJ999.050180 | 5 | 130 | 180 |
| WJ999.055180 | 5.5 | 130 | 180 |
| WJ999.060180 | 6 | 130 | 180 |
| WJ999.065180 | 6.5 | 130 | 180 |
| WJ999.080180 | 8 | 130 | 180 |
| WJ999.100180 | 10 | 130 | 180 |
| WJ999.050210 | 5 | 160 | 210 |
| WJ999.055210 | 5.5 | 160 | 210 |
| WJ999.060210 | 6 | 160 | 210 |
| WJ999.065210 | 6.5 | 160 | 210 |
| WJ999.070210 | 7 | 160 | 210 |
| WJ999.080210 | 8 | 160 | 210 |
| WJ999.090210 | 9 | 160 | 210 |
| WJ999.100210 | 10 | 160 | 210 |
| WJ999.110210 | 11 | 160 | 210 |
| WJ999.120210 | 12 | 160 | 210 |
| WJ999.130210 | 13 | 160 | 210 |
| WJ999.140210 | 14 | 160 | 210 |
| WJ999.150210 | 15 | 160 | 210 |
| WJ999.160210 | 16 | 160 | 210 |
| WJ999.180210 | 18 | 160 | 210 |
| WJ999.190210 | 19 | 160 | 210 |
| WJ999.200210 | 20 | 160 | 210 |
| WJ999.220210 | 22 | 160 | 210 |
| WJ999.240210 | 24 | 160 | 210 |
| WJ999.250210 | 25 | 160 | 210 |
| WJ999.260210 | 26 | 160 | 210 |
| WJ999.280210 | 28 | 160 | 210 |
| WJ999.300210 | 30 | 160 | 210 |
| WJ999.320210 | 32 | 160 | 210 |
| WJ999.050260 | 5 | 210 | 260 |
| WJ999.055260 | 5.5 | 210 | 260 |
| WJ999.060260 | 6 | 210 | 260 |
| WJ999.065260 | 6.5 | 210 | 260 |
| WJ999.070260 | 7 | 210 | 260 |
| WJ999.080260 | 8 | 210 | 260 |
| WJ999.090260 | 9 | 210 | 260 |
| WJ999.100260 | 10 | 210 | 260 |
| WJ999.110260 | 11 | 210 | 260 |
| WJ999.120260 | 12 | 210 | 260 |
| WJ999.130260 | 13 | 210 | 260 |
| WJ999.140260 | 14 | 210 | 260 |
| WJ999.150260 | 15 | 210 | 260 |
| WJ999.160260 | 16 | 210 | 260 |
| WJ999.180260 | 18 | 210 | 260 |
| WJ999.190260 | 19 | 210 | 260 |
| WJ999.200260 | 20 | 210 | 260 |
| WJ999.220260 | 22 | 210 | 260 |
| WJ999.240260 | 24 | 210 | 260 |
| WJ999.250260 | 25 | 210 | 260 |
| WJ999.260260 | 26 | 210 | 260 |
| WJ999.280260 | 28 | 210 | 260 |
| WJ999.300260 | 30 | 210 | 260 |
| WJ999.320260 | 32 | 210 | 260 |
| WJ999.050310 | 5 | 260 | 310 |
| WJ999.055310 | 5.5 | 260 | 310 |
| WJ999.060310 | 6 | 260 | 310 |
| WJ999.065310 | 6.5 | 260 | 310 |
| WJ999.070310 | 7 | 260 | 310 |
| WJ999.080310 | 8 | 260 | 310 |
| WJ999.090310 | 9 | 260 | 310 |
| WJ999.100310 | 10 | 260 | 310 |
| WJ999.110310 | 11 | 260 | 310 |
| WJ999.120310 | 12 | 260 | 310 |
| WJ999.130310 | 13 | 260 | 310 |
| WJ999.140310 | 14 | 260 | 310 |
| WJ999.150310 | 15 | 260 | 310 |
| WJ999.160310 | 16 | 260 | 310 |
| WJ999.180310 | 18 | 260 | 310 |
| WJ999.190310 | 19 | 260 | 310 |
| WJ999.200310 | 20 | 260 | 310 |
| WJ999.220310 | 22 | 260 | 310 |
| WJ999.240310 | 24 | 260 | 310 |
| WJ999.250310 | 25 | 260 | 310 |
| WJ999.260310 | 26 | 260 | 310 |
| WJ999.280310 | 28 | 260 | 310 |
| WJ999.300310 | 30 | 260 | 310 |
| WJ999.320310 | 32 | 260 | 310 |
| WJ999.050350 | 5 | 300 | 350 |
| WJ999.055350 | 5.5 | 300 | 350 |
| WJ999.060350 | 6 | 300 | 350 |
| WJ999.065350 | 6.5 | 300 | 350 |
| WJ999.070350 | 7 | 300 | 350 |
| WJ999.080350 | 8 | 300 | 350 |
| WJ999.090350 | 9 | 300 | 350 |
| WJ999.100350 | 10 | 300 | 350 |
| WJ999.110350 | 11 | 300 | 350 |
| WJ999.120350 | 12 | 300 | 350 |
| WJ999.130350 | 13 | 300 | 350 |
| WJ999.140350 | 14 | 300 | 350 |
| WJ999.150350 | 15 | 300 | 350 |
| WJ999.160350 | 16 | 300 | 350 |
| WJ999.180350 | 18 | 300 | 350 |
| WJ999.190350 | 19 | 300 | 350 |
| WJ999.200350 | 20 | 300 | 350 |
| WJ999.220350 | 22 | 300 | 350 |
| WJ999.240350 | 24 | 300 | 350 |
| WJ999.250350 | 25 | 300 | 350 |
| WJ999.260350 | 26 | 300 | 350 |
| WJ999.280350 | 28 | 300 | 350 |
| WJ999.300350 | 30 | 300 | 350 |
| WJ999.320350 | 32 | 300 | 350 |
| WJ999.050410 | 5 | 360 | 410 |
| WJ999.055410 | 5.5 | 360 | 410 |
| WJ999.060410 | 6 | 360 | 410 |
| WJ999.065410 | 6.5 | 360 | 410 |
| WJ999.070410 | 7 | 360 | 410 |
| WJ999.080410 | 8 | 360 | 410 |
| WJ999.090410 | 9 | 360 | 410 |
| WJ999.100410 | 10 | 360 | 410 |
| WJ999.110410 | 11 | 360 | 410 |
| WJ999.120410 | 12 | 360 | 410 |
| WJ999.130410 | 13 | 360 | 410 |
| WJ999.140410 | 14 | 360 | 410 |
| WJ999.150410 | 15 | 360 | 410 |
| WJ999.160410 | 16 | 360 | 410 |
| WJ999.180410 | 18 | 360 | 410 |
| WJ999.190410 | 19 | 360 | 410 |
| WJ999.200410 | 20 | 360 | 410 |
| WJ999.220410 | 22 | 360 | 410 |
| WJ999.240410 | 24 | 360 | 410 |
| WJ999.250410 | 25 | 360 | 410 |
| WJ999.260410 | 26 | 360 | 410 |
| WJ999.280410 | 28 | 360 | 410 |
| WJ999.300410 | 30 | 360 | 410 |
| WJ999.320410 | 32 | 360 | 410 |
| WJ999.050460 | 5 | 410 | 460 |
| WJ999.055460 | 5.5 | 410 | 460 |
| WJ999.060460 | 6 | 410 | 460 |
| WJ999.065460 | 6.5 | 410 | 460 |
| WJ999.070460 | 7 | 410 | 460 |
| WJ999.080460 | 8 | 410 | 460 |
| WJ999.090460 | 9 | 410 | 460 |
| WJ999.100460 | 10 | 410 | 460 |
| WJ999.110460 | 11 | 410 | 460 |
| WJ999.120460 | 12 | 400 | 460 |
| WJ999.130460 | 13 | 400 | 460 |
| WJ999.140460 | 14 | 400 | 460 |
| WJ999.150460 | 15 | 400 | 460 |
| WJ999.160460 | 16 | 400 | 460 |
| WJ999.180460 | 18 | 400 | 460 |
| WJ999.190460 | 19 | 400 | 460 |
| WJ999.200460 | 20 | 400 | 460 |
| WJ999.220460 | 22 | 400 | 460 |
| WJ999.240460 | 24 | 400 | 460 |
| WJ999.250460 | 25 | 400 | 460 |
| WJ999.260460 | 26 | 400 | 460 |
| WJ999.280460 | 28 | 400 | 460 |
| WJ999.300460 | 30 | 400 | 460 |
| WJ999.320460 | 32 | 400 | 460 |
| WJ999.060550 | 6 | 500 | 550 |
| WJ999.065550 | 6.5 | 500 | 550 |
| WJ999.070550 | 7 | 500 | 550 |
| WJ999.080550 | 8 | 500 | 550 |
| WJ999.090550 | 9 | 500 | 550 |
| WJ999.100550 | 10 | 500 | 550 |
| WJ999.110550 | 11 | 500 | 550 |
| WJ999.120550 | 12 | 500 | 550 |
| WJ999.130550 | 13 | 500 | 550 |
| WJ999.140550 | 14 | 500 | 550 |
| WJ999.150550 | 15 | 500 | 550 |
| WJ999.160550 | 16 | 500 | 550 |
| WJ999.180550 | 18 | 500 | 550 |
| WJ999.190550 | 19 | 500 | 550 |
| WJ999.200550 | 20 | 500 | 550 |
| WJ999.220550 | 22 | 500 | 550 |
| WJ999.240550 | 24 | 500 | 550 |
| WJ999.250550 | 25 | 500 | 550 |
| WJ999.260550 | 26 | 500 | 550 |
| WJ999.280550 | 28 | 500 | 550 |
| WJ999.300550 | 30 | 500 | 550 |
| WJ999.320550 | 32 | 500 | 550 |
| WJ999.060600 | 6 | 550 | 600 |
| WJ999.065600 | 6.5 | 550 | 600 |
| WJ999.070600 | 7 | 550 | 600 |
| WJ999.080600 | 8 | 550 | 600 |
| WJ999.090600 | 9 | 550 | 600 |
| WJ999.100600 | 10 | 550 | 600 |
| WJ999.110600 | 11 | 550 | 600 |
| WJ999.120600 | 12 | 550 | 600 |
| WJ999.130600 | 13 | 550 | 600 |
| WJ999.140600 | 14 | 550 | 600 |
| WJ999.150600 | 15 | 550 | 600 |
| WJ999.160600 | 16 | 550 | 600 |
| WJ999.180600 | 18 | 550 | 600 |
| WJ999.190600 | 19 | 550 | 600 |
| WJ999.200600 | 20 | 550 | 600 |
| WJ999.220600 | 22 | 550 | 600 |
| WJ999.240600 | 24 | 550 | 600 |
| WJ999.250600 | 25 | 550 | 600 |
| WJ999.260600 | 26 | 550 | 600 |
| WJ999.280600 | 28 | 550 | 600 |
| WJ999.300600 | 30 | 550 | 600 |
| WJ999.320600 | 550 | 600 | |
| WJ999.080800 | 8 | 750 | 800 |
| WJ999.090800 | 9 | 750 | 800 |
| WJ999.100800 | 10 | 750 | 800 |
| WJ999.110800 | 11 | 750 | 800 |
| WJ999.120800 | 12 | 750 | 800 |
| WJ999.130800 | 13 | 750 | 800 |
| WJ999.140800 | 14 | 750 | 800 |
| WJ999.150800 | 15 | 750 | 800 |
| WJ999.160800 | 16 | 750 | 800 |
| WJ999.180800 | 18 | 750 | 800 |
| WJ999.190800 | 19 | 750 | 800 |
| WJ999.200800 | 20 | 750 | 800 |
| WJ999.220800 | 22 | 750 | 800 |
| WJ999.240800 | 24 | 750 | 800 |
| WJ999.250800 | 25 | 750 | 800 |
| WJ999.260800 | 26 | 750 | 800 |
| WJ999.280800 | 28 | 750 | 800 |
| WJ999.300800 | 30 | 750 | 800 |
| WJ999.320800 | 32 | 750 | 800 |
| WJ999.101000 | 10 | 950 | 1000 |
| WJ999.111000 | 11 | 950 | 1000 |
| WJ999.121000 | 12 | 950 | 1000 |
| WJ999.131000 | 13 | 950 | 1000 |
| WJ999.141000 | 14 | 950 | 1000 |
| WJ999.151000 | 15 | 950 | 1000 |
| WJ999.161000 | 16 | 950 | 1000 |
| WJ999.181000 | 18 | 950 | 1000 |
| WJ999.191000 | 19 | 950 | 1000 |
| WJ999.201000 | 20 | 950 | 1000 |
| WJ999.221000 | 22 | 950 | 1000 |
| WJ999.241000 | 24 | 950 | 1000 |
| WJ999.251000 | 25 | 950 | 1000 |
| WJ999.261000 | 26 | 950 | 1000 |
| WJ999.281000 | 28 | 950 | 1000 |
| WJ999.301000 | 30 | 950 | 1000 |
| WJ999.321000 | 32 | 950 | 1000 |
