• Model NO.：Hex22, length 2400mm, diameter 32mm
• Machine Type：Drilling Tool
• Processing Type：Forging
• Use：Ore Mining, for Small Hole Drilling Tools
• Body Length：400mm-8000mm
• Shank：22*108mm, 19*108mm, 25*159mm
• Transport Package：Wood Package
• Specification：CE, SGS
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：1000pec,Months

Shank StyleLengthHead Diameter Mmfoot/inchMmInchHex19 × 108mmWe can produce as your request of carbide size, different length of drill rods.

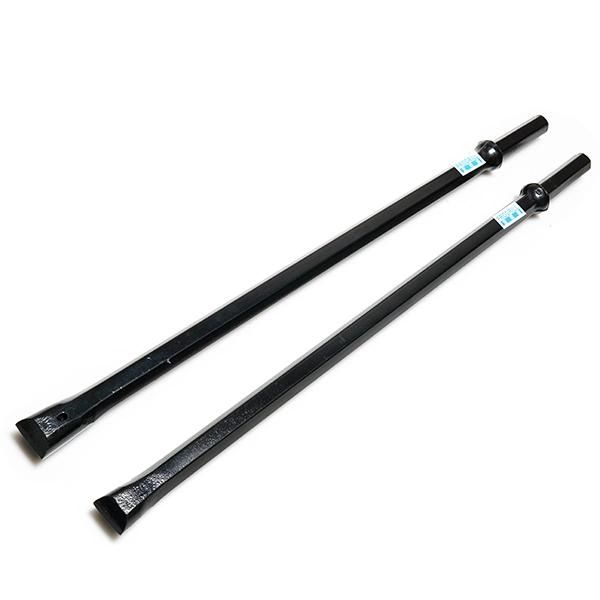

 400 ~ 4,0001' 4" ~ 13' 1"23 ~ 3527/32 ~ 1 3/8Hex22 × 108mm400 ~ 9,6001' 4" ~ 31' 6"26 ~ 411 1/32 ~ 1 39/64Hex25 × 108mm600 ~ 6,4001' 11 5/8" ~ 21'33 ~ 451 19/64 ~ 1 25/32Hex25 ×159mm800 ~ 6,4002' 7" ~ 21'35 ~ 421 3/8 ~ 1 21/32Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.Tapered steel lengths-available from 0.6 m to 3.6 m in length-are measured from the collar to the bit end.
Shank Hexagon: 19 x108 mm, 22x 108mm, 25 x108 mm,  25 mmX159 mm  6, 7, 11, 12 degree taper in most lengths, taper degree of drill steel is mostly imports for excellent drilling productivity.
For drilling medium-hard to hard and abrasive rock formations,Taper angles of 11 and 12-degrees are normally used on modern drill rigs, like our model no. PD-Y58 crawler hydraulic rock drill. Also for Y6, Y10, Y24, YT24, Mobile rock drill pneumatic and hydraulic. Types of drill rods     SpecificationsLength            (mm)ShankTapered drill rodsTaper Angle: 4, 6, 7, 11, 12 degree400mm to 8000mmHex22mm*108mm Hex25mm*159mm Hex19mm*108mmIntegral drill steelBit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm400mm to 4800mmPlug hole rodsChisel bit diameter: 17mm, 20mm, 22mm150mm to 710mmMain Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters

Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
