• Model NO.：40mm 8 tooth
• Tooth No.：8 Buttons
• Head Dia.：40mm
• Degree：7, 11, 12 Degree Could Be Customized
• Colour：Golden, Red, Black Could Be Customzide
• Package：50PCS in a Wooden Box
• Weight：16-22kg,Box
• Tooth Size：08mm*6PCS + 07mm*2PCS
• Carbon steel：ZK05 hard alloy
• Transport Package：Plywood Case
• Specification：40mm, 8 tooth
• Trademark：NONE
• Origin：China
• HS Code：8207199000
• Production Capacity：5000PCS,Month

Rock GradeHardness LevelTypical RockF gradeApplicable                    button bitIThe hardestthe hardest and compact quartz, basalt and other special hard rocksf=20The best qualityIIstrong hardvery hard granite&quartz porphyry&siliceous schist, hard quartz,  the hardest sandstone &limenstone rock f=15The best or                 high end qualityIIIvery hardcompact granite, very hard sandstone&limestone, quartz vein, hard conglomerate, very hard iron oref=10High end or NormalIIIavery hardhard sandstone, limestone, marble,  dolomite,  pyrite ore, not hard granitef=8Normal IVhardnormal sandstone, iron oref=6Normal IVahardSandy shale, shaly sandstonef=5Normal Vmiddel hardhard pelitopsammite, not hard sandstone and limestone, soft  conglomeratef=4Normal
Below is the typical rock photos from the hardest to normal hard for your reference. Just tell us your quarry/rock condition, we will recommend suitable button bit for you, it's easy.

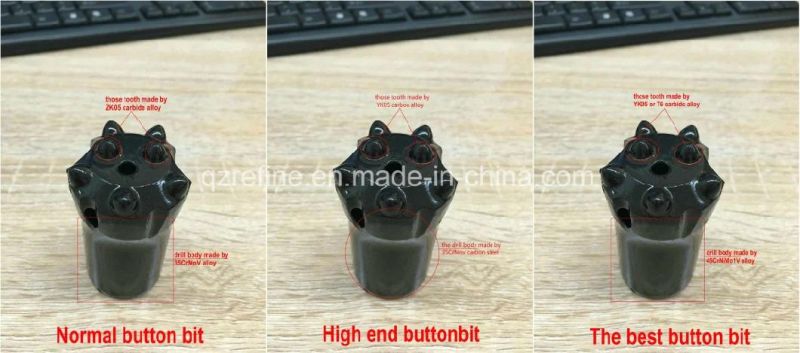

We can  design various Carbide Alloy Drill Bit according to your requirements. Below is three differen quality button bit.




Tapered Button bit connection:  Drill bit diameter    Taper(°)   (mm)(in)281  3/326,7301  3/166,7321 1/46,7,11,12341 11/326,7,11,12351  3/86,7,11,12361 13/326,7,11,12381  1/26,7,11,12401  9/166,7,11,12411 5/86,7,11,12421 21/326,7,11,12431 11/166,7,11,12451 3/46,7,11,12501 31/326,7,11,12602 3/86,7,11,12
Thread button bit connection:Drill bit diameterThread standard(mm)(in)351  3/8R22 R25 361 13/32R22 R25 R28381  1/2R22 R25 R28 R32431 11/16 R25 R28 R32451 3/4 R25 R28 R32481  7/8R32512R32642  1/2R38 T38763R38 T38 T45893  1/2R38 T38 T45 T511024T45 T51 ST58 SD601154  1/2T51 ST58 SD601275T51 ST58 SD601405  1/2T51 ST58 SD601526T51 ST58 SD60  we can guarantee all our product:
(1) Direct factory wholesale price, price is cheaper than trading companies.
(2) Strict Quality Control Department, each piece bit need to be checked.
(3) Accept custom order. can special make for you.
(4)  Focus on the quality.We seek long-term interest.
(5)Welcome small orders, our Min Quantity Order is 1 piece.
(6) All bit are made by skilled workers and advanced technology, we have more than 20 years' experiences, so you must be satisfied with our super quality.

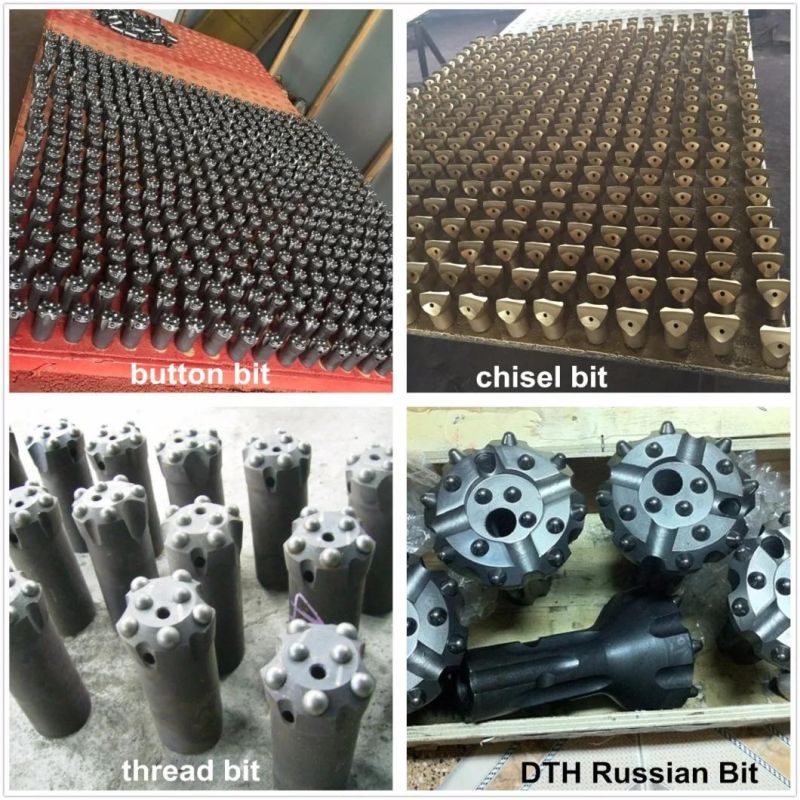

Our superior products (taper button bit, taper drill rod, thread button bit and thread drill rod)


FAQ Collection:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
