• Model NO.：971
• Steel Type：HSS M2
• Craftsmanship：Fully Ground
• Flute Type：Tapping Threaded
• Drilling Head：125 Degrees Split Point
• Marking：Laser Marking
• Surface Treatment：Titanium Coated
• Shank Type：DIN6.35e
• Transport Package：Blister, Skin, Sandwich, Color Paper Hanger, Paper
• Specification：3mm to 10mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：6800000PCS,Year

Basic Info.

Model NO. 971 Steel Type HSS M2 Craftsmanship Fully Ground Flute Type Tapping Threaded Drilling Head 125 Degrees Split Point Marking Laser Marking Surface Treatment Titanium Coated Shank Type DIN6.35e Transport Package Blister, Skin, Sandwich, Color Paper Hanger, Paper Specification 3mm to 10mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 6800000PCS/Year

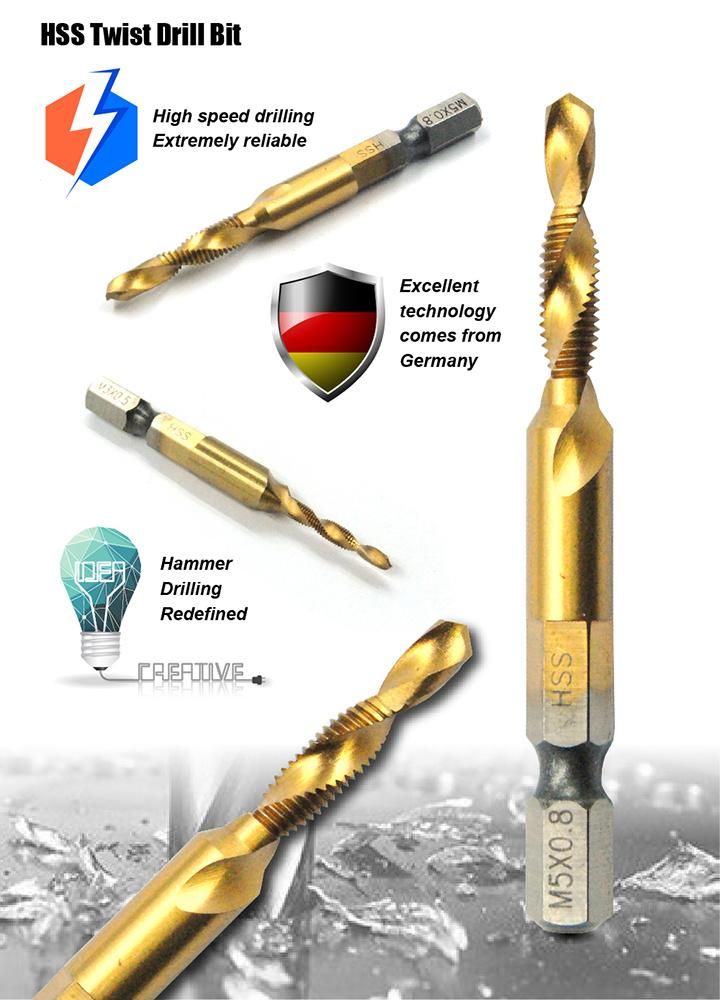

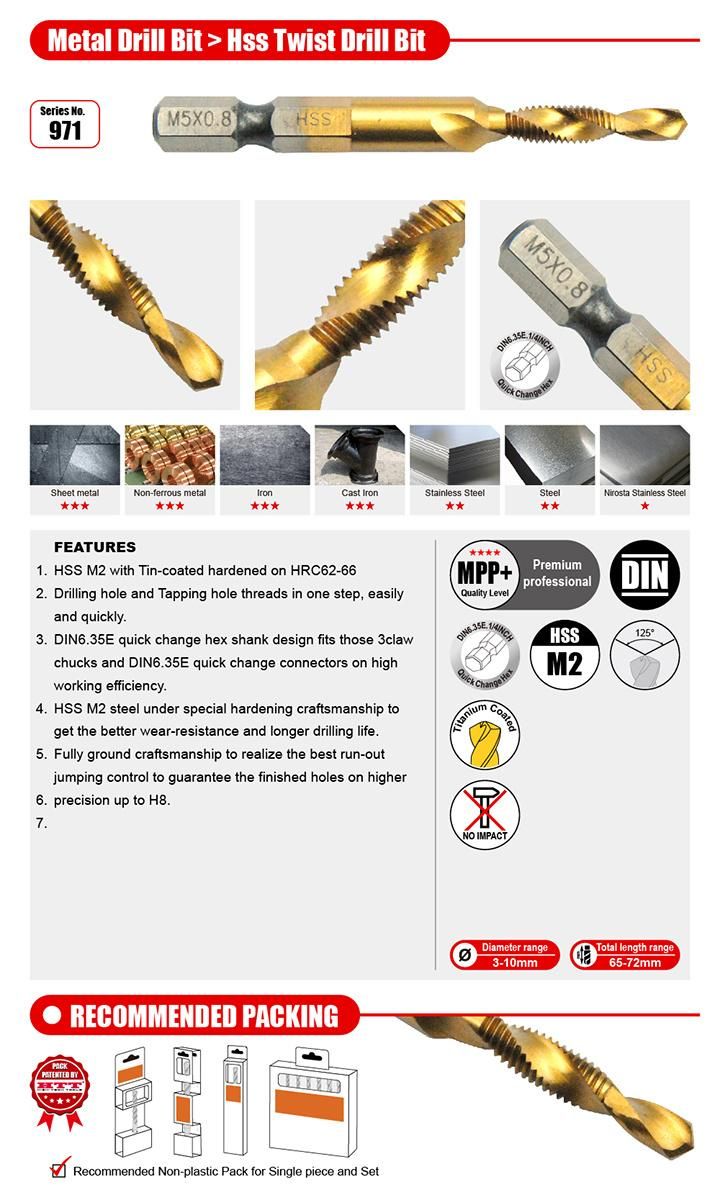

Product Description

*For use in alloyed and unalloyed steels up to 900 N/mm2 tensile strength, sheet metal and thin-walled profile material(pipes and without pre-punching), where exact and clean drilling is required.

*Special designed pilot point penetrates material faster and allows precise drilling on curved surfaces.

* Optimized flute geometry specially ground shoulder cutting flutes for milling exact circular holes with clean edges.

* Core reinforcement 2x longer life, 2x stronger core. Constantly increasing core diameter in the direction of the shaft for increased durability. Gives maximum fracture stability.

* DIN6.35E hex shank to fit those quick change connector and power drill chuck under DIN6.35E standard.



*Other special sizes are also available on the customers' special request.

Item Number	Diameter x Thread size(mm)	Overall Length(mm)	Tip point angle(degrees)
971.0305065	M3 x 0.5	65	125
971.0407065	M4 x 0.7	65	125
971.0508069	M5 x 0.8	69	125
971.0610069	M6 x 1.0	69	125
971.0812572	M8 x 1.25	72	125
971.1015072	M10 x 1.5	72	125
