Supreme Quality 2 Cutter Wood Self-Feed Bit 7/16" Quick Change Hex Shank for Wood Timber Auger Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN, ANSI
- Length:115.7mm
- Type:Core Drill Bit
- Material:High Carbon Steel
- Usage:Wood Drilling
Base Info
- Model NO.:326-M
- Steel Type:T Steel
- Surface Treatment:Color Painted
- Self Feeding:Replacement Screw Tip
- Shank Type:7,16 Quick Change Hex Shank
- Cutter:Double Cutter Style with Saw Teeth
- Accessories:Screwed Tip, Fixing Screw, Allen Key
- Transport Package:Box, PVC Bag, Blister, Sandwich Blister, Tube
- Specification:25mm to 117mm diameters
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:2400000,Year
Description
Basic Info.
Model NO. 326-M Steel Type T Steel Surface Treatment Color Painted Self Feeding Replacement Screw Tip Shank Type 7/16 Quick Change Hex Shank Cutter Double Cutter Style with Saw Teeth Accessories Screwed Tip, Fixing Screw, Allen Key Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 25mm to 117mm diameters Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description

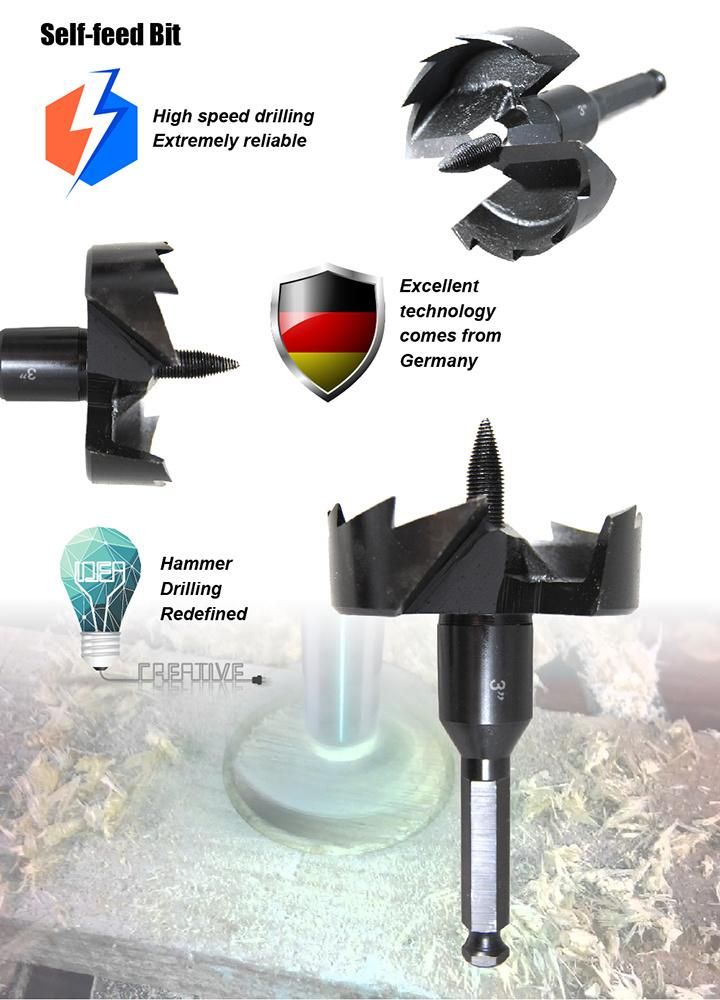

* Self-feed Wood Drill Bit, 7/16 quick-change hex shank, with the replacement screwed tip, a double cutter with saw teeth.* Professional drilling holes in various rough and soft wood, plywood, chipboard, plastic board, laminated wood, etc.
* It can drill ahead by itself, with no pressure.
* Casting type of cutter head
Other special sizes are also available on the customers' special requests.
Item Number | Diameter(mm) | Overall Length(mm) | Middle Shank Diameter(mm) | Distance of Hex Shank Subtense(mm) | Cutter Type |
326.1025012 | 25 | 115.7 | 12.7 | 11.11 | Double Cutter |
326.1028012 | 28 | 115.7 | 12.7 | 11.11 | Double Cutter |
326.1032012 | 32 | 115.7 | 12.7 | 11.11 | Double Cutter |
326.1035012 | 35 | 115.7 | 12.7 | 11.11 | Double Cutter |
326.1038012 | 38 | 115.7 | 15 | 11.11 | Double Cutter |
326.1045012 | 45 | 115.7 | 15 | 11.11 | Double Cutter |
326.1050012 | 50 | 115.7 | 15 | 11.11 | Double Cutter |
326.1054012 | 54 | 115.7 | 15 | 11.11 | Double Cutter |
326.1057012 | 57 | 115.7 | 15 | 11.11 | Double Cutter |
326.1065012 | 65 | 115.7 | 17.5 | 11.11 | Double Cutter |
326.1076012 | 76 | 115.7 | 19 | 11.11 | Double Cutter |
326.1092012 | 92 | 115.7 | 20.5 | 11.11 | Double Cutter |
326.1117012 | 117 | 115.7 | 24 | 11.11 | Double Cutter |
