• Model NO.：DHD3.5-105mm
• Application：DTH Drilling, Coal Mining, Quarrying
• Carbide Type：Yk05
• Diameter：105mm
• Transport Package：Wooden Box
• Specification：3"
• Trademark：JEAO
• Origin：China
• HS Code：84314999

Basic Info.

Model NO. DHD3.5-105mm Application DTH Drilling, Coal Mining, Quarrying Carbide Type Yk05 Diameter 105mm Transport Package Wooden Box Specification 3" Trademark JEAO Origin China HS Code 84314999

Product Description

Product Description

Introduction:

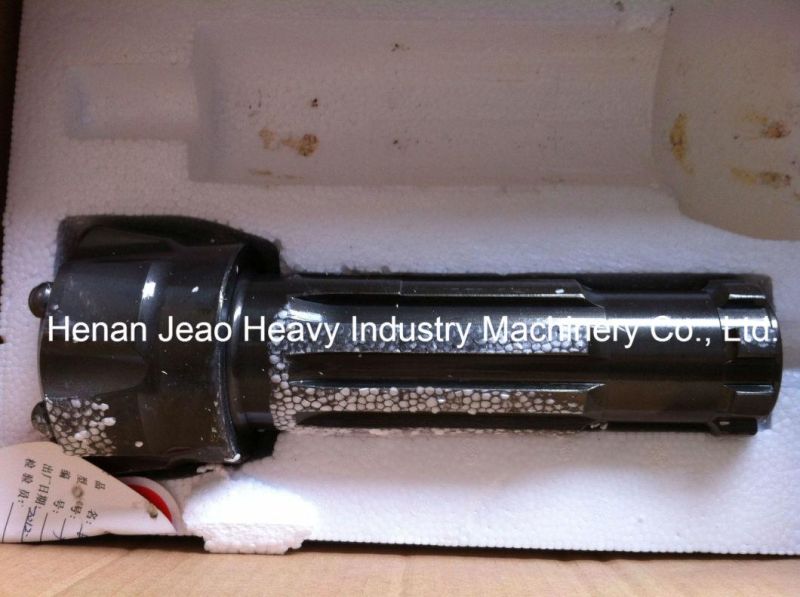

It is a kind of high air pressure dth drill bit ,our newest design.It is also one of the most advanced DTH drill bit in the world.

Application:

Using mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.

Our Advantages:

1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.
3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

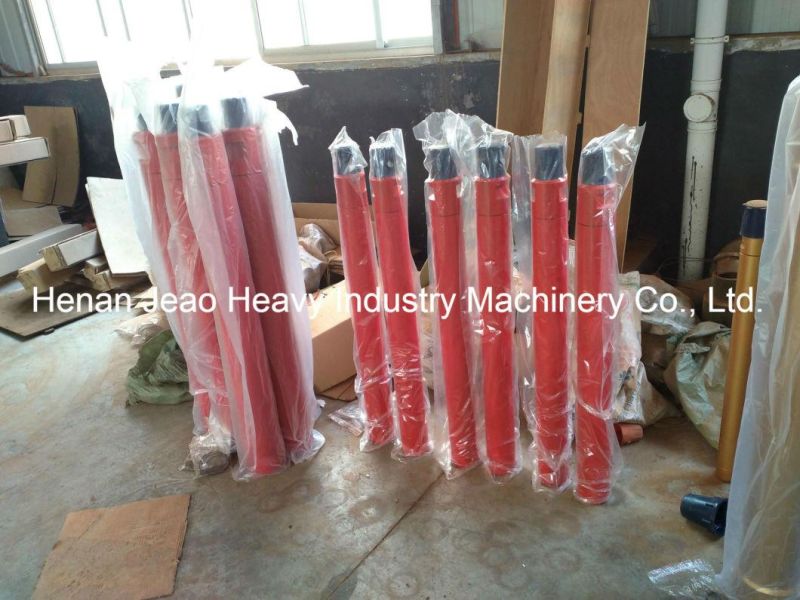

DTH hammer:

3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80

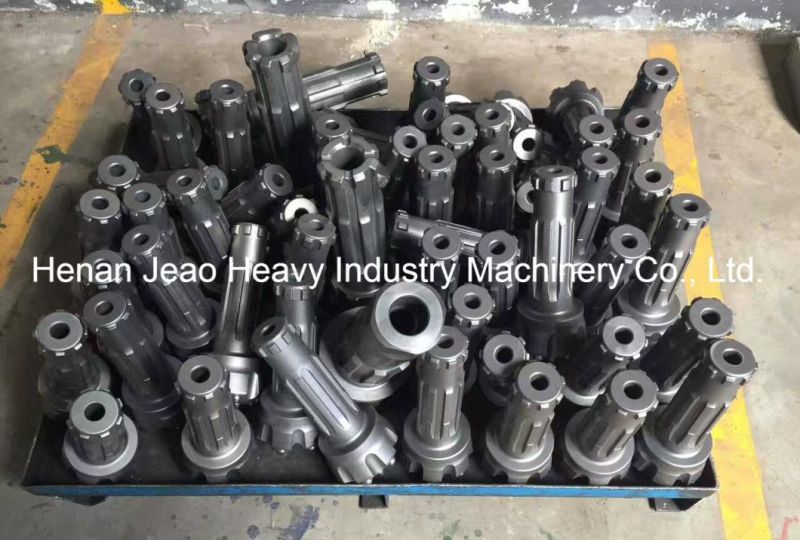

DTH hammer bits:

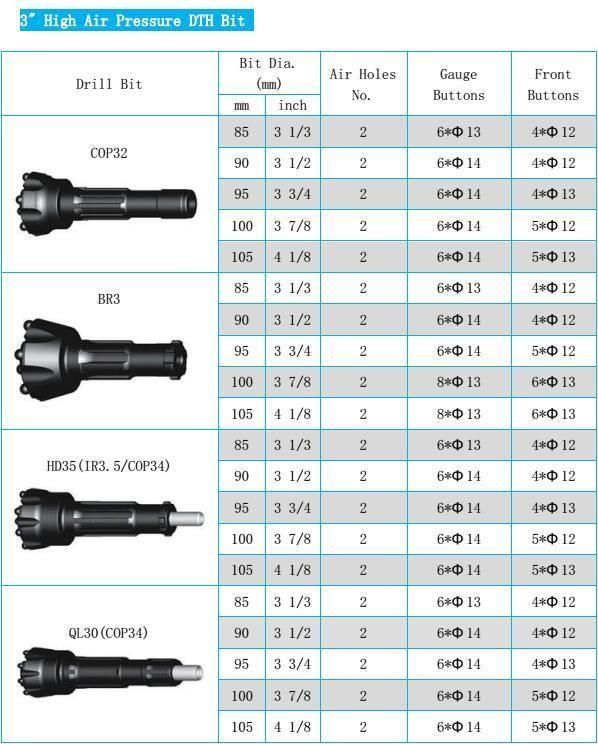

3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80

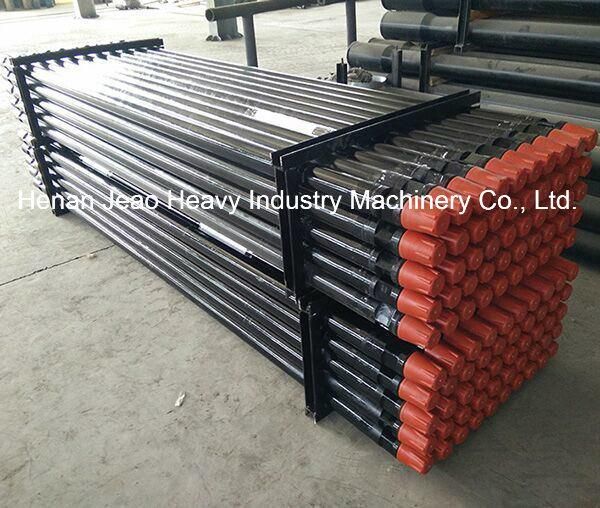

DTH rod range:

Drill rods diameter range: 60mm,64mm 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"
