Pgm Premium Quality Tct Concrete Drill Bit O Flute DIN6.35e Quick Change Hex Hank for Various Concrete Brick Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN, AISI
- Length：70mm to 150mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3110
- Carbide Type：Virgin Yg9
- Steel Shaft Type：40cr
- Flute Type：O
- Cutting Head：Splus W Type
- Marking：Stamped Marking
- Surface Treatment：Shot-Peened
- Shank Type：DIN6.35e
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：3mm to 16mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3110 Carbide Type Virgin Yg9 Steel Shaft Type 40cr Flute Type O Cutting Head Splus W Type Marking Stamped Marking Surface Treatment Shot-Peened Shank Type DIN6.35e Welding Type AVS. (Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 16mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

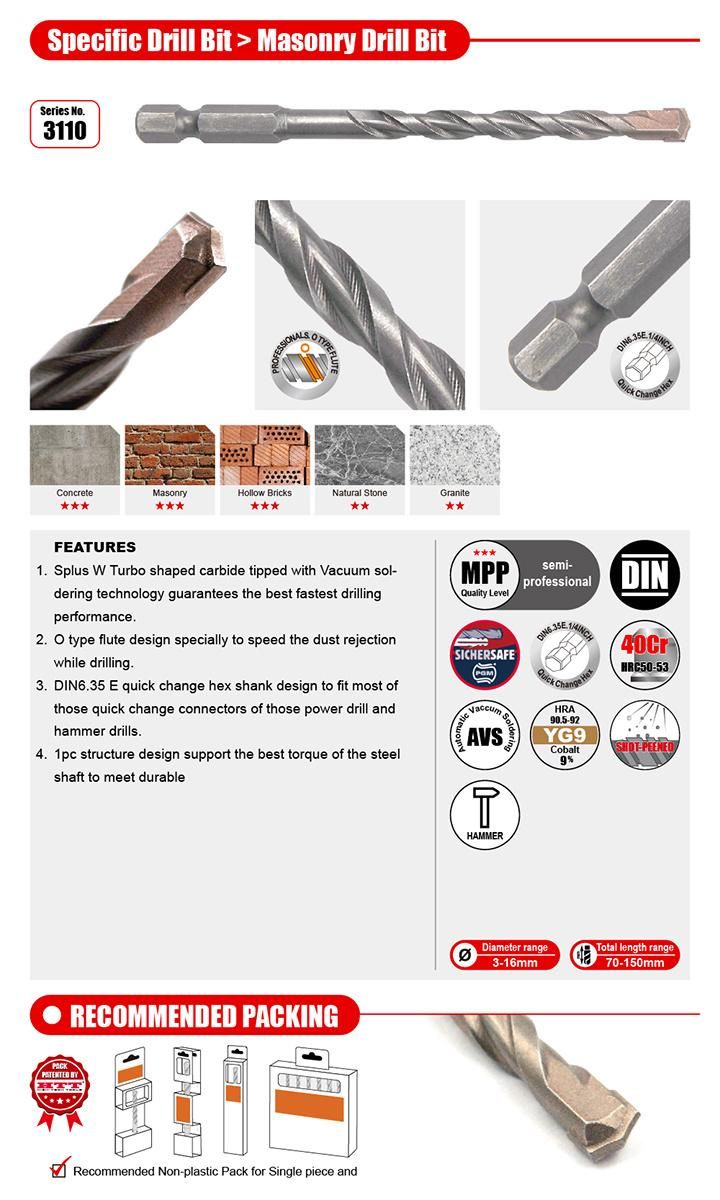

*PGM Certificated Premium Quality Concrete Drill Bit DIN6.35E shank for drilling concrete brick block cement.*Virgin YG9 carbide tip to be with extra high wear-resistance for concrete and masonry drilling work
*O type of flute 3DMAX design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*DIN6.35E quick change hex shank increase the grip power to avoid slip while drilling work and to fit the DIN6.35E quick change connectors and power drill chucks.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*PGM certificated quality and standard sizes to meet the industrial application demands.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 3110.03030070 | 3 | 30 | 70 |
| 3110.04035075 | 4 | 35 | 75 |
| 3110.05055100 | 5 | 55 | 100 |
| 3110.05555100 | 5.5 | 55 | 100 |
| 3110.06060100 | 6 | 60 | 100 |
| 3110.06560100 | 6.5 | 60 | 100 |
| 3110.07060100 | 7 | 60 | 100 |
| 3110.08080120 | 8 | 80 | 120 |
| 3110.09080120 | 9 | 80 | 120 |
| 3110.10080120 | 10 | 80 | 120 |
| 3110.12110150 | 12 | 110 | 150 |
| 3110.13110150 | 13 | 110 | 150 |
| 3110.14110150 | 14 | 110 | 150 |
| 3110.16110150 | 16 | 110 | 150 |
