• Model NO.：3410
• Carbide Tip Type：Ql Yg6X
• Steel Shaft Type：40cr
• Flute Type：U
• Cutting Head：Diamond Ground Multi-Edges
• Marking：Stamped
• Surface Treatment：Sandblasted
• Shank Type：Cylindrical
• Welding Type：Hfw. (High Frequency Welding)
• Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
• Specification：3mm to 14mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：4800000PCS,Year

Basic Info.

Model NO. 3410 Carbide Tip Type Ql Yg6X Steel Shaft Type 40cr Flute Type U Cutting Head Diamond Ground Multi-Edges Marking Stamped Surface Treatment Sandblasted Shank Type Cylindrical Welding Type Hfw. (High Frequency Welding) Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 14mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/Year

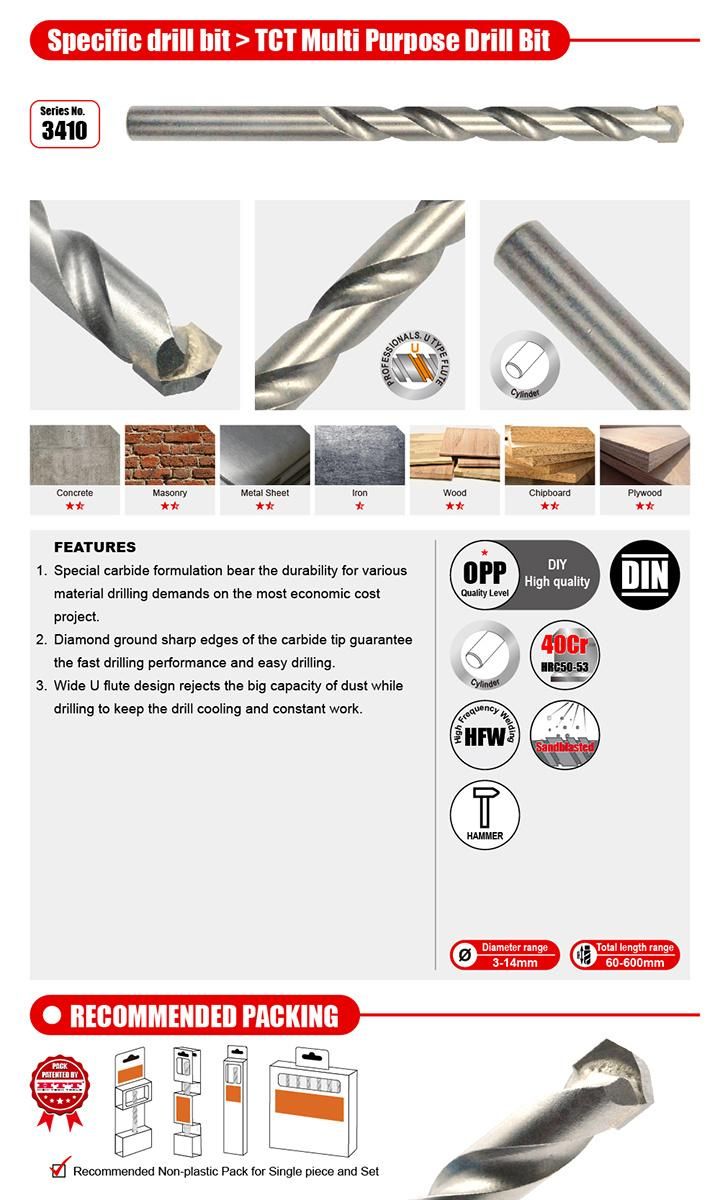

Product Description

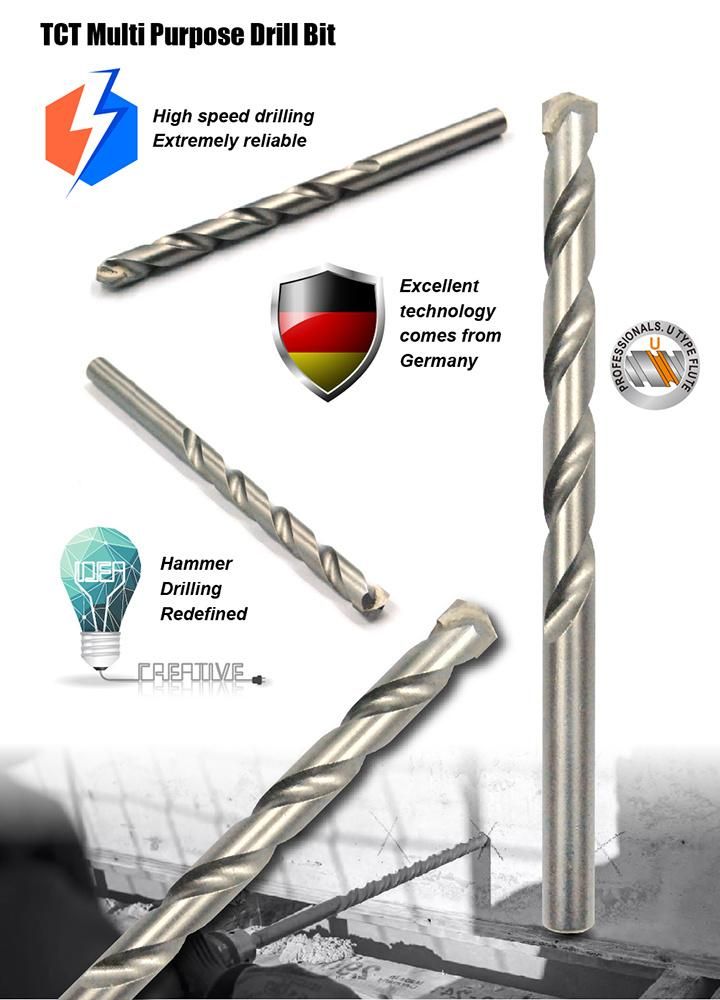

* TCT All purpose Drill Bit Cylindrical Shank, High Frequency Welded, Diamond Ground Tip,  Sandblasted surface

* Carbide tips are in super micro grain alloy on extra higher hardness with the high wear-resistance for various materials drilling such as alloy steel, non-alloy steel, metal , iron, wood, concrete, chipboard, plywood, plaster, plastic, fiber board, brick, block, stone, etc.

* U flute of wider design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for an easy longer-time drilling job.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.




*Other special sizes are also available on the customers' special request.
**Note: Diameter 14mm to 25mm ones are with the reduced cylinder shank.

Item No.	Diameter(mm)	Working Length(mm)	Overall Length(mm)	Shank Diameter(mm)
3410.030060	3	30	60	2.8
3410.030070	3	40	70	2.8
3410.030075	3	45	75	2.8
3410.030085	3	45	152	2.8
3410.035060	3.5	30	60	3.1
3410.035070	3.5	40	70	3.1
3410.035075	3.5	45	75	3.1
3410.035085	3.5	45	152	3.1
3410.040070	4	40	70	3.75
3410.040075	4	45	75	3.75
3410.040085	4	50	105	3.75
3410.040150	4	110	152	3.75
3410.045070	4.5	40	70	3.75
3410.045075	4.5	45	75	3.75
3410.045085	4.5	50	85	3.75
3410.050085	5	45	85	4.5
3410.050095	5	50	115	4.5
3410.050150	5	110	152	4.5
3410.050250	5	200	250	4.5
3410.050300	5	250	300	4.5
3410.050400	5	260	400	4.5
3410.050500	5	360	500	4.5
3410.055095	5.5	50	95	5.5
3410.055150	5.5	110	150	5.5
3410.060100	6	60	100	5.5
3410.060150	6	110	120	5.5
3410.060200	6	130	200	5.5
3410.060300	6	230	300	5.5
3410.060400	6	340	400	5.5
3410.060600	6	460	600	5.5
3410.065100	6.5	60	120	6
3410.065150	6.5	110	152	6
3410.065200	6.5	130	200	6
3410.065300	6.5	230	300	6
3410.065400	6.5	340	400	6
3410.070100	7	60	100	6.5
3410.070150	7	110	150	6.5
3410.070300	7	230	300	6.5
3410.070400	7	340	400	6.5
3410.070500	7	360	500	6.5
3410.080120	8	80	135	7.6
3410.080150	8	110	152	7.6
3410.080200	8	130	200	7.6
3410.080300	8	230	300	7.6
3410.080400	8	340	400	7.6
3410.080600	8	460	600	7.6
3410.090120	9	80	152	7.6
3410.100120	10	80	120	9
3410.100150	10	110	152	9
3410.100200	10	135	200	9
3410.100300	10	230	300	9
3410.100400	10	340	400	9
3410.100600	10	460	600	9
3410.110130	11	80	135	9.98
3410.110160	11	90	152	9.98
3410.120130	12	80	130	9.98
3410.120160	12	90	150	9.98
3410.120200	12	150	200	9.98
3410.120300	12	230	300	9.98
3410.120400	12	340	400	9.98
3410.120600	12	460	600	9.98
3410.130150	13	90	135	9.98
3410.130200	13	135	152	9.98
3410.140150	14	90	150	10
3410.140200	14	135	200	10
3410.140260	14	200	260	10
3410.140300	14	230	300	10
3410.140400	14	340	400	10
3410.140600	14	460	600	10
