• Model NO.：6117
• Carbide Type：Virgin Yg6ax
• Steel Type：40cr
• Flute Type：W5
• Cutting Head：Wave Turbo Step Diamond Ground
• Marking：Laser Marking
• Surface Treatment：Sandblasted
• Shank Type：Cylindrical & Tri-Flat
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Box, PVC Bag, Blister, Sandwich Blister, Tube
• Specification：3mm to 16mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：5800000PCS,Year

Basic Info.

Model NO. 6117 Carbide Type Virgin Yg6ax Steel Type 40cr Flute Type W5 Cutting Head Wave Turbo Step Diamond Ground Marking Laser Marking Surface Treatment Sandblasted Shank Type Cylindrical & Tri-Flat Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 5800000PCS/Year

Product Description

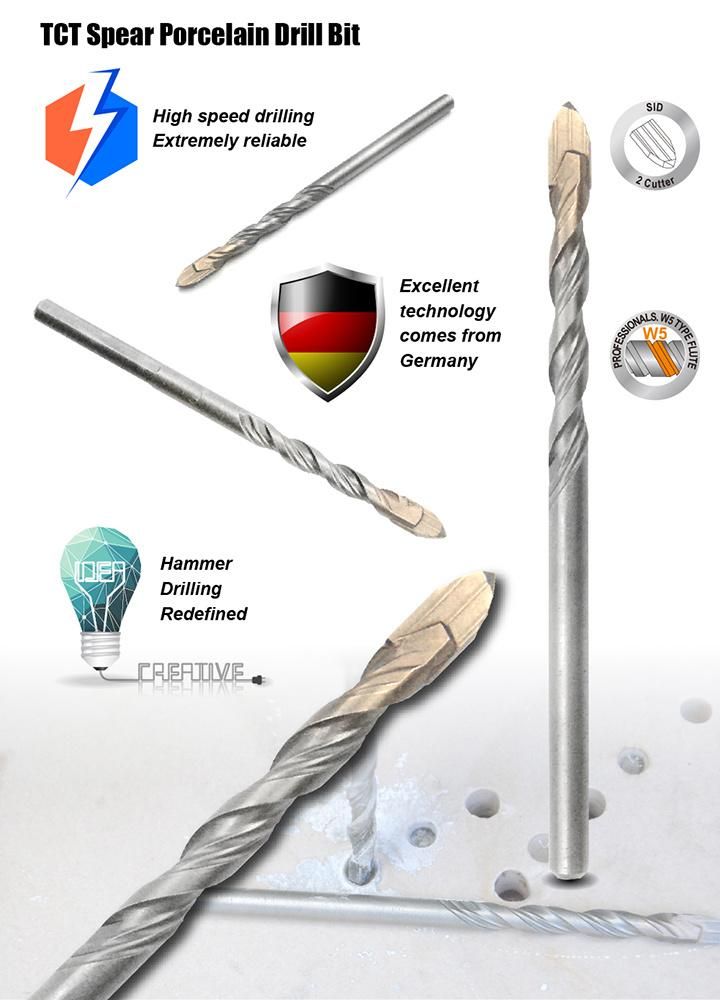

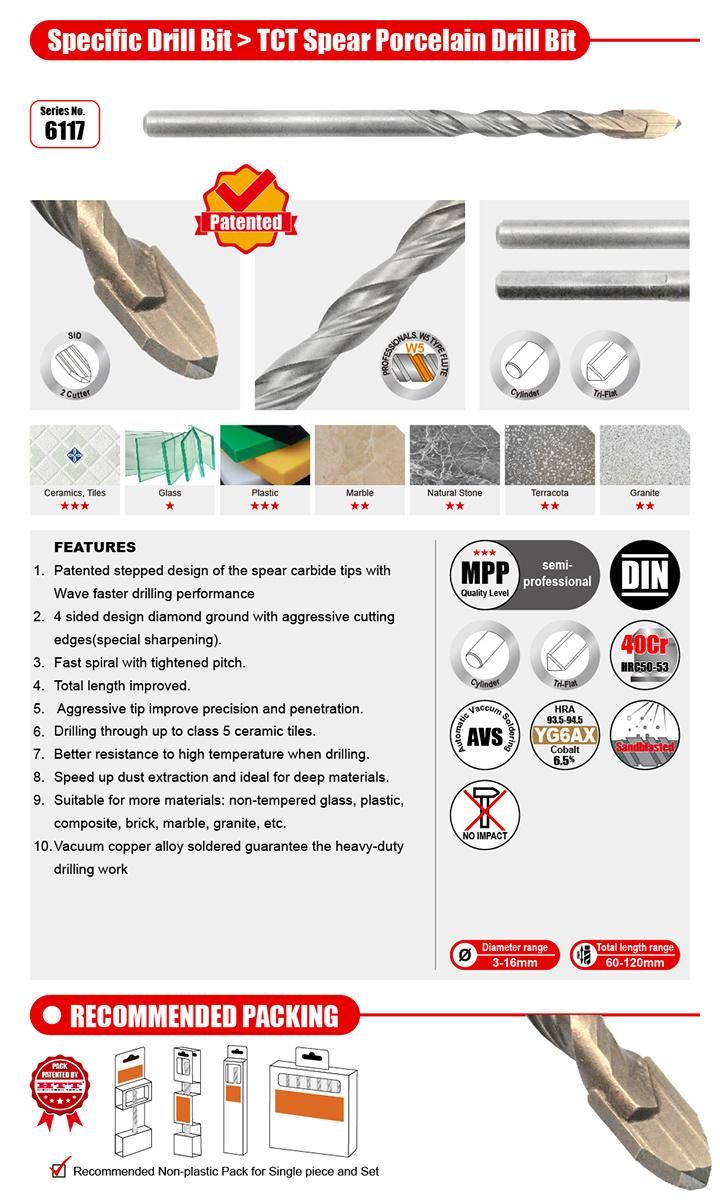

*Patented TCT Spear Porcelain and Stone Drill Bit DIN standard for various glass, tile, ceramic, porcelain and stoneware drilling.

*Patented Wave Turbo Carbide designs increase the drilling sharpness and extra wear-resistance capability of the carbide performance, which allows the carbide tip bear longer drilling life and more heavy duty in the extreme rough porcelain, ceramic and stone drilling.

*Hardened CrV steel shaft controlled under the high precision run-out performance for the precise and more stable drilling to avoid the cracks of the ware edges.

*Water-feeding is strongly recommended to make more smooth section of the holes in the tile, ceramic, porcelain, glass.

*Please check the correct rotary speed for the different diameter drills' applications without impact added.



*Other special sizes are also available on the customers' special request.

Item Number	Diameter(mm)	Flute length(mm)	Overall Length(mm)	Shank Diameter(mm)	Shank Type
6117.030060	3	30	60	2.8	Cylindrical
6117.030070	3	35	70	2.8	Cylindrical
6117.030075	3	35	75	2.8	Cylindrical
6117.030080	3	35	85	2.8	Cylindrical
6117.040070	4	40	75	3.75	Cylindrical
6117.040080	4	40	85	3.75	Cylindrical
6117.040090	4	40	90	3.75	Cylindrical
6117.050075	5	40	75	4.5	Cylindrical
6117.050085	5	40	85	4.5	Cylindrical
6117.050095	5	40	95	4.5	Cylindrical
6117.055085	5.5	40	75	5.5	Cylindrical
6117.055095	5.5	40	85	5.5	Cylindrical
6117.060075	6	40	75	5.5	Tri-flat
6117.060085	6	40	85	5.5	Tri-flat
6117.060090	6	40	95	5.5	Tri-flat
6117.060100	6	45	100	5.5	Tri-flat
6117.065075	6.5	40	75	6	Tri-flat
6117.065085	6.5	40	85	6	Tri-flat
6117.065095	6.5	40	95	6	Tri-flat
6117.065100	6.5	45	100	6	Tri-flat
6117.070075	7	40	75	6	Tri-flat
6117.070085	7	40	85	6	Tri-flat
6117.070095	7	40	95	6	Tri-flat
6117.070100	7	45	100	6	Tri-flat
6117.080085	8	40	85	7.6	Tri-flat
6117.080095	8	40	95	7.6	Tri-flat
6117.080100	8	45	100	7.6	Tri-flat
6117.080120	8	50	120	7.6	Tri-flat
6117.090095	9	40	95	8.5	Tri-flat
6117.090100	9	45	100	8.5	Tri-flat
6117.100085	10	40	85	9	Tri-flat
6117.100095	10	40	95	9	Tri-flat
6117.100100	10	45	100	9	Tri-flat
6117.100120	10	50	120	9	Tri-flat
6117.110095	11	40	95	9	Tri-flat
6117.110100	11	45	100	9	Tri-flat
6117.120095	12	40	95	9.98	Tri-flat
6117.120100	12	45	100	9.98	Tri-flat
6117.120120	12	50	120	9.98	Tri-flat
6117.130100	13	45	100	9.98	Tri-flat
6117.130120	13	50	120	9.98	Tri-flat
6117.140100	14	45	100	Reduced on 10	Tri-flat
6117.140120	14	50	120	Reduced on 10	Tri-flat
6117.160120	16	50	120	Reduced on 10	Tri-flat
