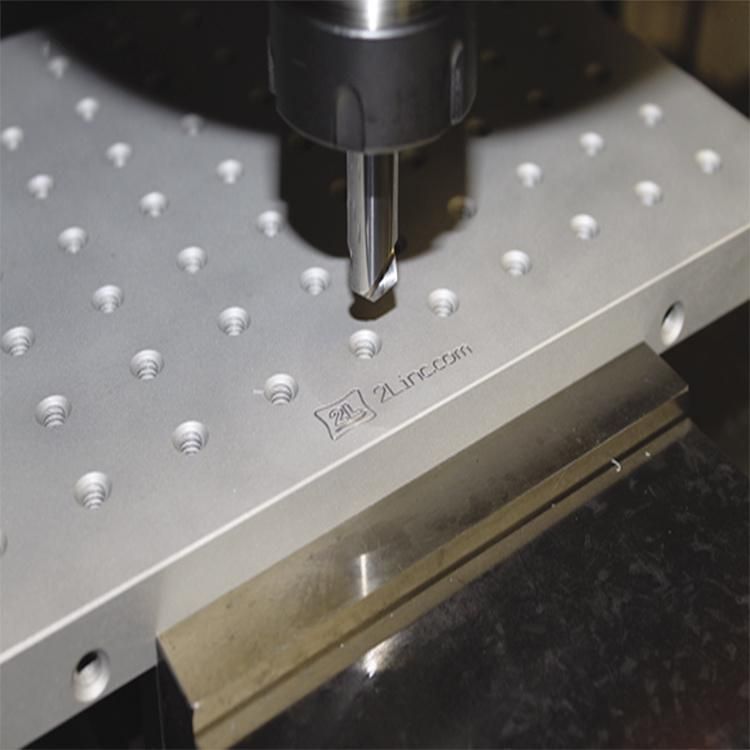

Titanium Coated HSS Center Drill Bit (SED-CDT)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling
  • Surface Finish：Tin-Coated

Base Info

  • Model NO.：SED-CDT
  • Manufacturing Art：Fully Ground or Milled
  • Diameter Size：1mm-10mm
  • Packaging：PVC,Box,Set Case
  • Min Qty：100PCS
  • Transport Package：PVC, Sealed Plastic Bag, Plastic Box, Set
  • Specification：SGS
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：50, 000PCS,Month

Description

Item No.Metric Size: ( DIN333 Type A, Plain Type ) Drill Dia.Body Dia.Flute LengthOverall LengthCDT11.0mm3.151.931.5CDT1-1/41.25mm3.152.231.5CDT1.61.6mm42.835.5CDT22.0mm53.340CDT2-1/22.5mm6.34.145CDT3153.15mm84.950CDT44.0mm106.256CDT55.0mm12.57.563CDT636.3mm169.271CDT88.0mm2011.580CDT1010.0mm2514.2100Inch Size: ( Plain Type )Size #Drill Dia.Body Dia.Flute LengthOverall LengthCDT3/643/64"1/8"3/64"1-1/4"CDT5/665/64"3/16"5/64"1-7/8"CDT7/647/64"1/4"7/64"2"CDT1/81/8"5/16"1/8"2-1/8"CDT9/649/64"3/8"9/64"2-1/2"CDT3/163/16"7/16"3/16"2-3/4"CDT7/327/32"1/2"7/32"3"CDT1/41/4"5/8"1/4"3-1/4"CDT5/165/16"3/4"5/16"3-1/2"CDT11/3211/32"7/8"11/32"3-5/8"CDT3/83/8"1"3/8"3-3/4"Titanium Coated HSS Center Drill Bit (SED-CDT)
