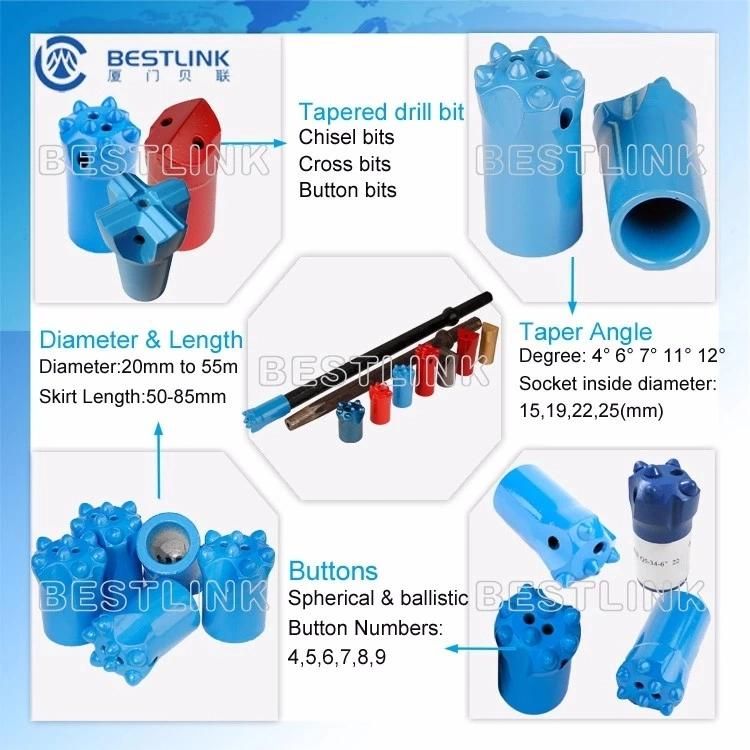

Tungsten Carbide Small Hole Drilling Button Bits for Rock Exploitation
Xiamen Bestlink Factory Co., Ltd.- Length：Taper-length
- Type：Tpaer Drill Bit
- Material：Tungsten Carbide
- Usage：Ore Mining
- Drill Bit Models：Chisel Bit,Cross Bit,Button Bit
- Rock Type：Granit, Marble, Sandstone etc
Base Info
- Model NO.：4 46", 6, 7, 11, 12 Taper Degree
- Socket Inside Diameter：15, 19, 22, 25mm
- Applicable：for Rock Drilling, Quarrying, Mining
- Diameter：20-45 Mm
- Button Shape：Spherical,Parabolic
- Compatible：with Rock Drill Y20 Y24 Yt24 Yt28 etc.
- Usable：with Taper Drill Steel Rod
- Delivery Time：Within 25days After Receipt Your Payment by T,T
- Transport Package：Plywood Box, Carton, Wooden Case, etc
- Specification：CE, SGS
- Trademark：BESTLINK
- Origin：Xiamen, China
- HS Code：82071990
- Production Capacity：10000 PCS,Month
Description
Taper degree a=4°,6°,7°,11°,12°; Socket inside d=15,19,22,25mmmm mm 2 20 65 2 23 65 2 25 69 2 28 60 2 30 55 88 2 32 55 64 71 80 2 34 71 80 2 36 74 2 38 74 2 40 74 2 42 74 2 45 74 2
2. Tapered cross bit
Used under any rock drilling condition and mainly used for hard or very hard rock formation because of it's comprehensive adaptability. Compared with taper chisel bits, taper cross bits have a better drilling performance because of carbide tips on cross bits doubled, which means carbides shape are cross type on drill bits. Taper cross bit is mainly used for hard or very hard rock formation.Taper degree a=6 °,7°,11°,12° ; Socket inside d=19,22,25mmmm mm kg 28 71 80 0.19 29 71 80 0.2 30 50 67 71 80 0.3 32 50 67 71 80 0.3 33 71 80 0.32 34 67 71 80 0.34 35 67 71 80 0.35 36 71 80 0.36 38 67 71 80 0.42 40 71 80 0.43 41 71 0.45 42 69 80 0.46 44 80 0.47 45 80 0.5
3. Tapered Button Bits
Comparing with taper chisel and cross bits, button bits have higher technology, much longer primary drilling time and higher drilling efficiency. According to the tungsten carbide insert, button bits can be divided into types of hemispherical, conical and parabolic button, etc.
Button bits with hemispherical button is for high bearing capacity and abrasive resistance while conical button and parabolic button are for high drilling speed and low abrasive resistance.Taper Angle a=4°46″,6 °,7°,11°,12°; Socket inside d=19,22,25mmmm mm pcs kg 28 50 4 0.2 29 50 4 5 6 7 0.2 30 50 80 5 6 7 8 0.2 0.3 32 50 55 71 80 6 7 8 9 0.2 0.22 0.3 33 50 55 71 80 6 7 9 0.2 0.3 0.36 34 50 55 7 8 0.22 0.3 35 55 71 80 4 5 6 7 0.22 0.3 0.37 36 50 55 7 0.3 0.35 37 55 4 6 7 0.3 38 50 55 4 6 7 0.25 0.35 40 50 55 7 0.35 41 50 55 71 4 5 0.35 42 50 6 7 0.4 45 50 55 71 6 7 8 9 0.5
2. Tapered cross bit
Used under any rock drilling condition and mainly used for hard or very hard rock formation because of it's comprehensive adaptability. Compared with taper chisel bits, taper cross bits have a better drilling performance because of carbide tips on cross bits doubled, which means carbides shape are cross type on drill bits. Taper cross bit is mainly used for hard or very hard rock formation.Taper degree a=6 °,7°,11°,12° ; Socket inside d=19,22,25mm
3. Tapered Button Bits
Comparing with taper chisel and cross bits, button bits have higher technology, much longer primary drilling time and higher drilling efficiency. According to the tungsten carbide insert, button bits can be divided into types of hemispherical, conical and parabolic button, etc.
Button bits with hemispherical button is for high bearing capacity and abrasive resistance while conical button and parabolic button are for high drilling speed and low abrasive resistance.Taper Angle a=4°46″,6 °,7°,11°,12°; Socket inside d=19,22,25mm
